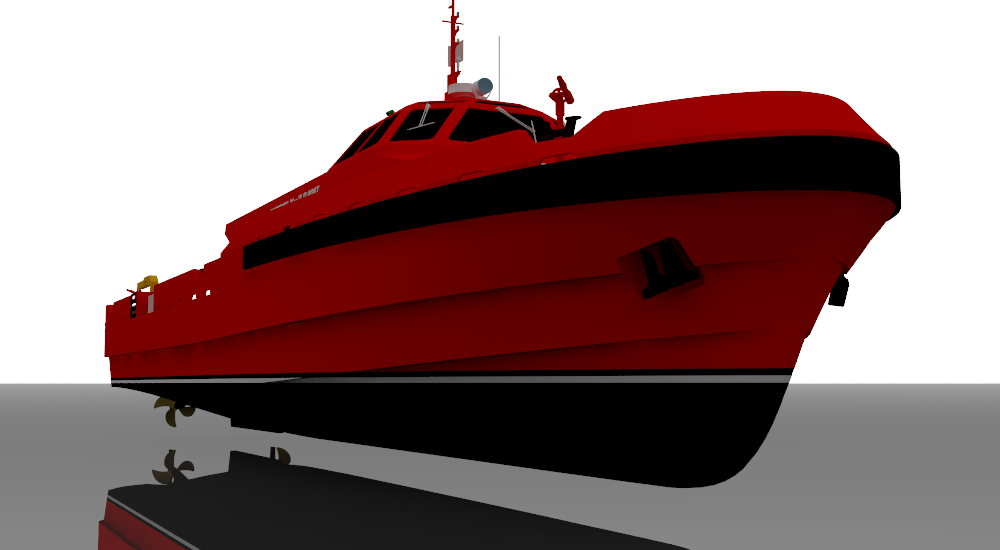

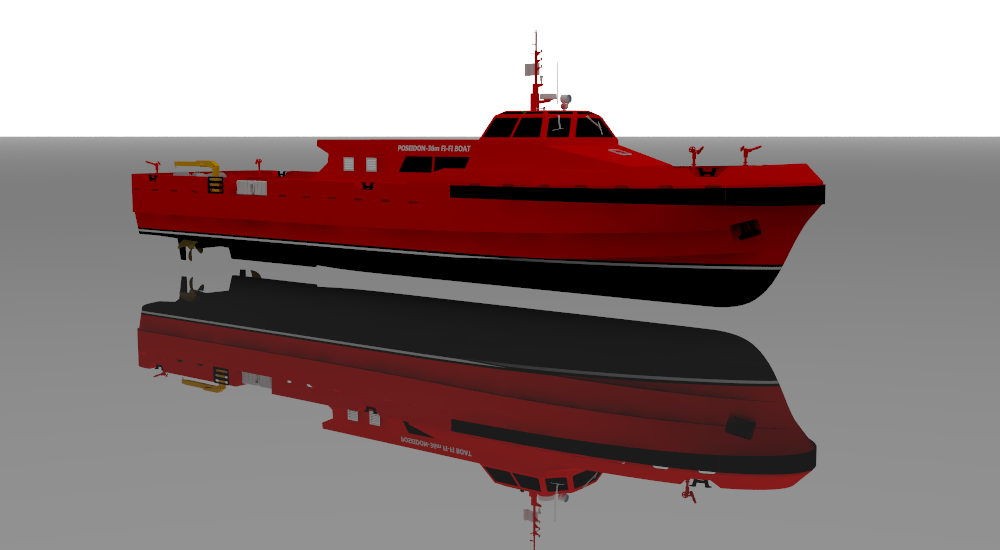

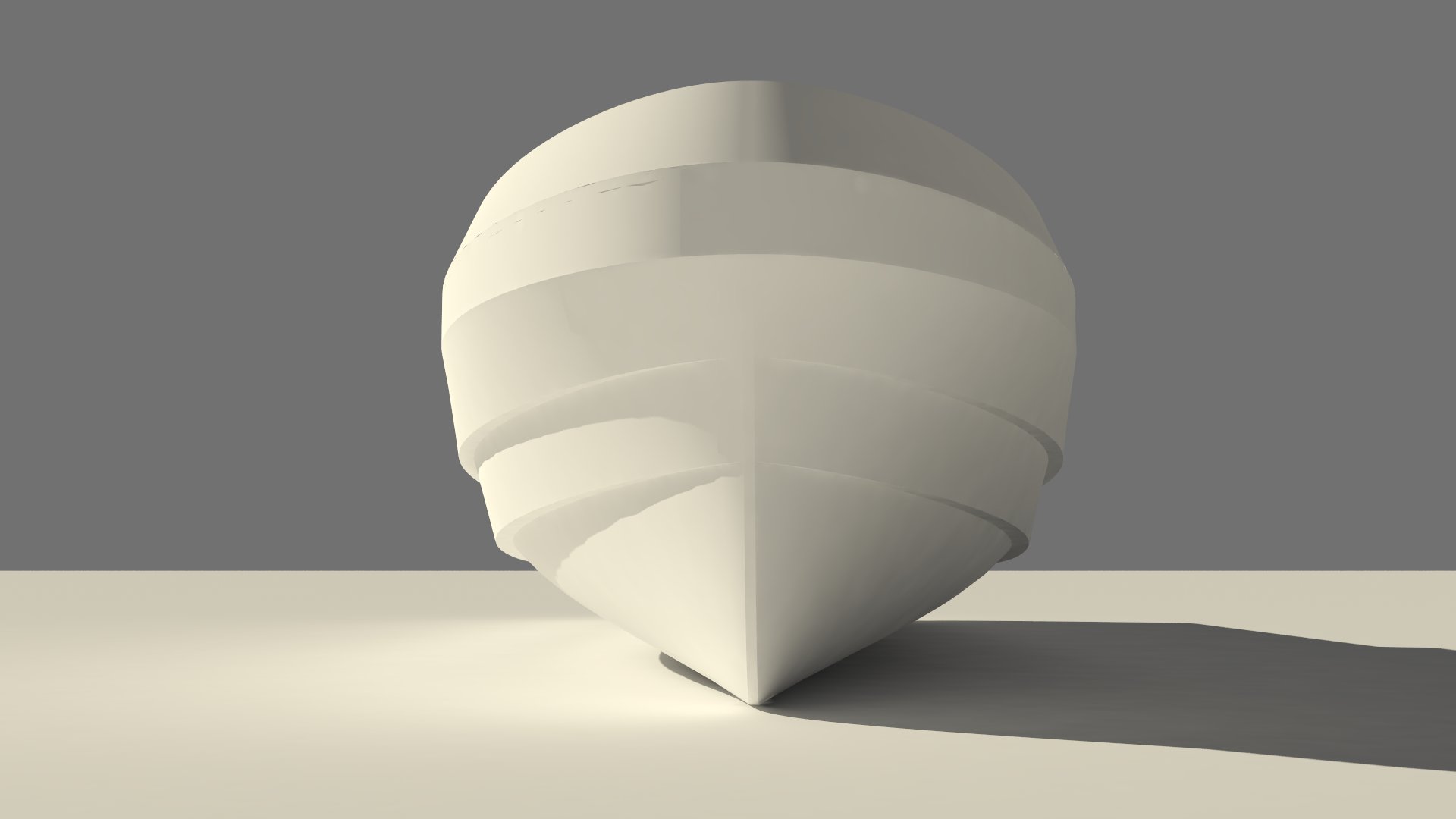

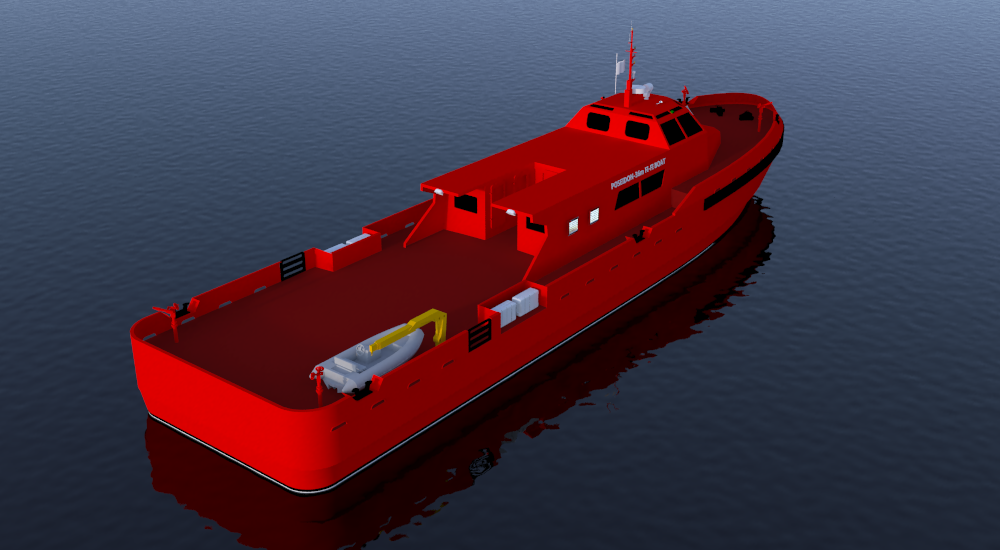

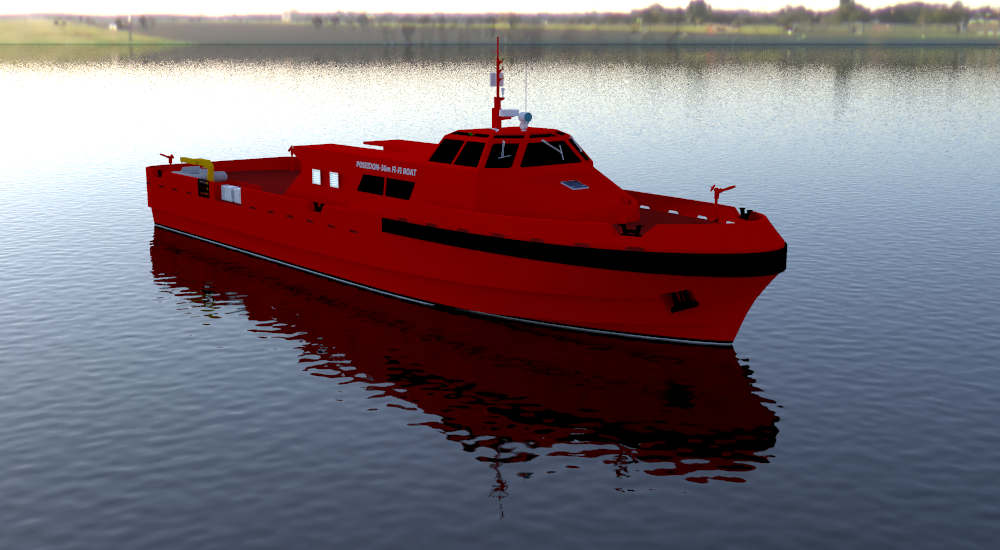

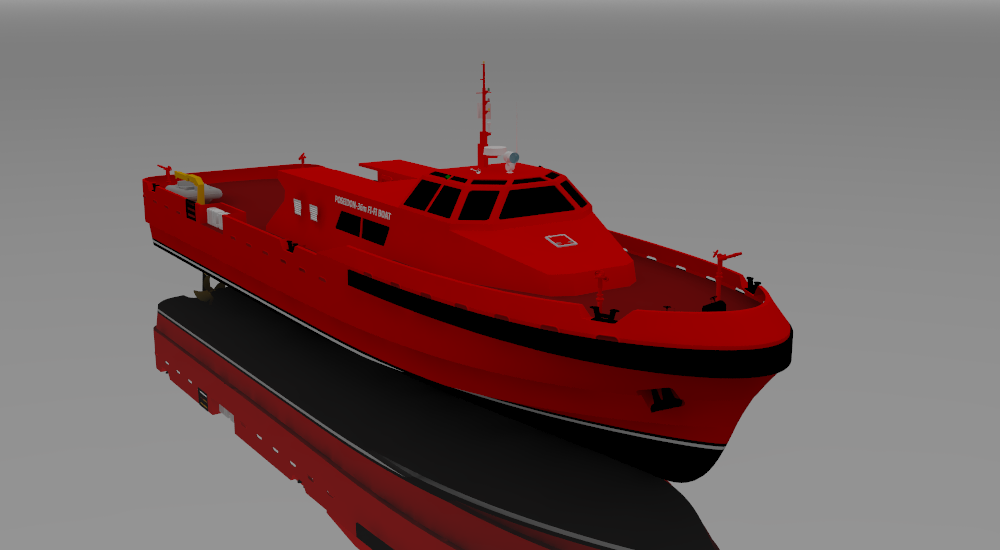

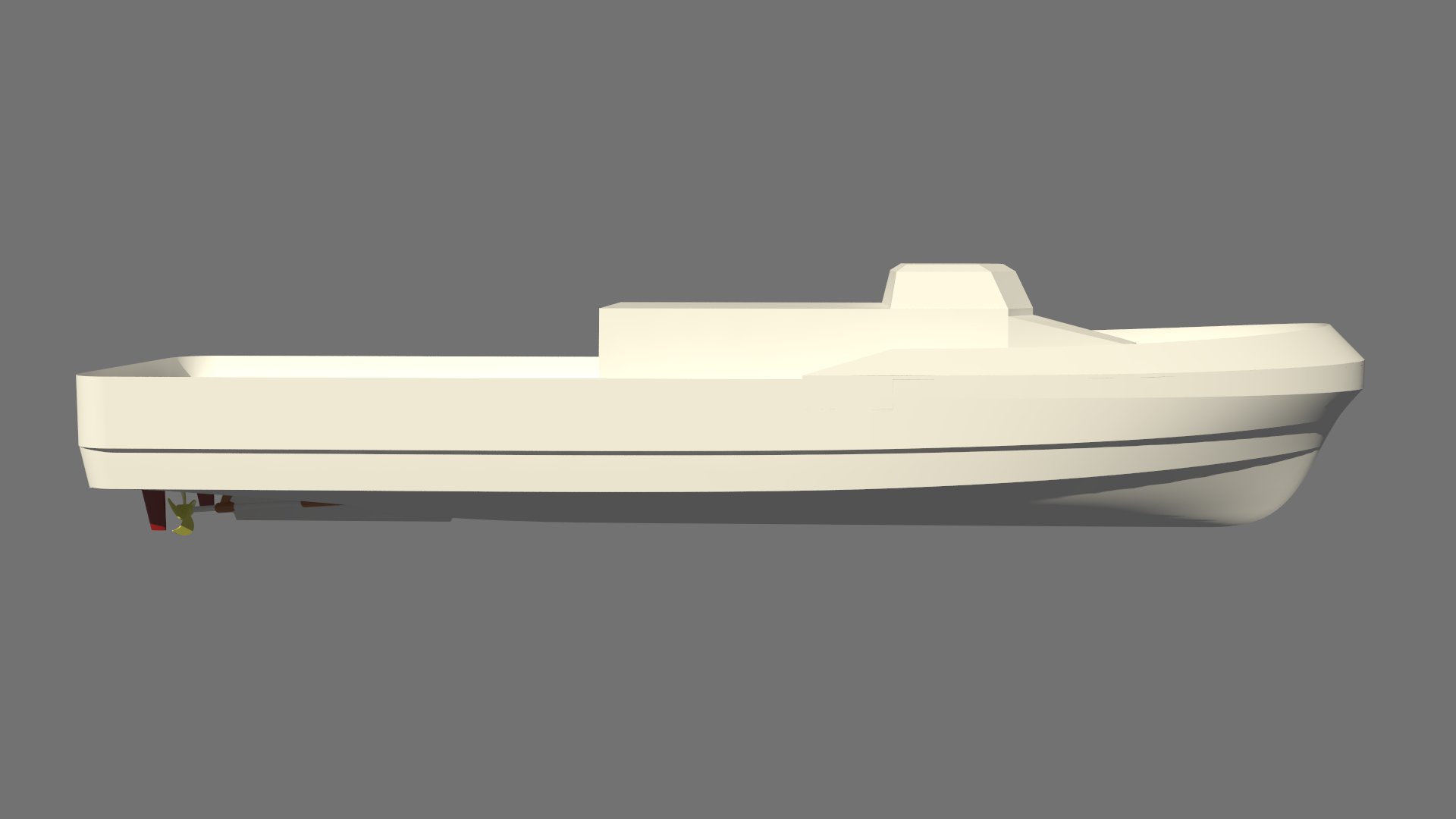

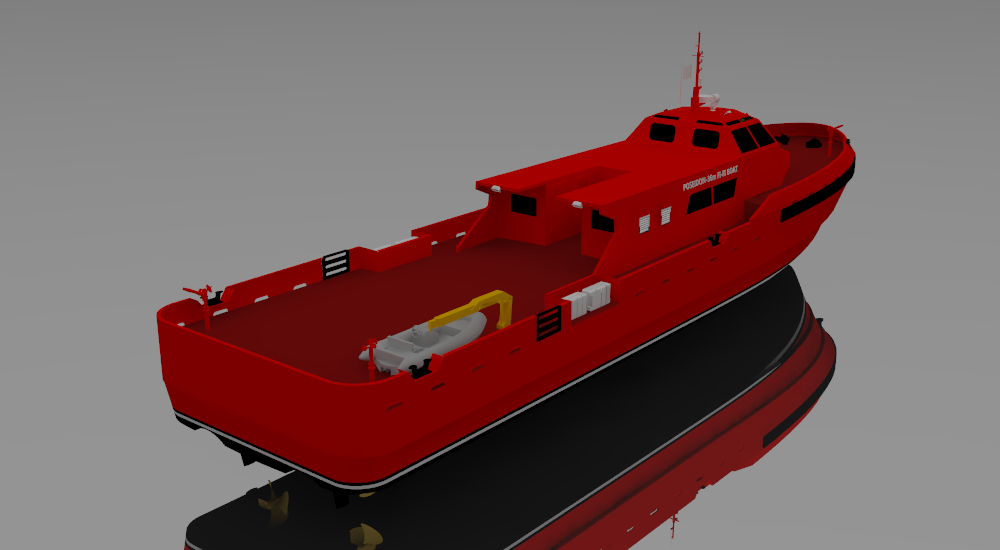

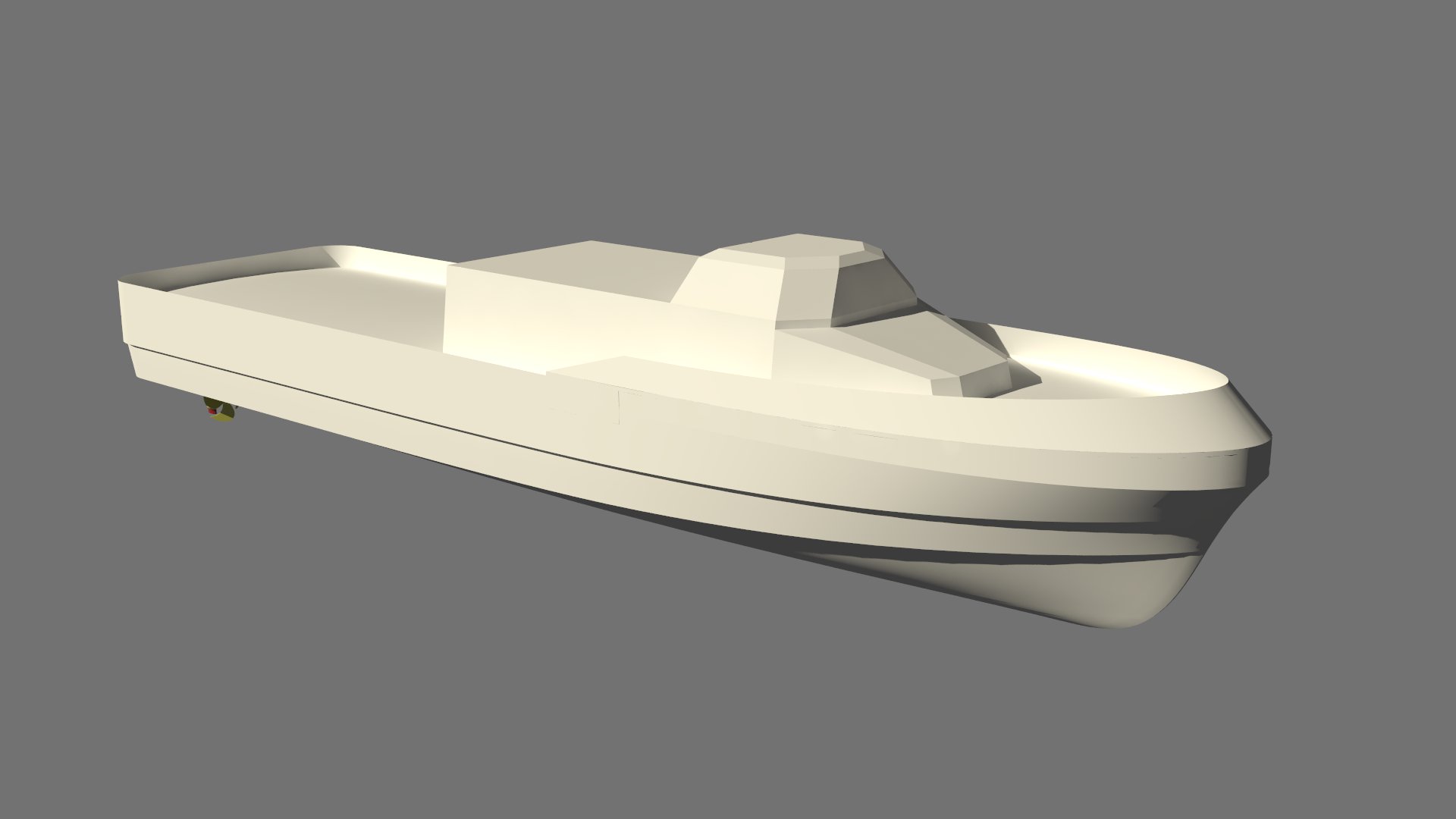

36M FIFI & RESCUE BOAT
The boat is designed for fire fighting and rescue facilities.
CLASS INFORMATION
BUREAU VERITAS
I +HULL .MACH
Coastal Area
Fire Fighting Ship Fi-Fi-E
MAIN DIMENSIONS
| LOA (Length Over All) m | : | 36,00 |
| LWL (Length Water Line) m | : | 34,73 |
| LBP (Length Between Perpendiculars) m | : | 33,13 |
| B (Breadth Moulded) m | : | 9,00 |
| D (Depth Moulded) m | : | 3,80 |
| T (Max Draught) m | : | 1,95 |
| Crew Information | : | 10 Crew |
| Building Material Hull | : | A Grade Marine Steel |
| Building Material Super Structure | : | Marine Grade Aluminium |
| Gross Tonnage | : | 289 GRT |
TANK CAPACITIES
| Diesel Oil m3 | : | 26,60 |
| Foam Tank m3 | : | 23,79 |
| Fresh Water m3 | : | 10,12 |
| Sewage m3 | : | 10,12 |
| Bilge Tank (m3) | : | 6,33 |
| Ballast m3 | : | 64,79 |
SPEED / POWER / PROPULSION / AUXILIARY MACHINERY
| V Service Speed (knots) | : | 13 knots at full load |
| Main Engine Power (HP) | : | 2 x 1200 HP @ 1800 rpm (Total 2400 HP) |
| Reduction Gear Ratio | : | 3 / 1 |

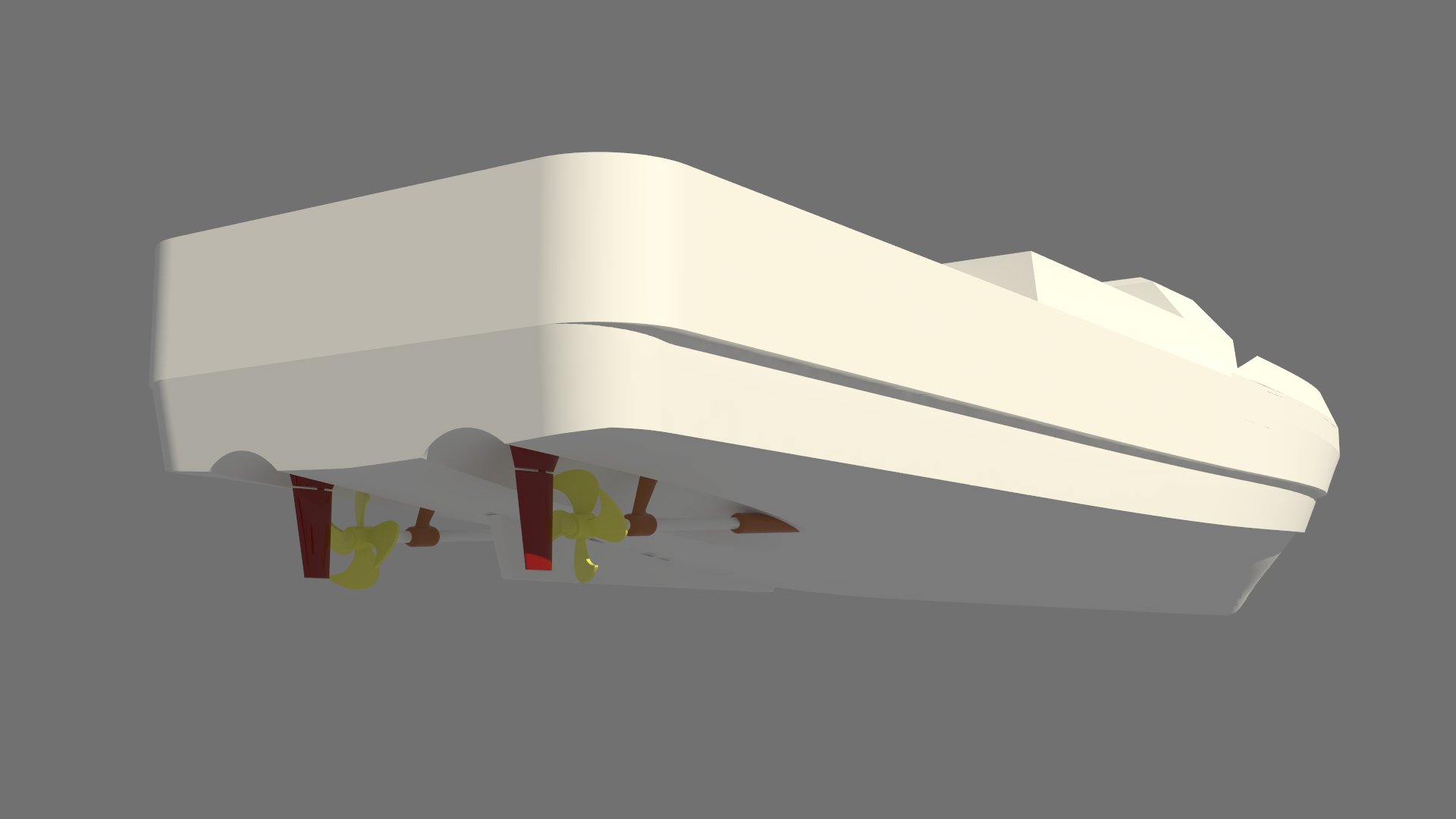

| Propeller Information | : | 2 x 3 Blade / Diameter: 140 cm |
| Electric Generator Power | : | 1 * 108 kVa |
| Dedicted Diesel Fire Pump Engine | : | 1* 1200 hp |
FIRE FIGHTING SYSTEM:
| Fire Pump No: 1 | : | 1200m3/h |
| Fire Pump No: 2 | : | 1200m3/h |
| Fire Pump No: 3 | : | 2400m3/h |
| Fire Monitor No:1 | : | 600 m3/h |
| Fire Monitor No:2 | : | 600m3/h |
| Fire Monitor No:3 | : | 2400m3/h |
