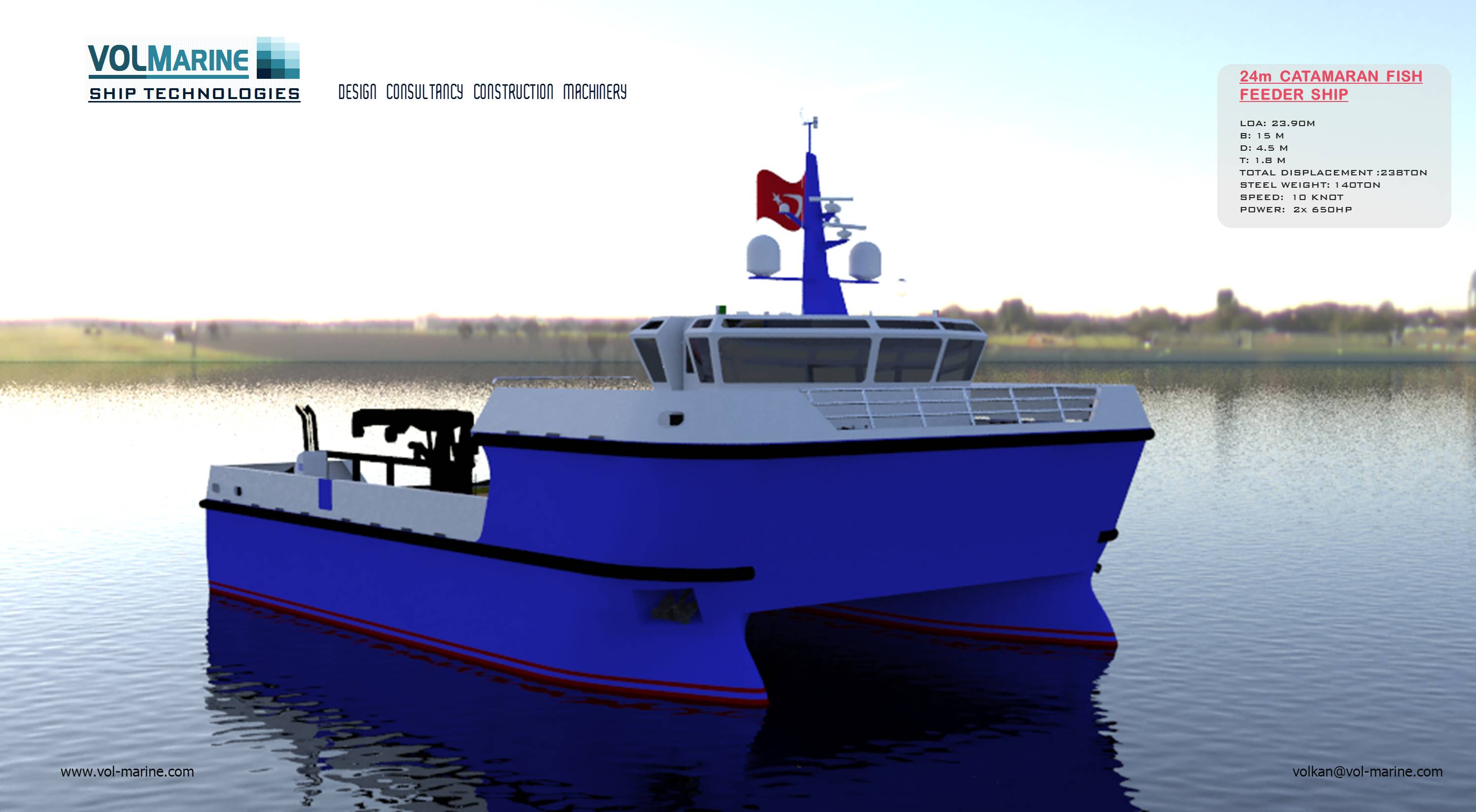

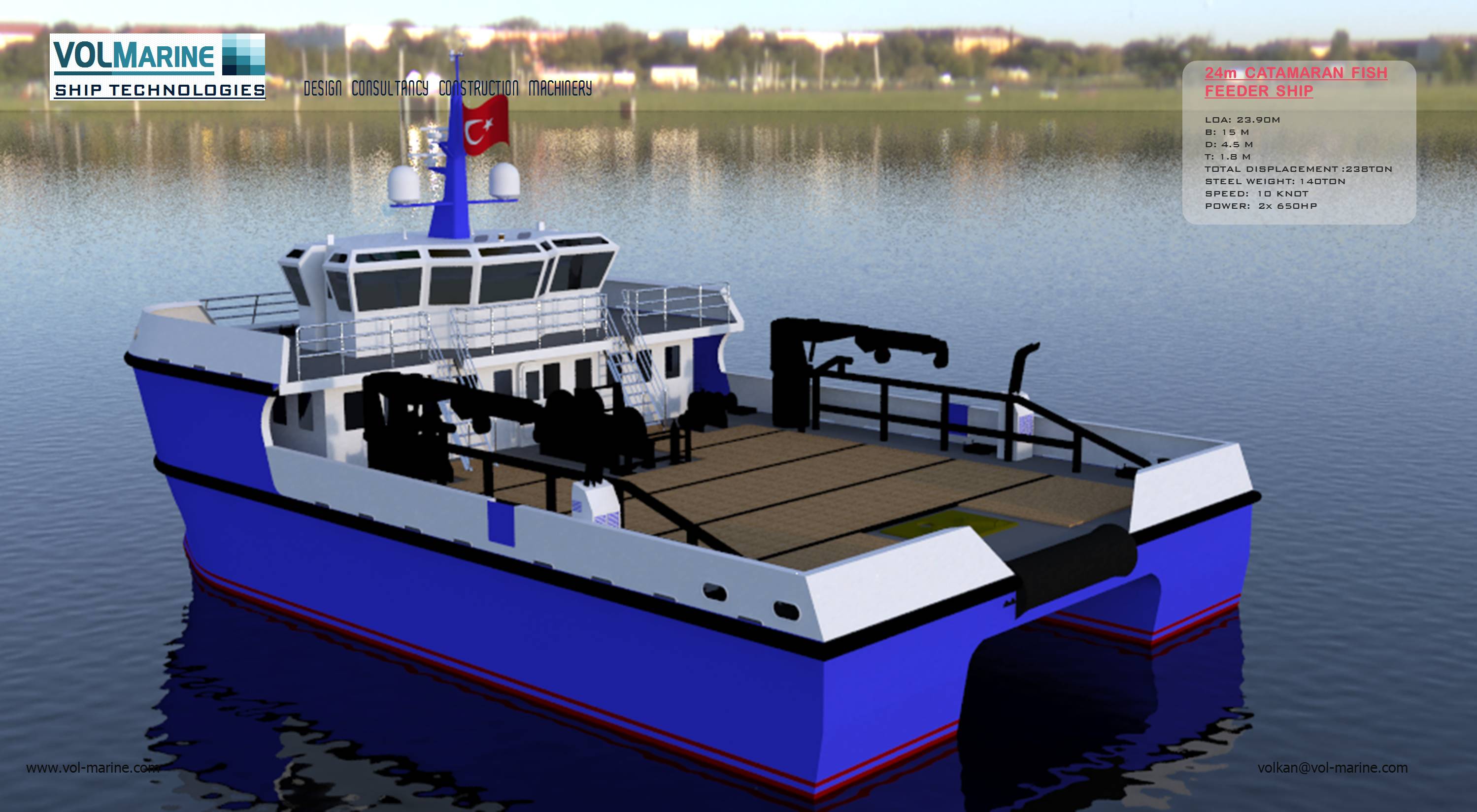

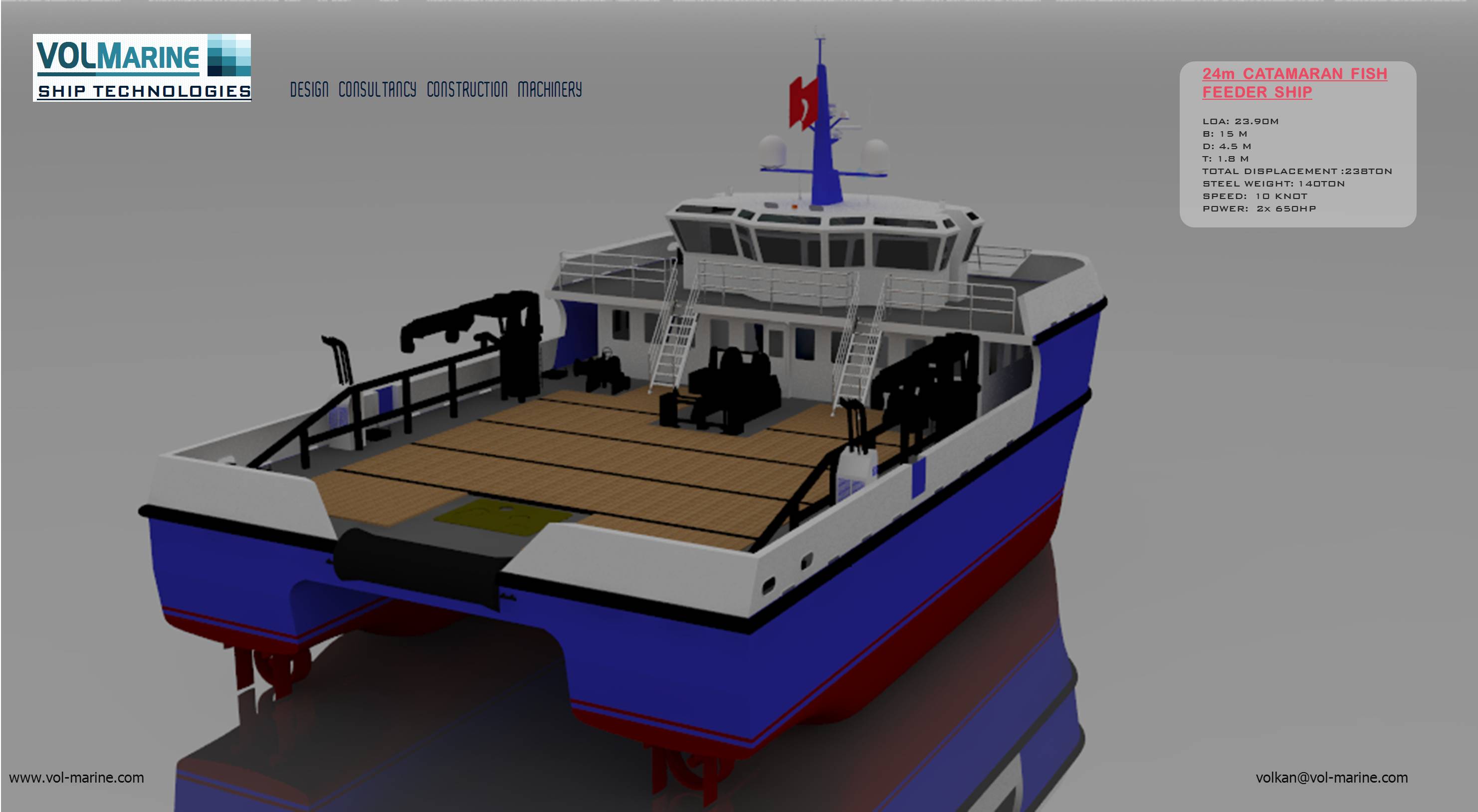

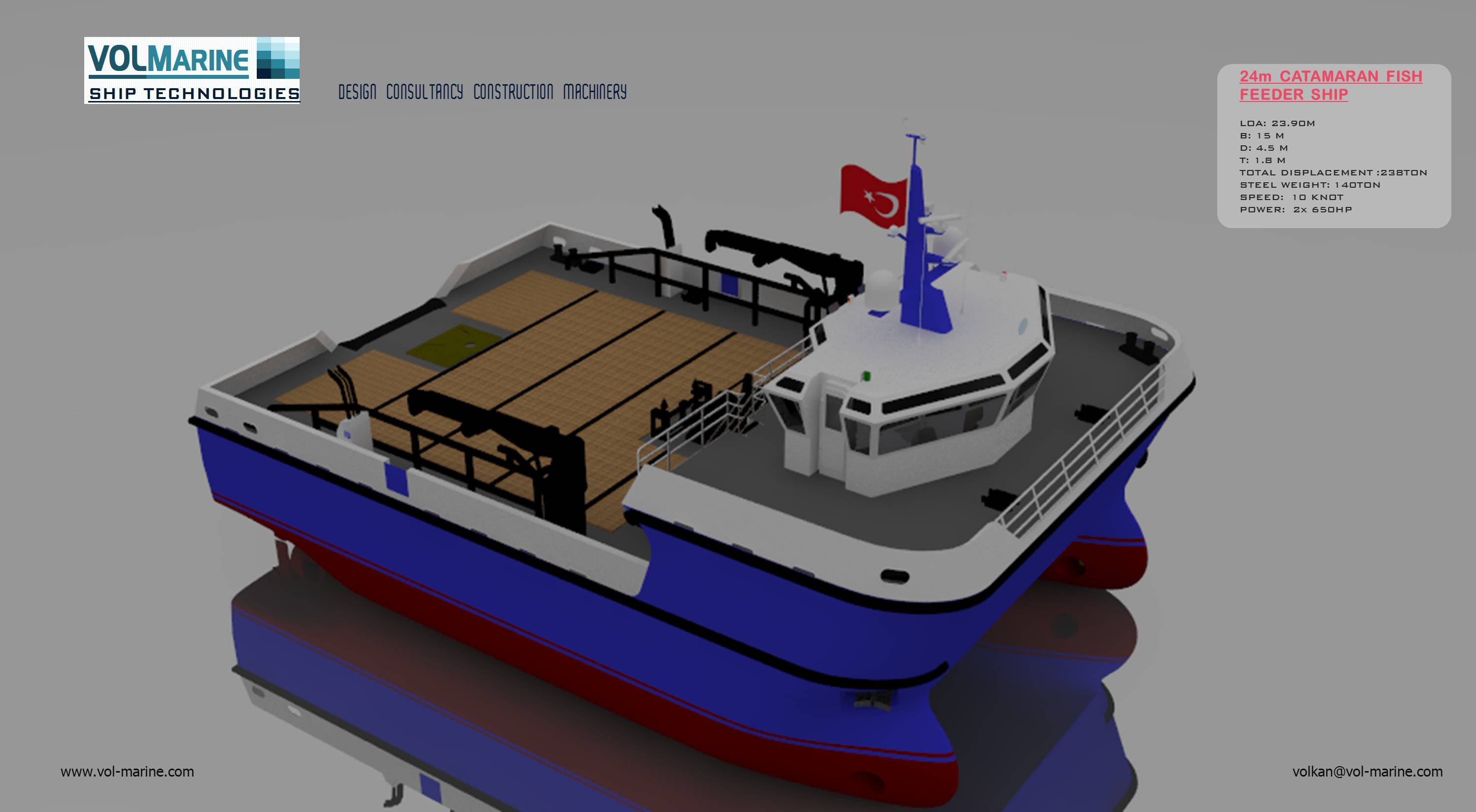

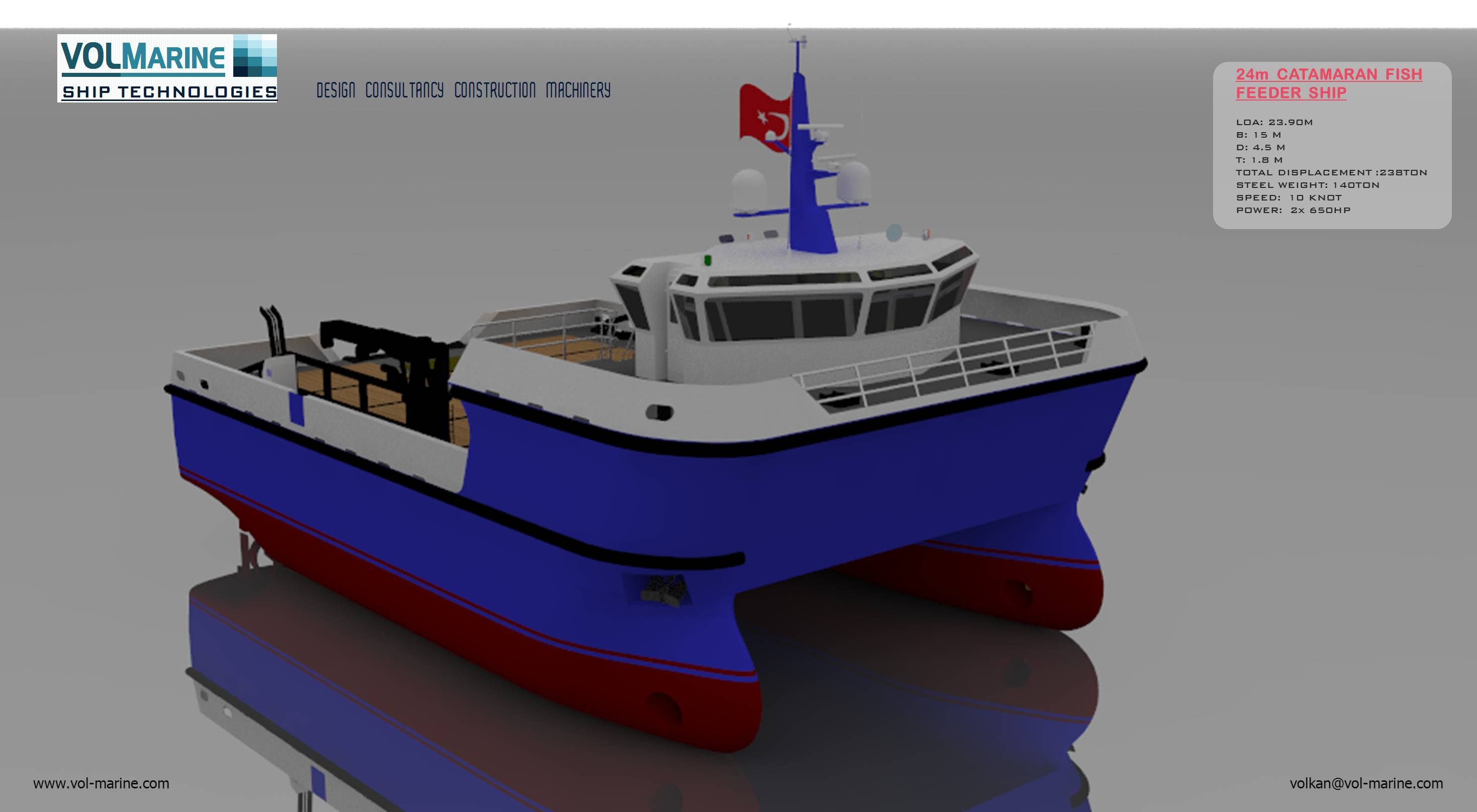

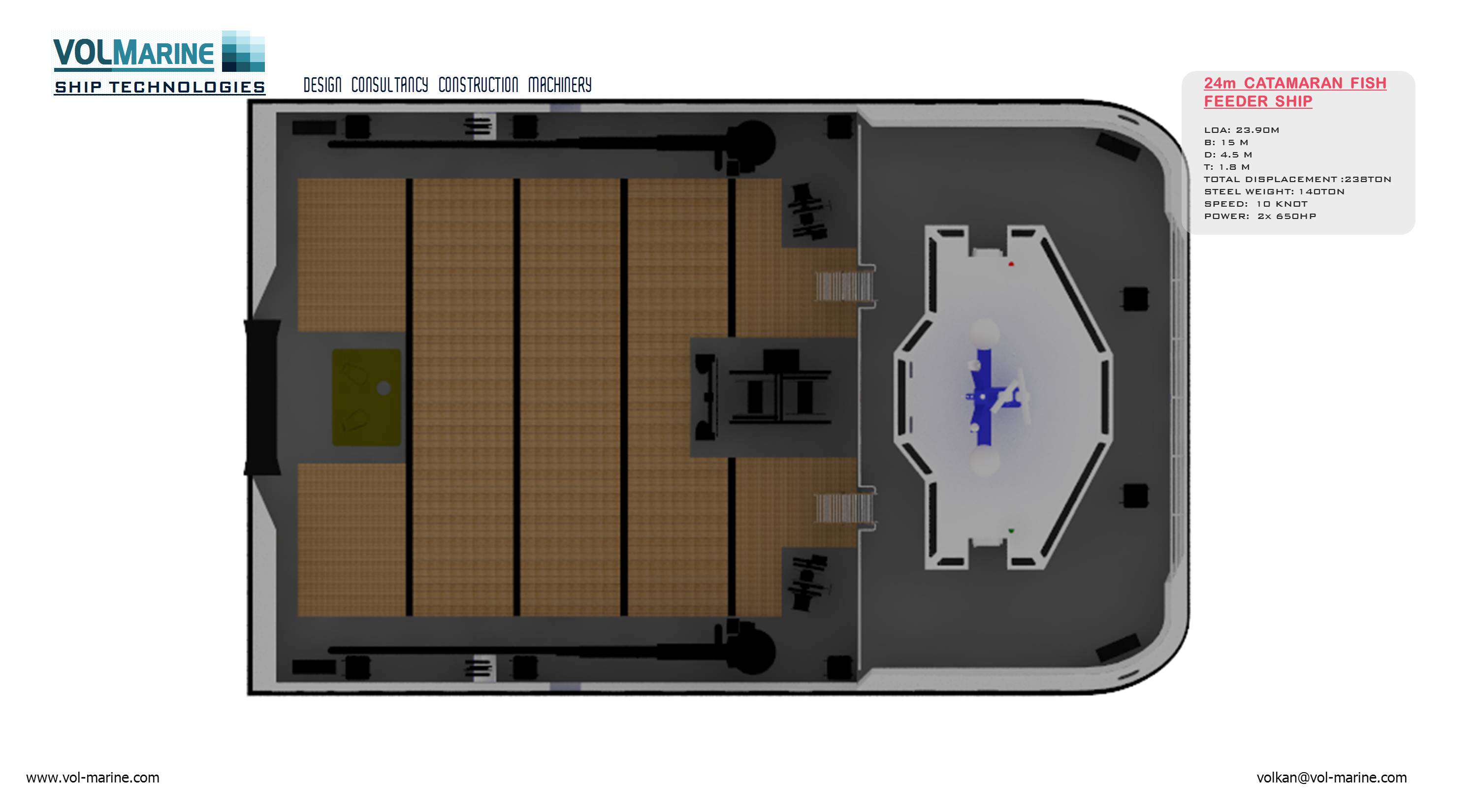

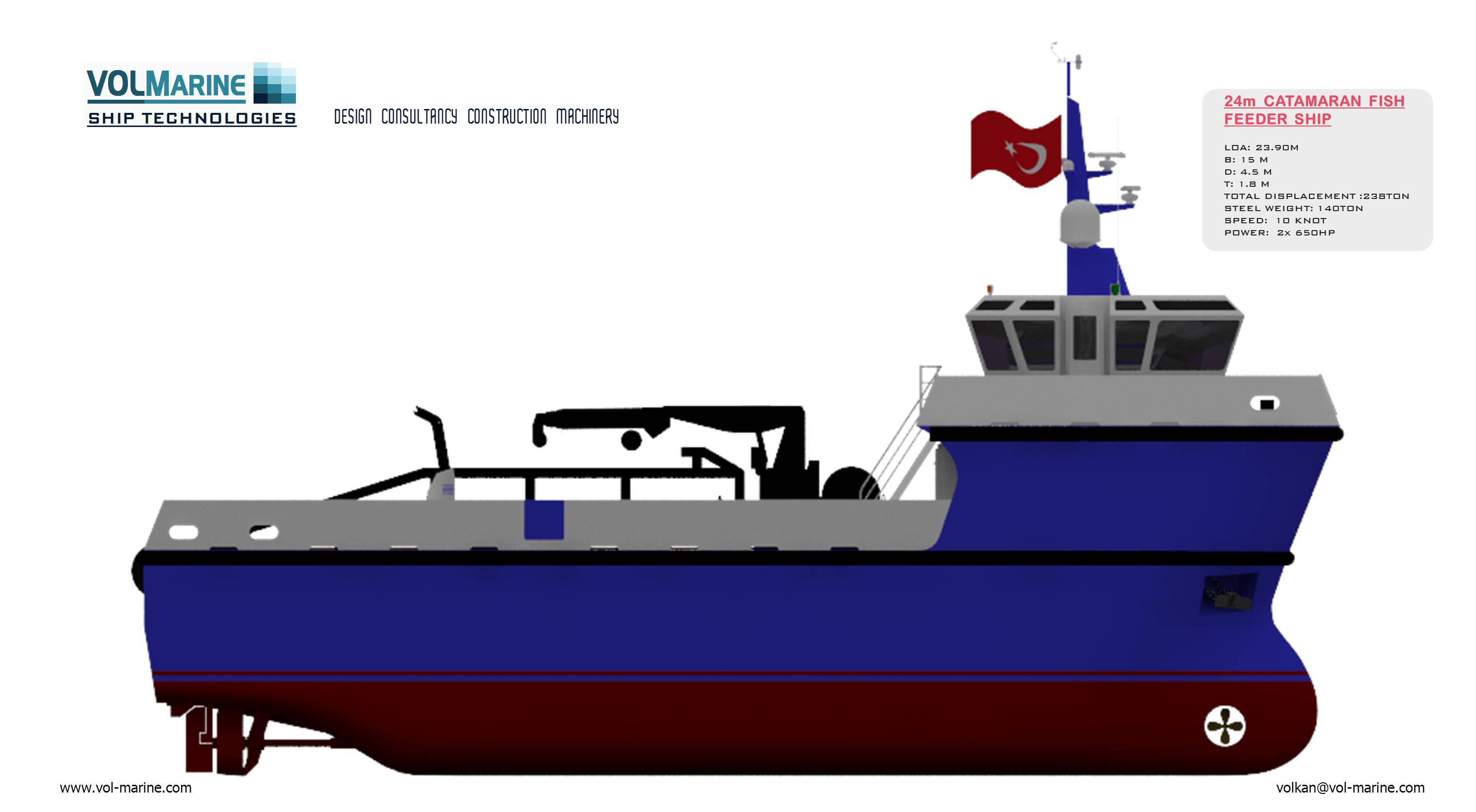

24M CATAMARAN FISH FEEDER SHIP
The vessel is designed for fish farm feed & servicefacilities
MAIN PARTICULARS:
| LOA (Length Over All) m | : | 23,90 |
| B (Breadth Moulded) m | : | 15,00 |
| D (Depth Moulded) m | : | 4,50 |
| T (Design Draught) m | : | 1,80 |
| Building Material | : | A Grade Marine Steel |
| V Service Speed (knots) | : | 10 knots |
| Main Engine Power | : | 2 x 650 HP |
SPEED / POWER / PROPULSION / AUXILIARY MACHINERY
| V Service Speed (knots) | : | 8.8 knots at full load |
| Main Engine Power (kW) | : | 2 x 265 kW @ 2000 rpm (Total 530 kW) |
| Main Engine Power (HP) | : | 2 x 355 HP @ 2000 rpm (Total 710 HP) |
| Reduction Gear Ratio | : | 5.15 / 1 |
| Propeller Information | : | 2 x 4 Blade / Diameter: 140 cm / Pitch: 111 cm |
| Electric Generator Power | : | 2 x 77kW @ 1500 rpm / 50Hz |
TANK CAPACITIES
| Cargo Tanks (m3) | : | 527.50 |
| Ballast Tanks (m3) | : | 300.40 |
| Diesel Oil Tanks (m3) | : | 32.33 |
| Fresh Water Tanks (m3) | : | 13.01 |
| Sewage Tank (m3) | : | 2.64 |
| Bilge Tank (m3) | : | 1.80 |
TONNAGE INFORMATION
| Gross Tonnage | : | 363 GRT |
| Net Tonnage | : | 125 NRT |
| Lightship Weight | : | 253.840 ton |
| Displacement @ T max | : | 782.063 ton |
| DWT @ T max | : | 528.223 ton |
