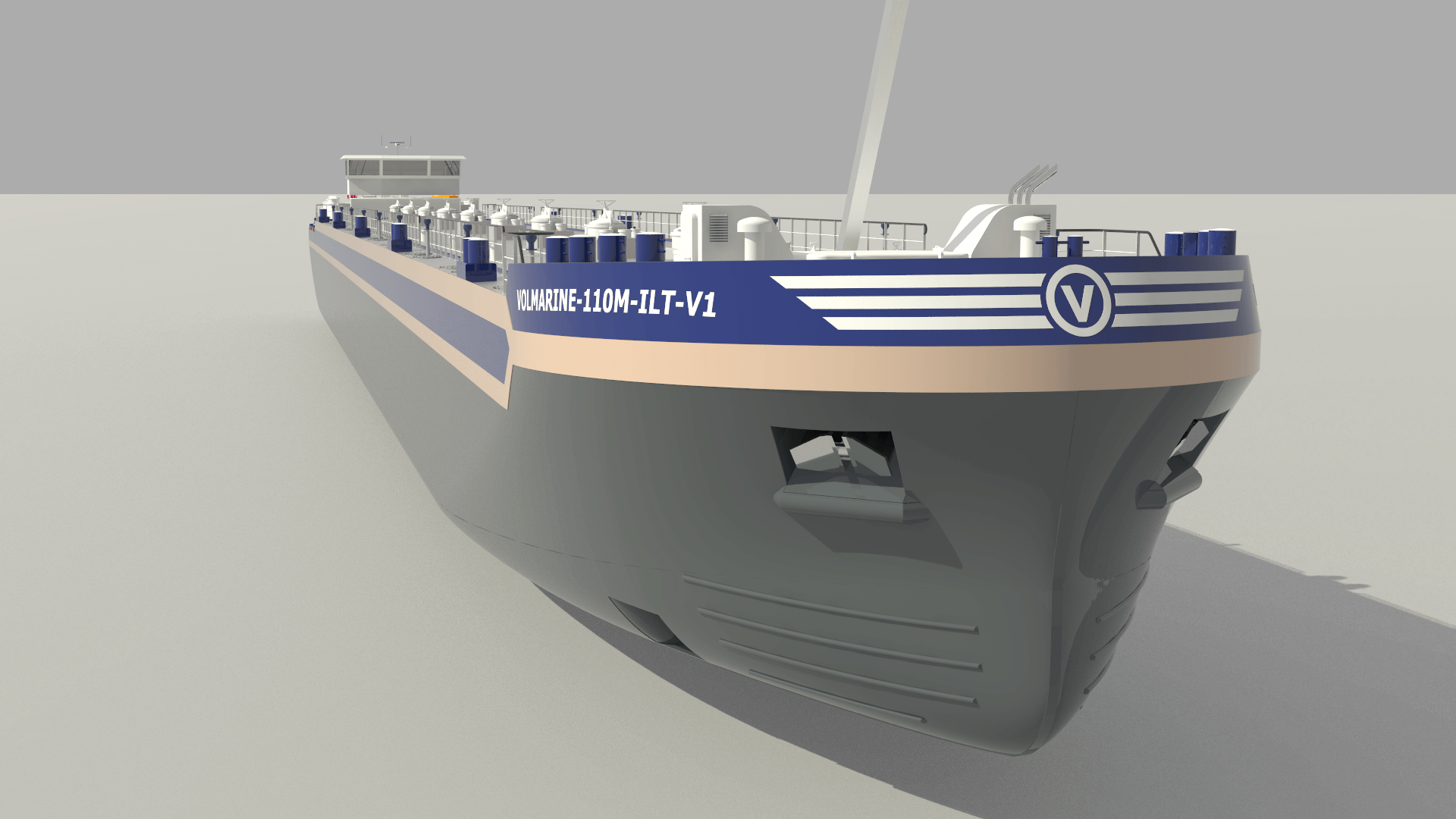

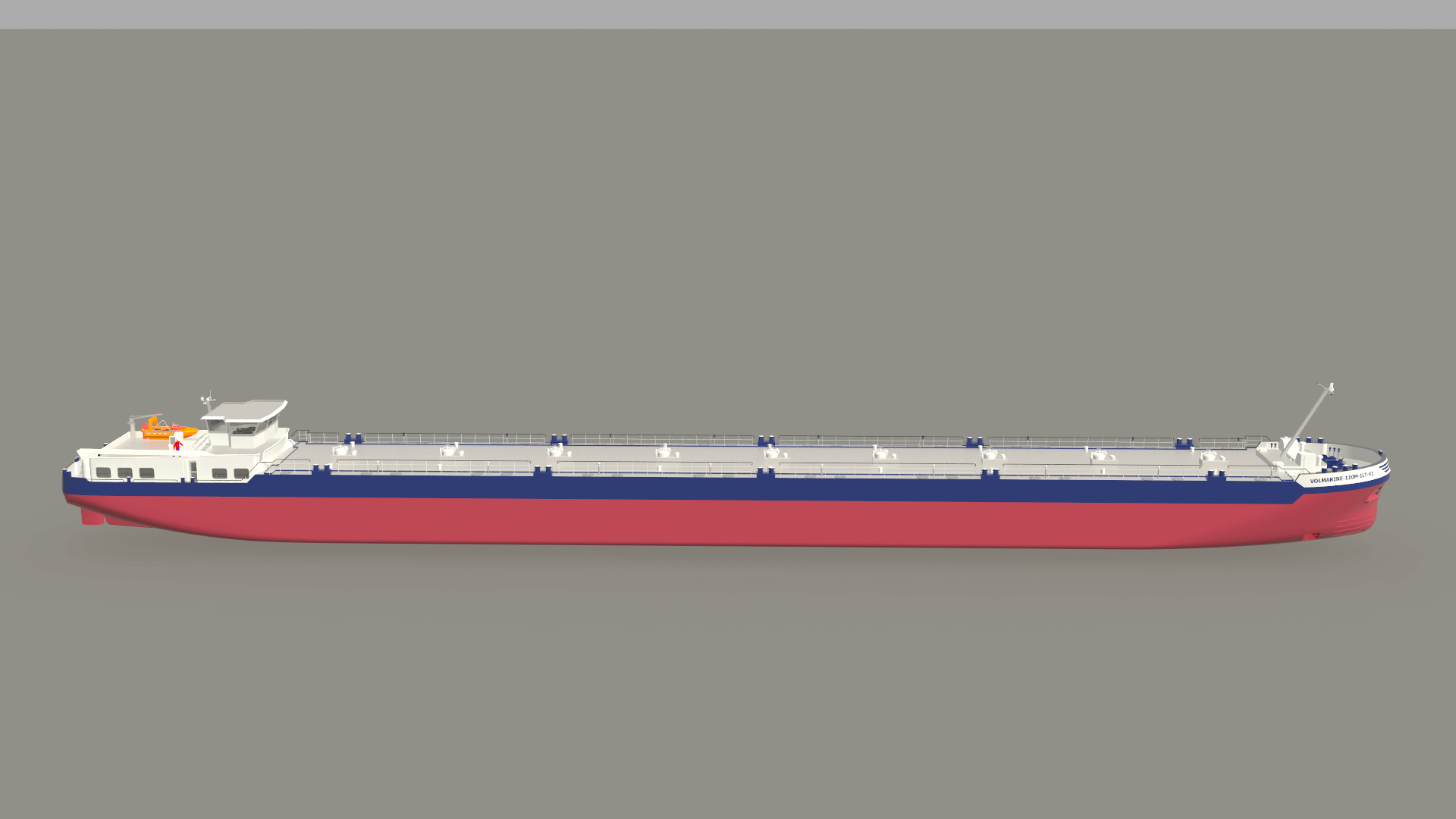

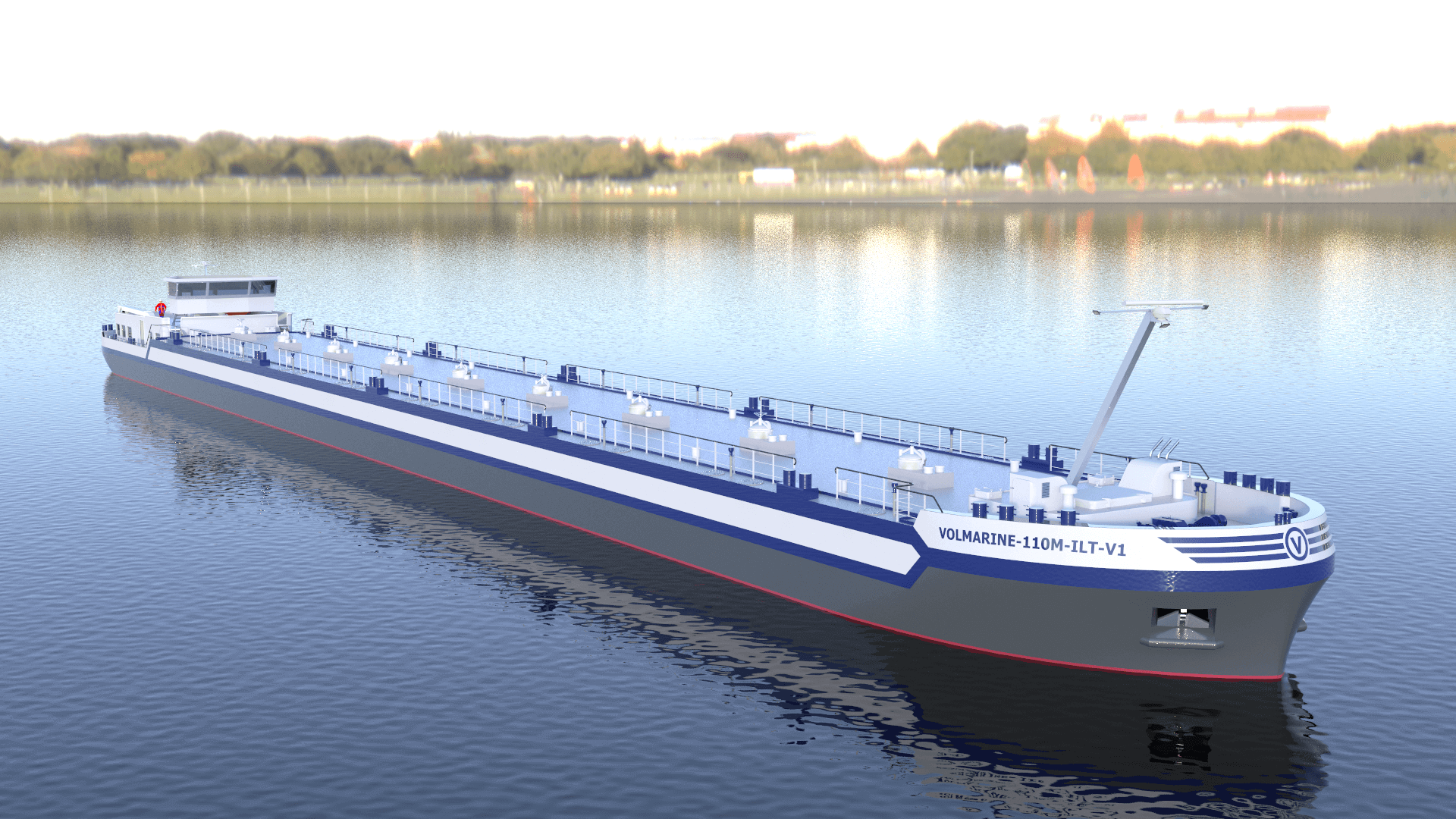

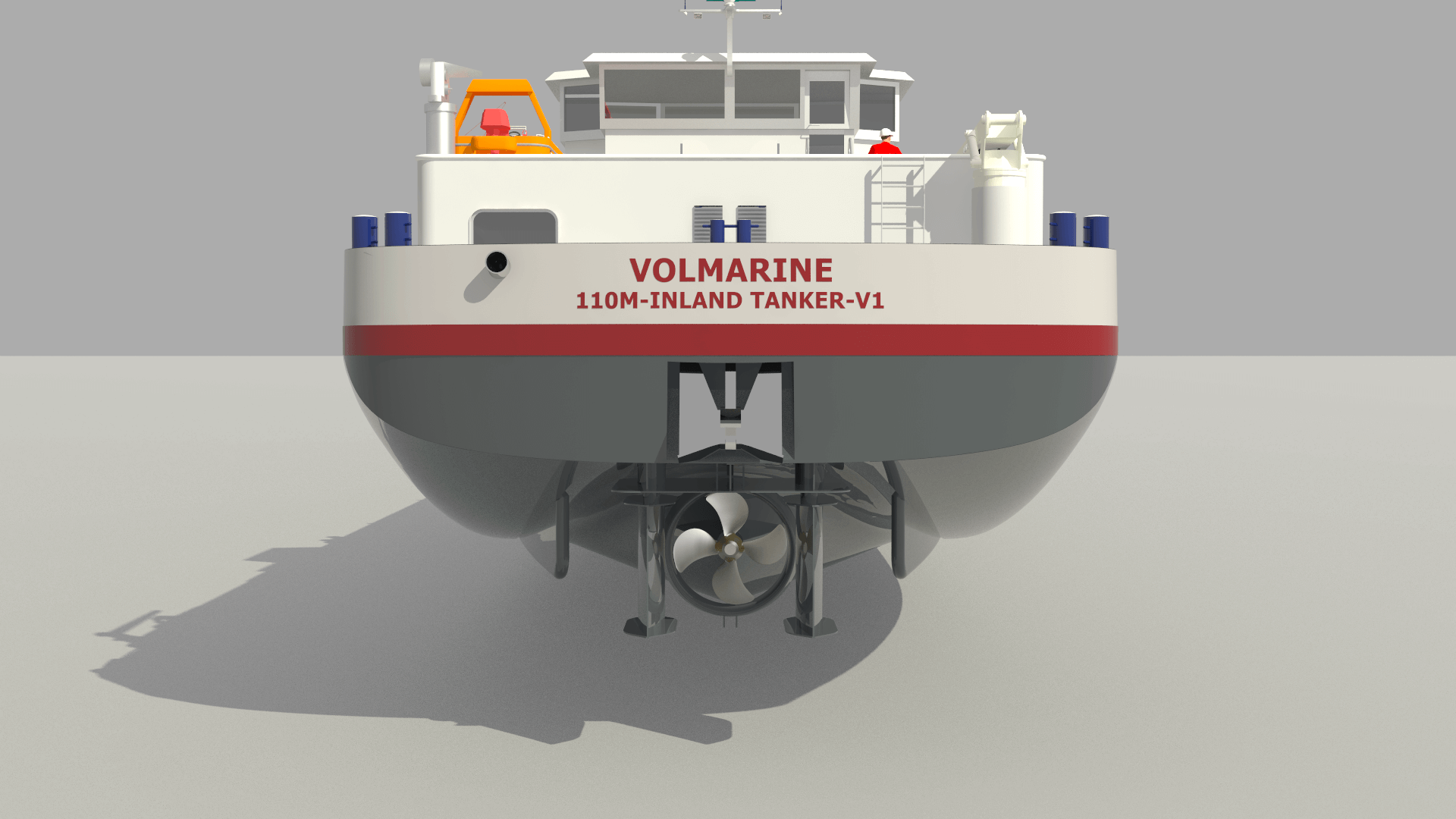

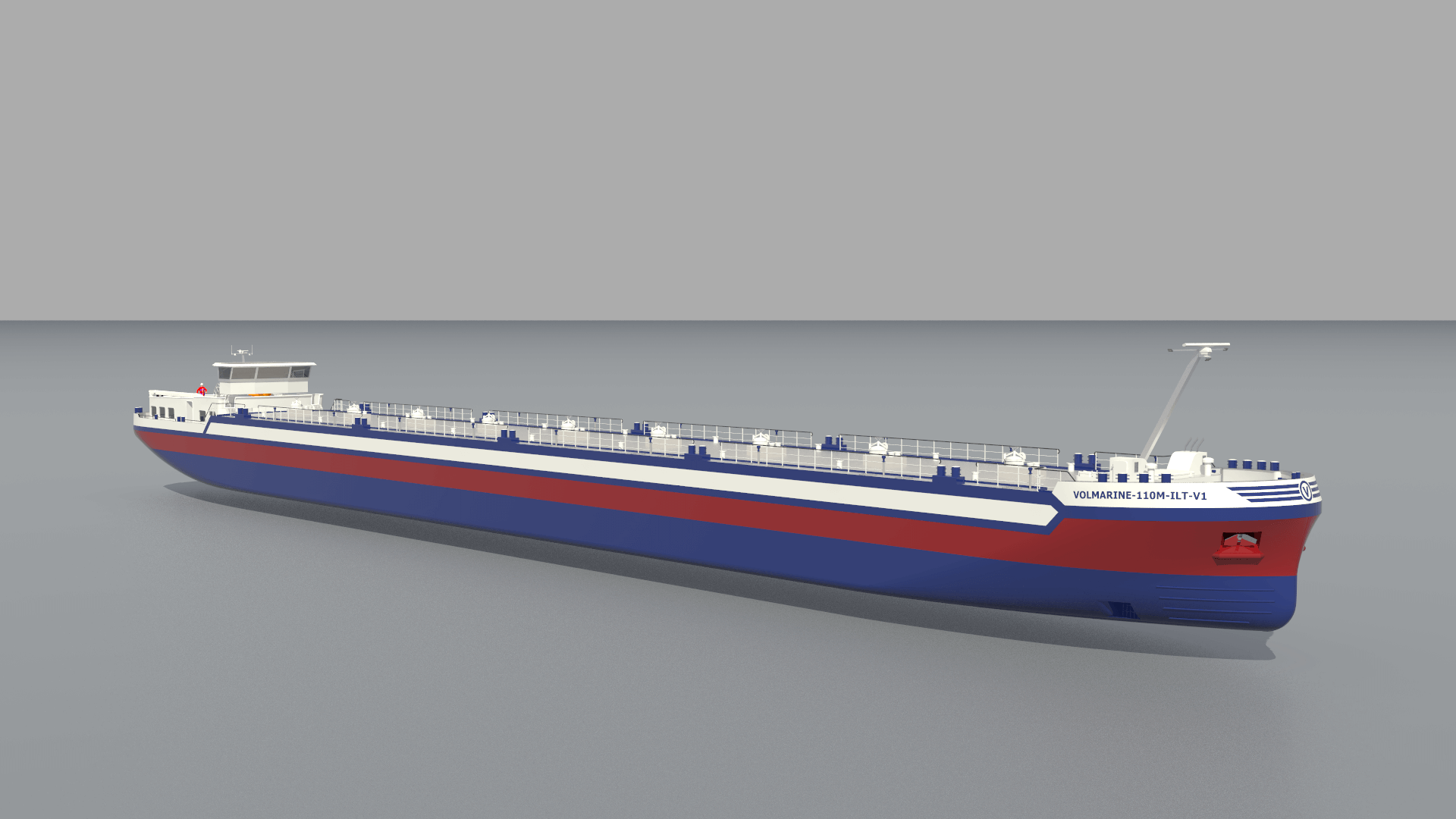

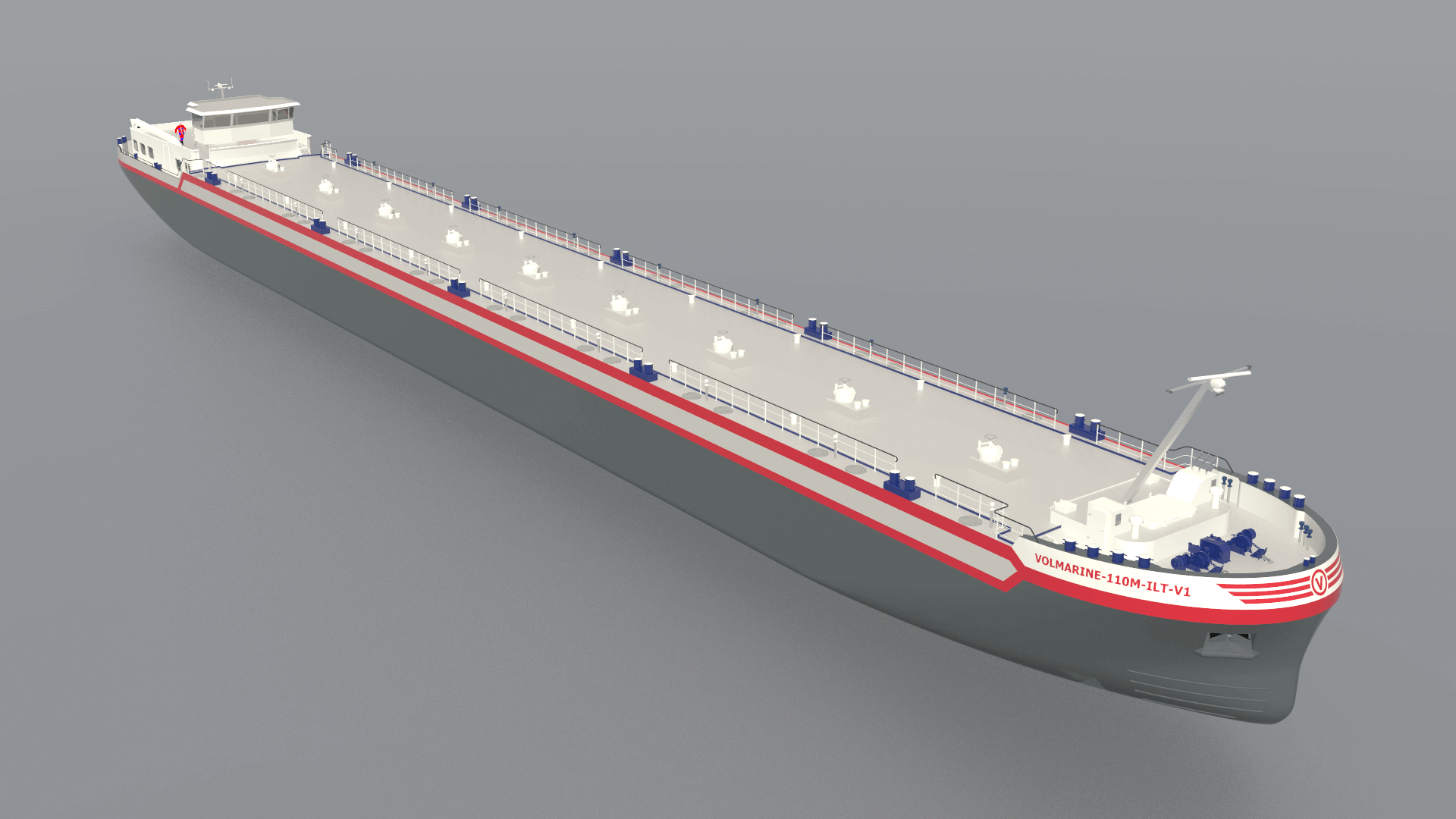

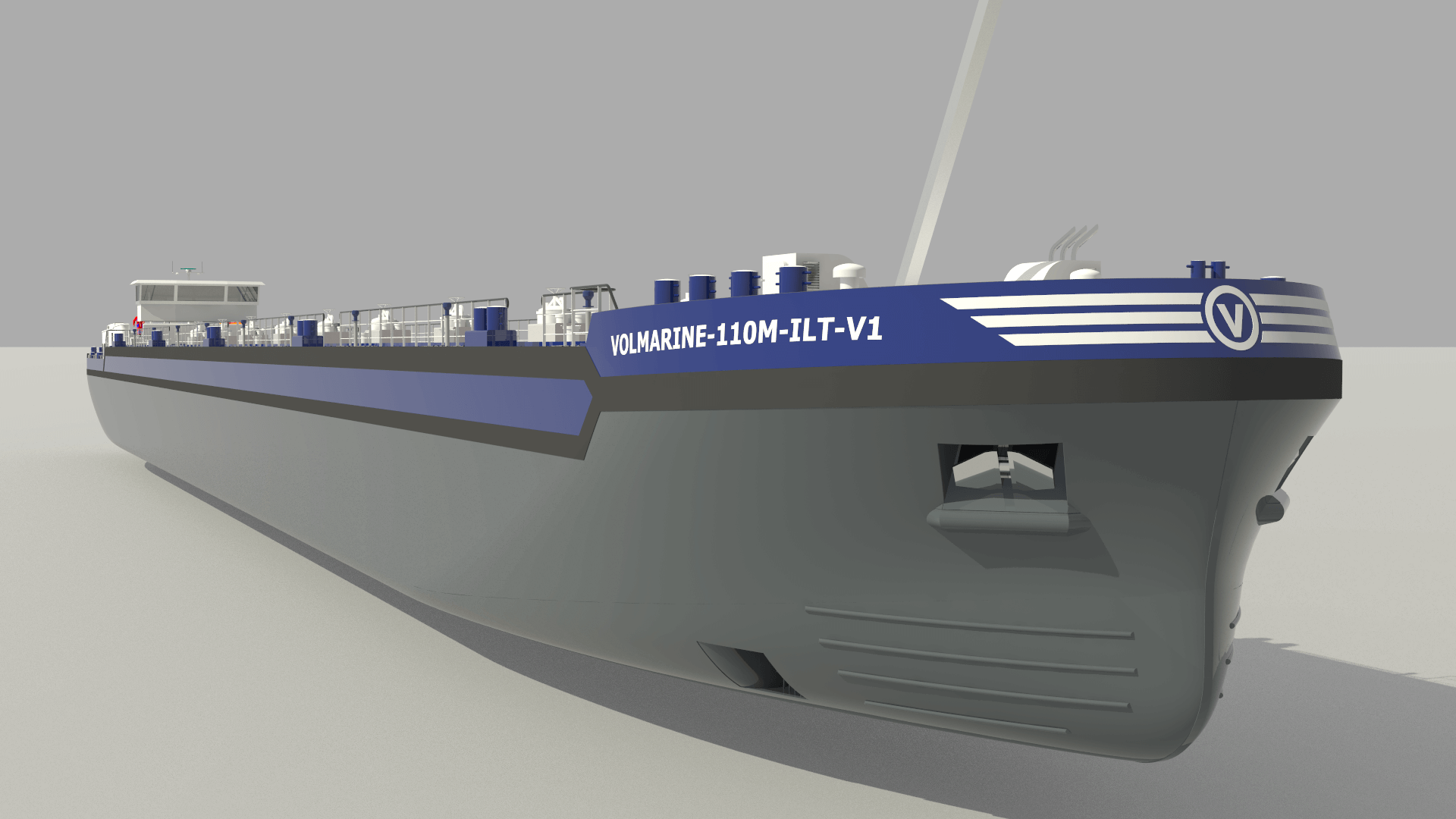

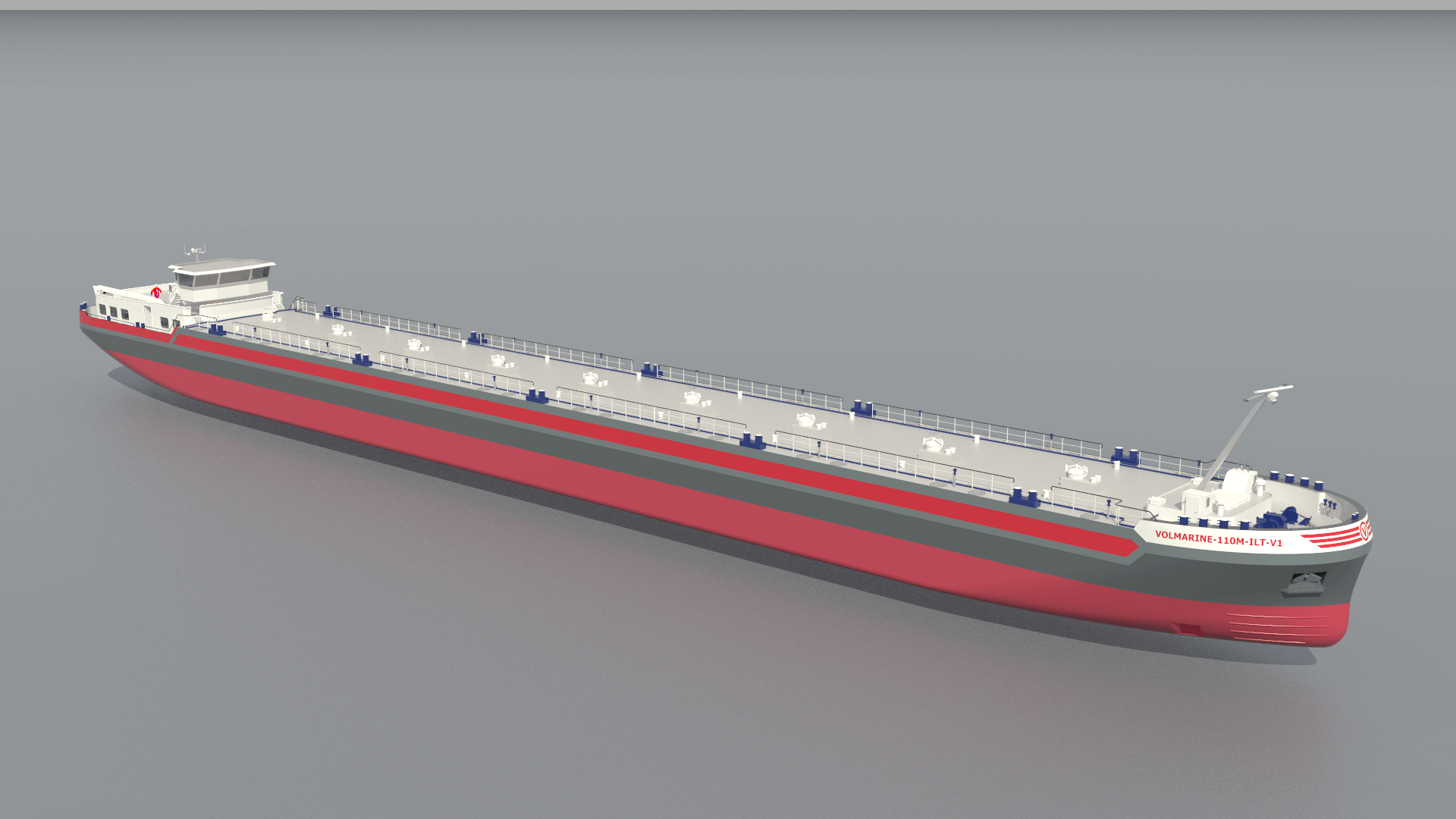

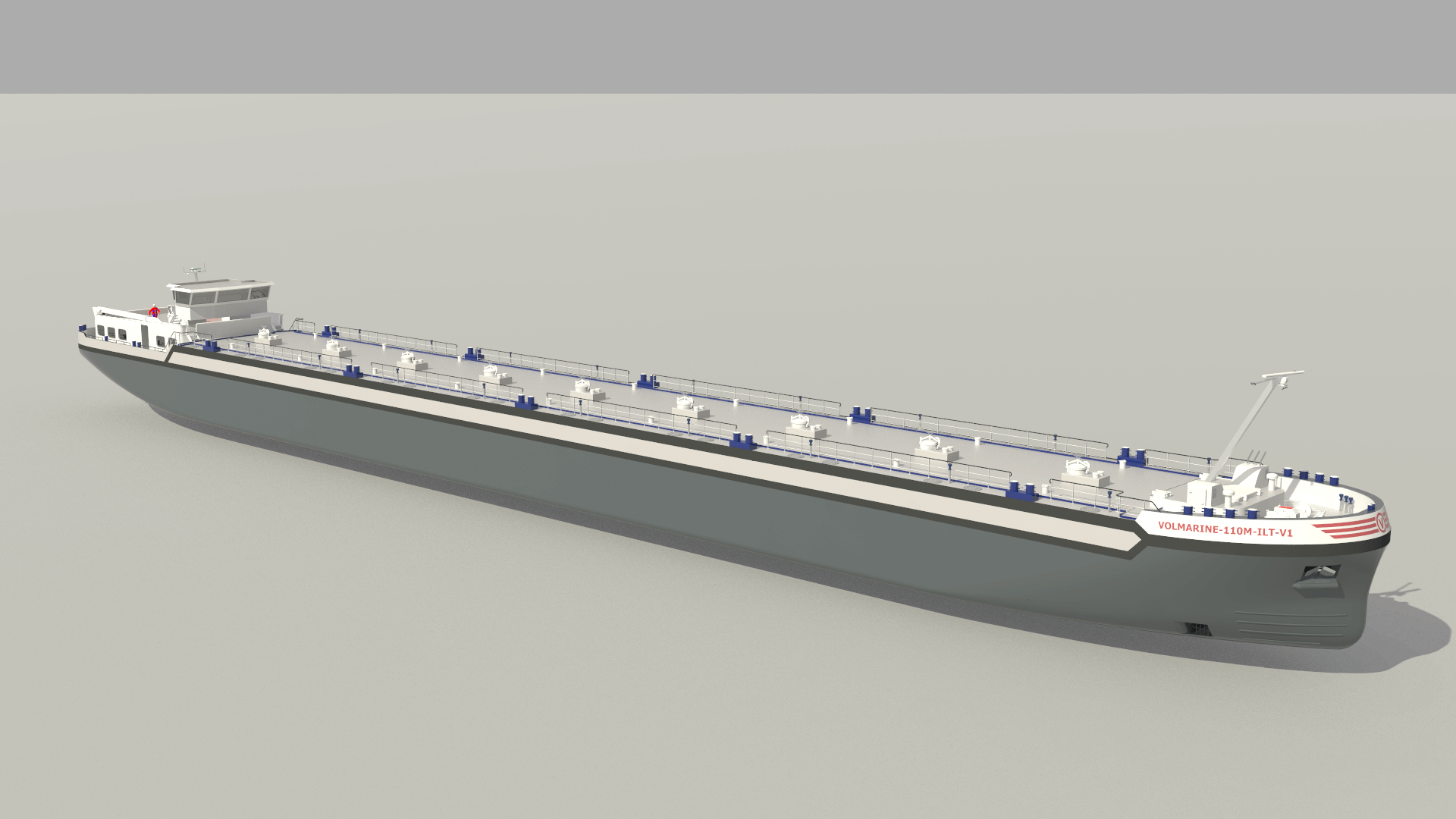

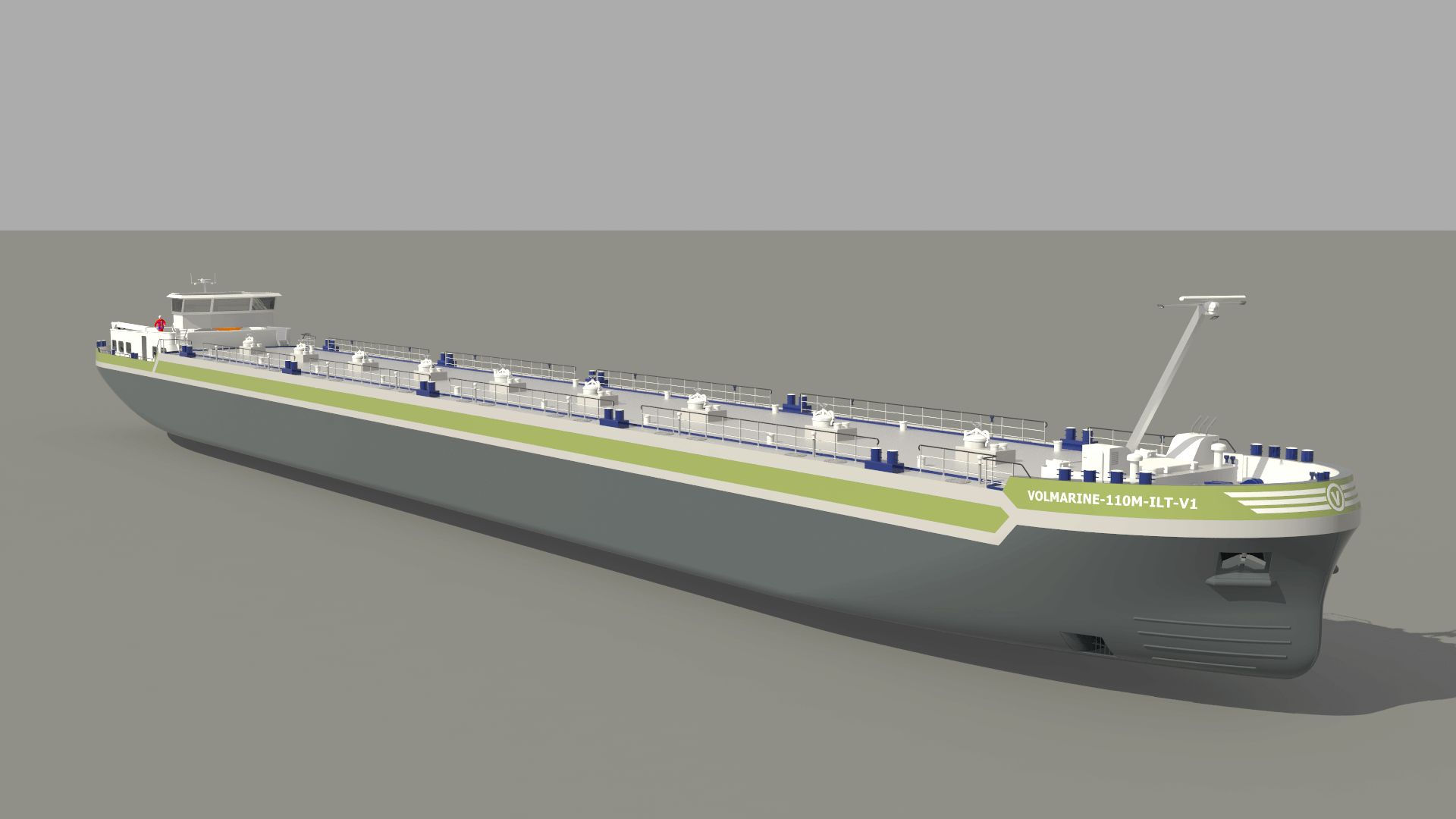

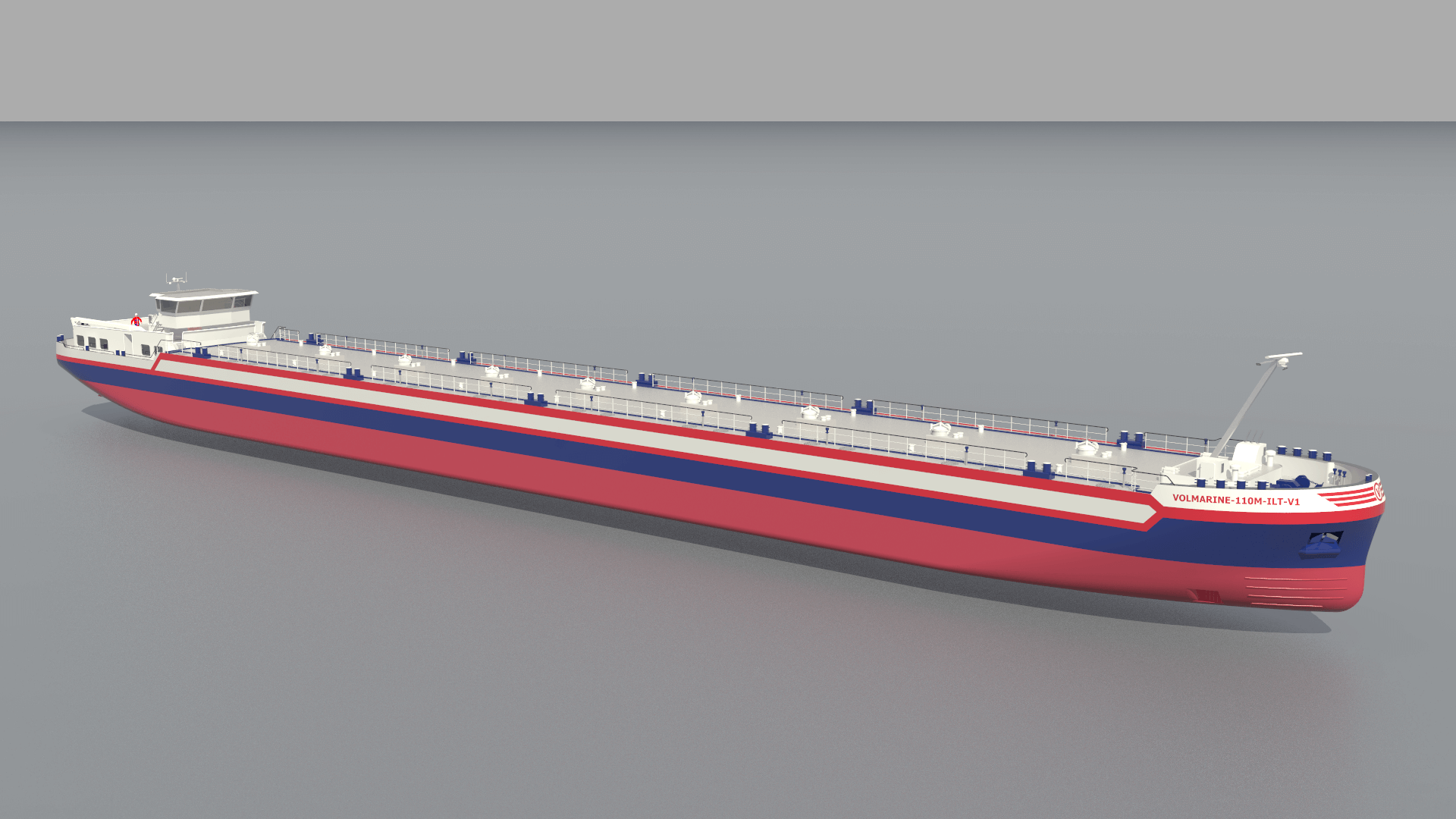

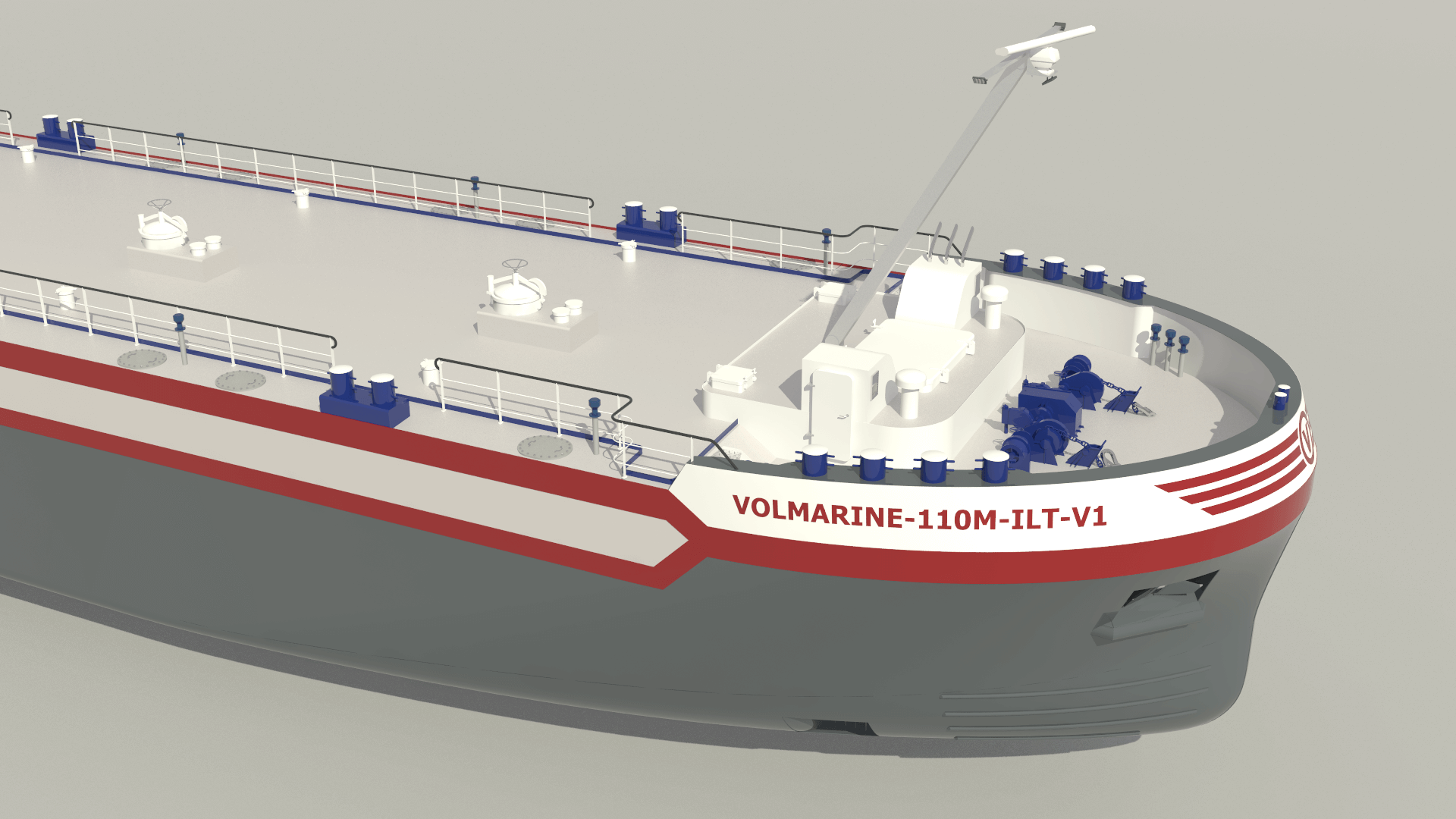

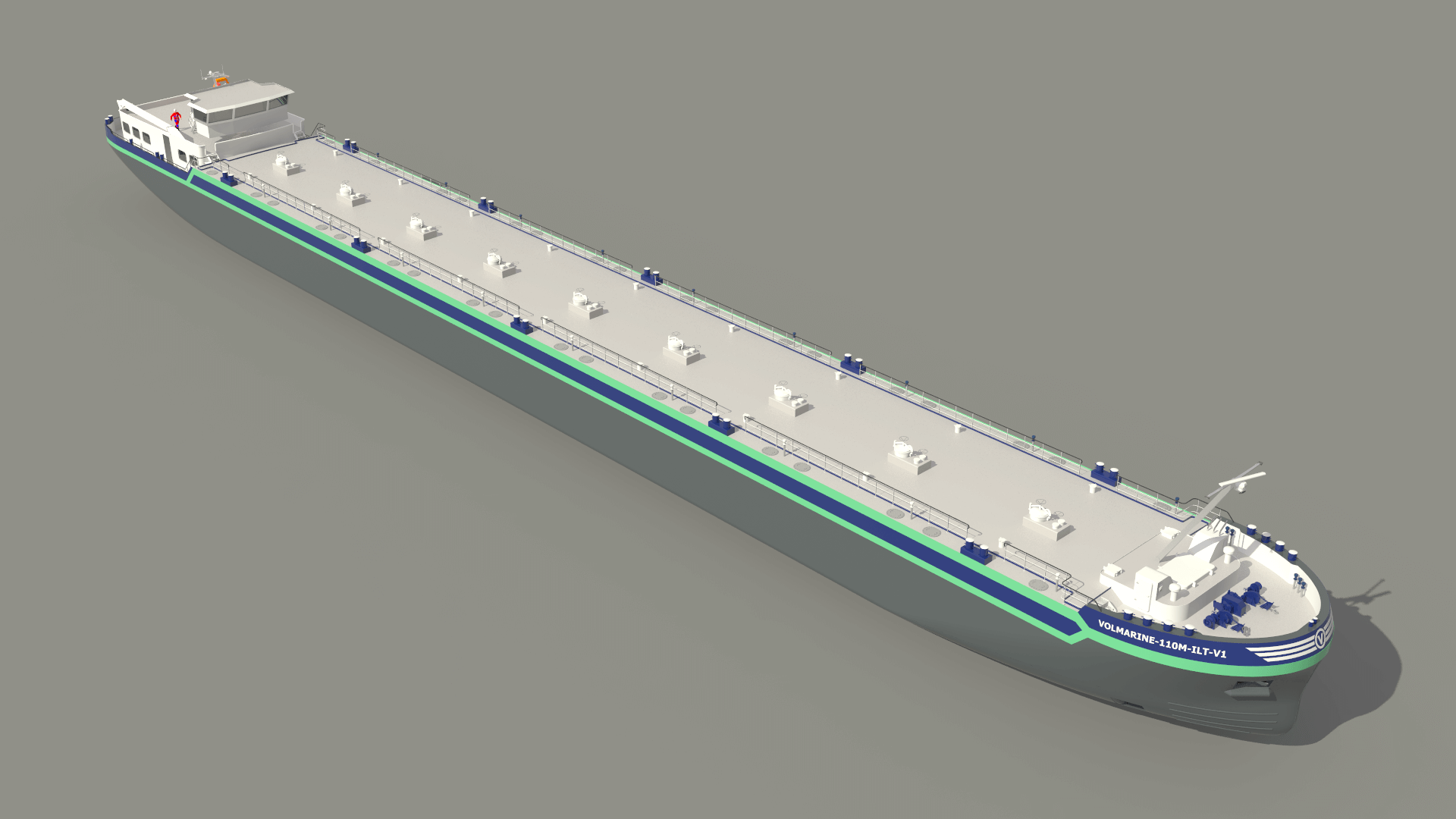

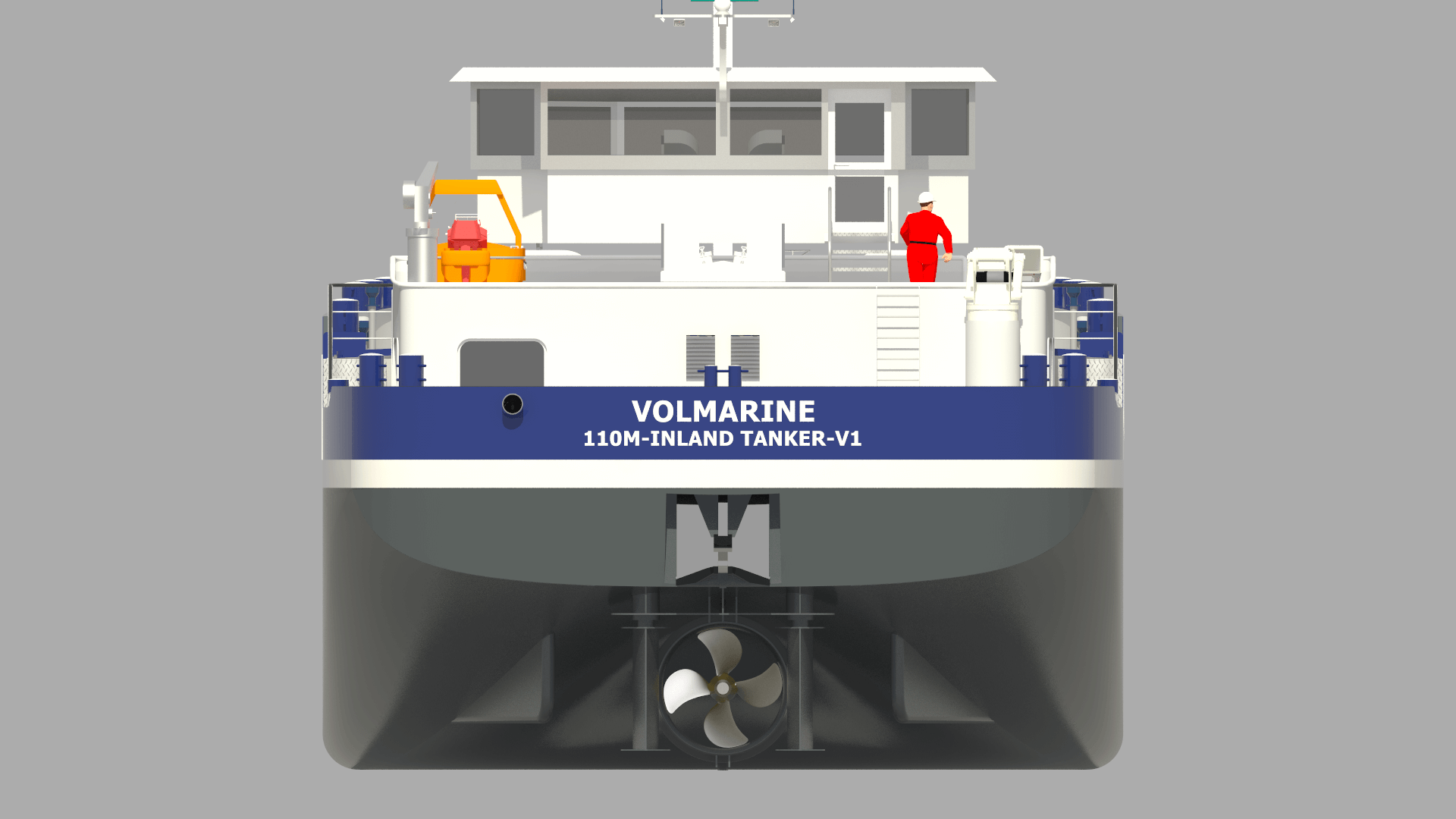

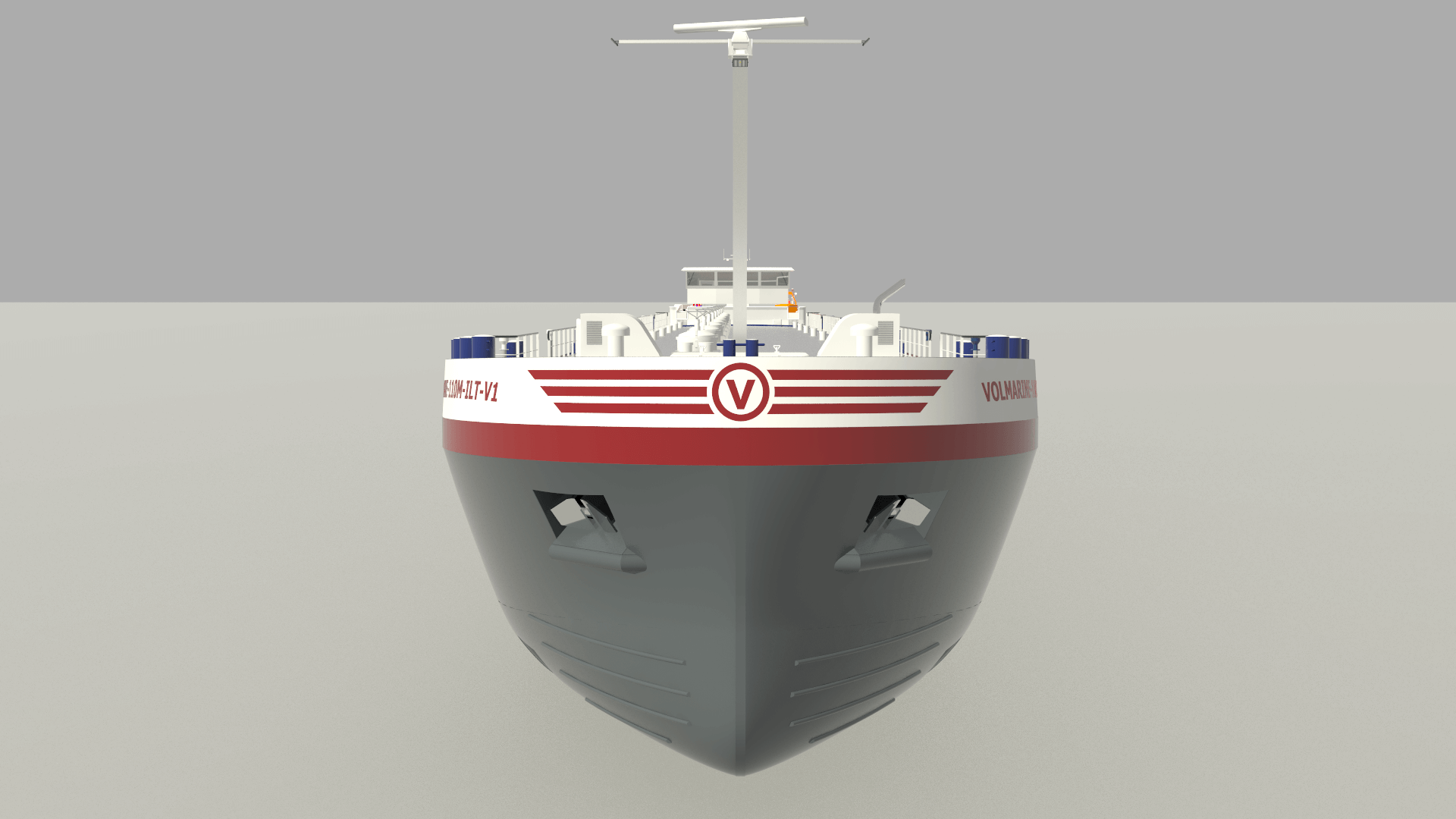

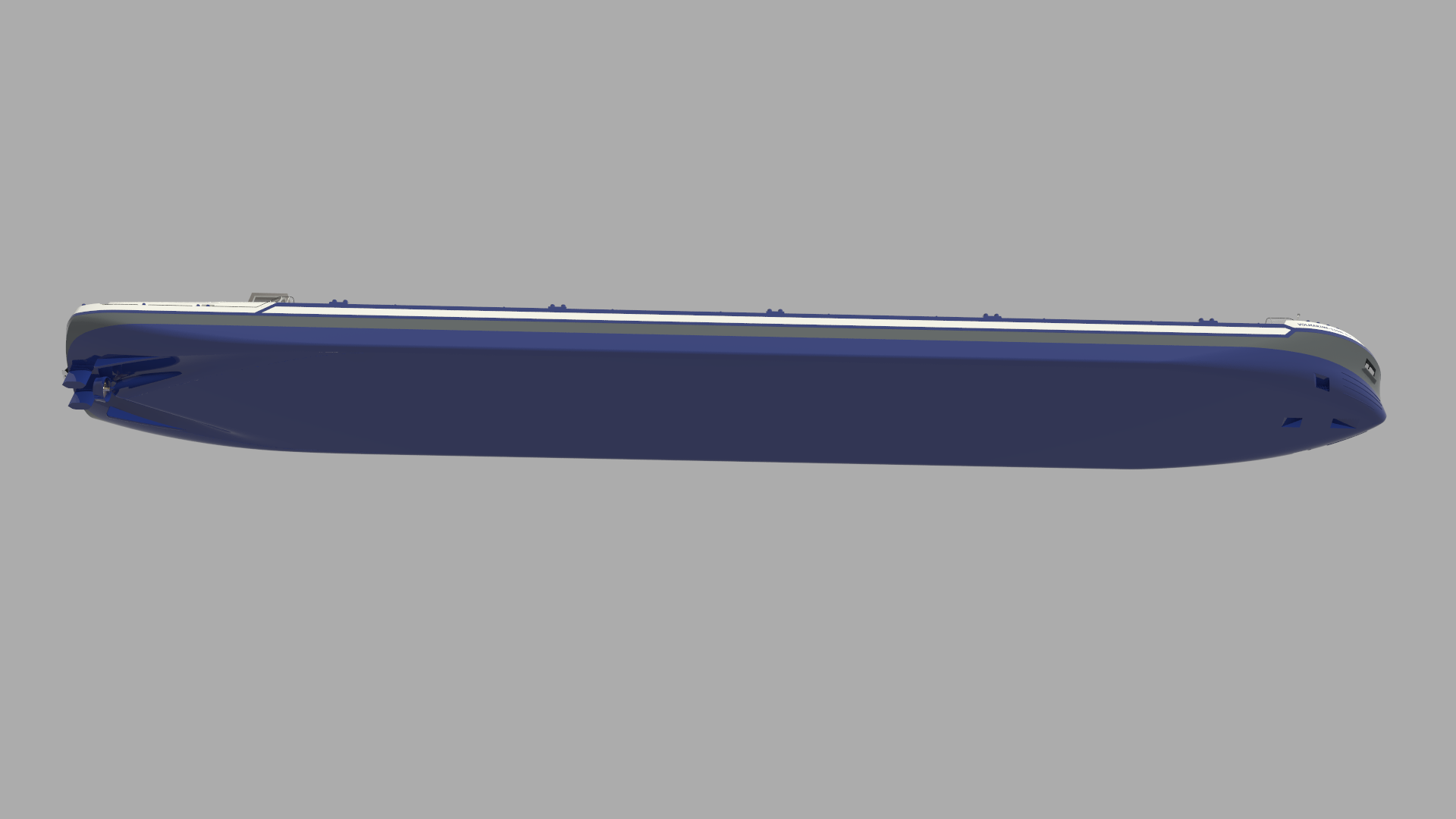

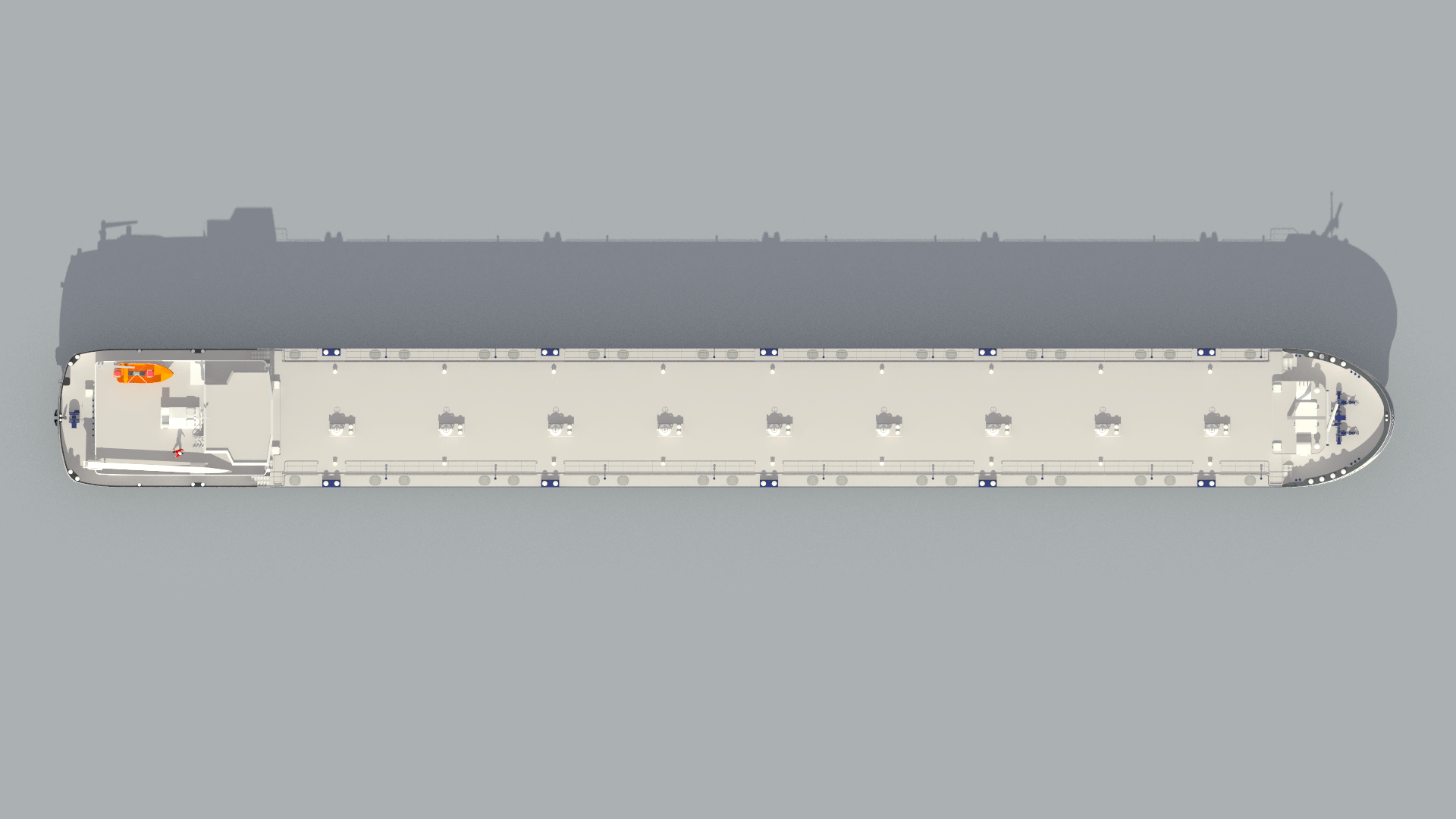

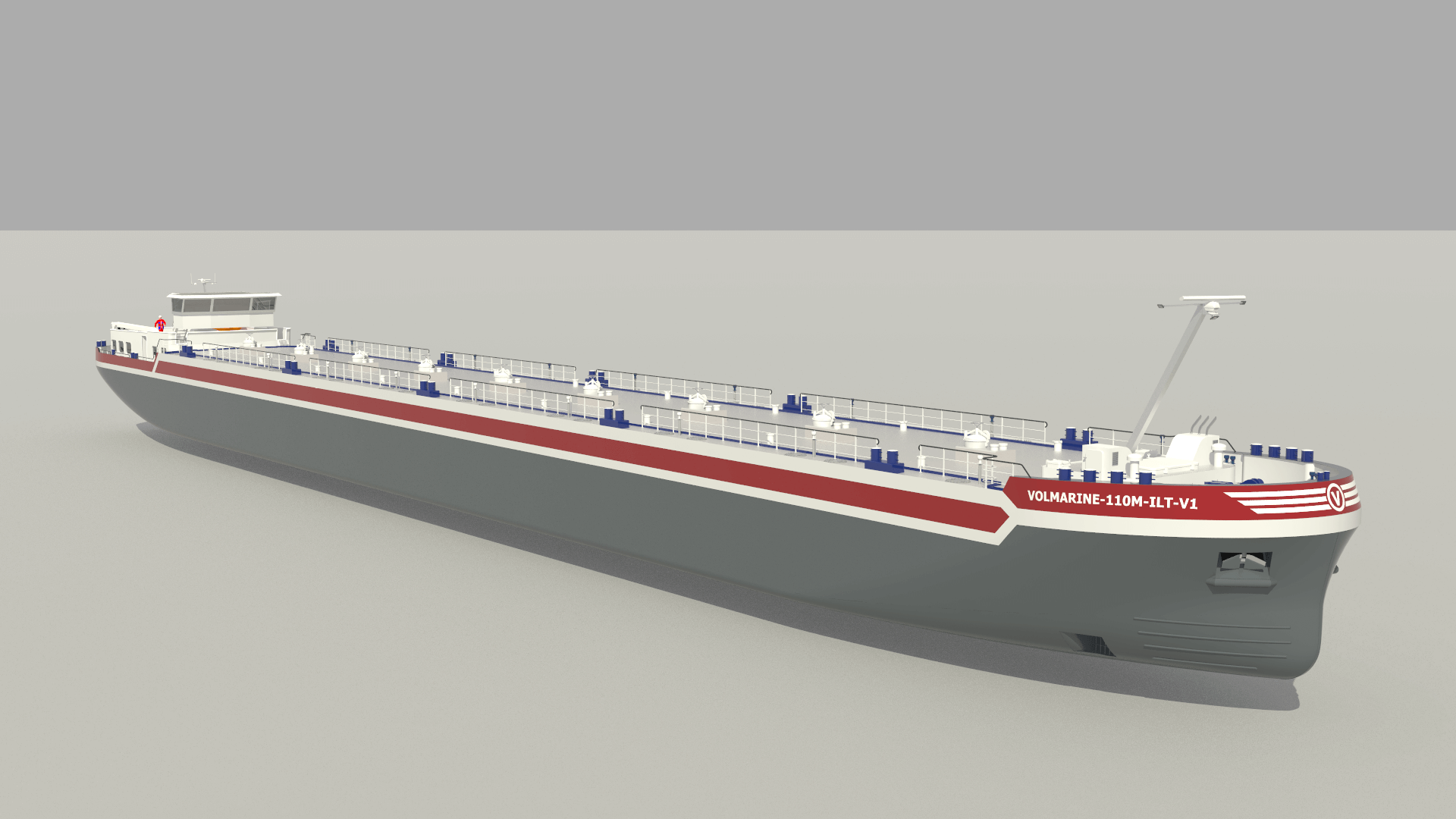

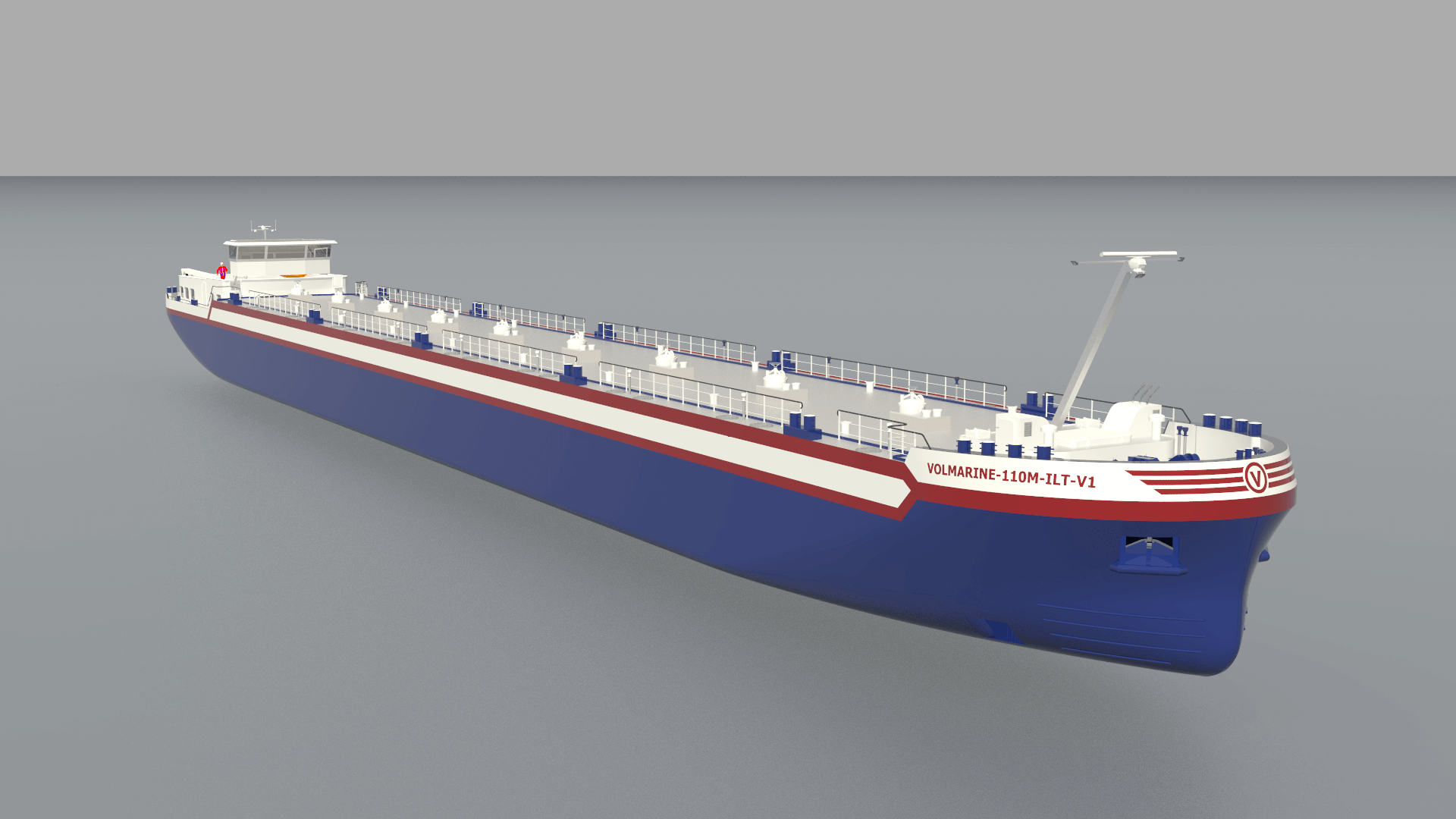

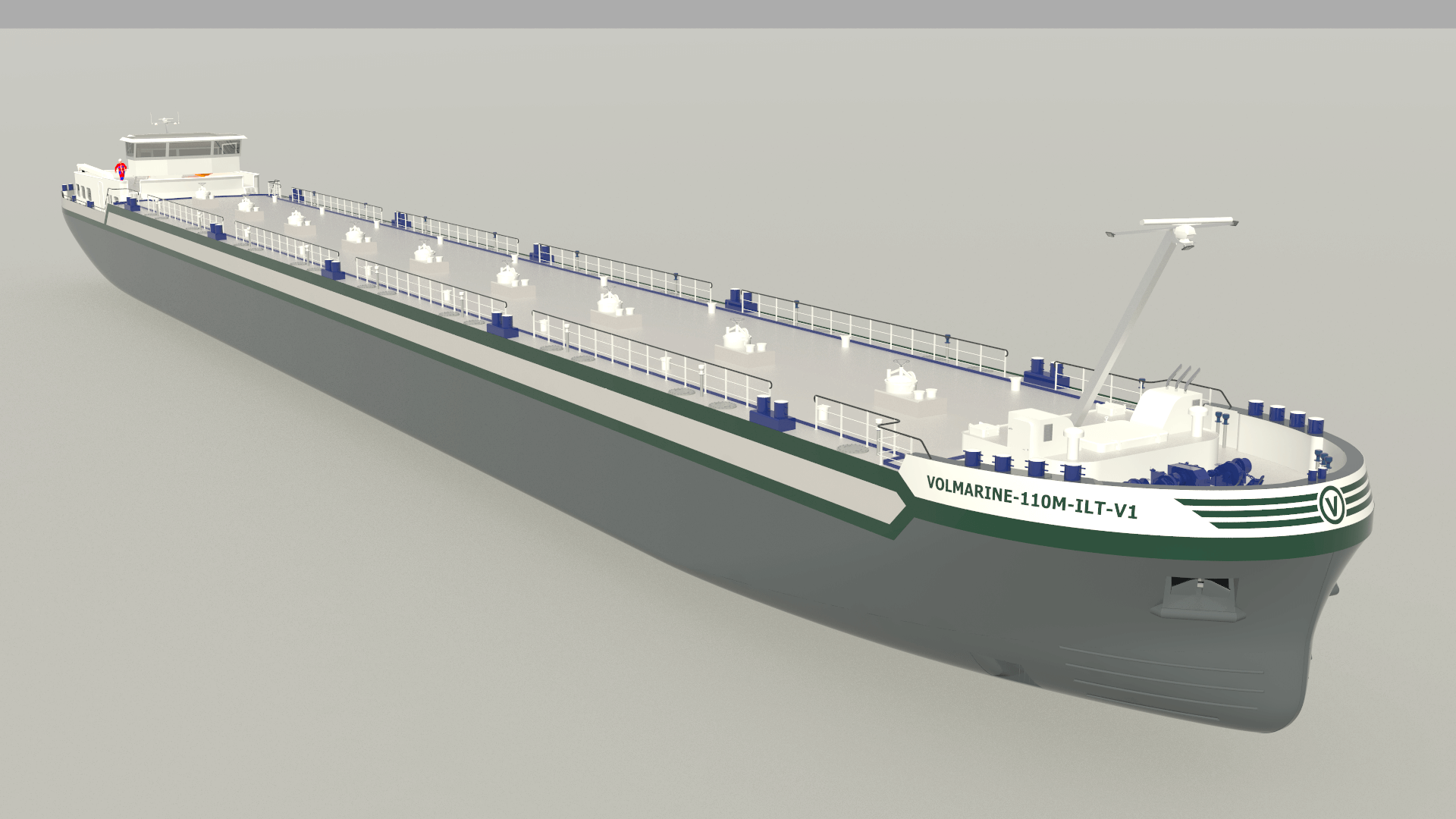

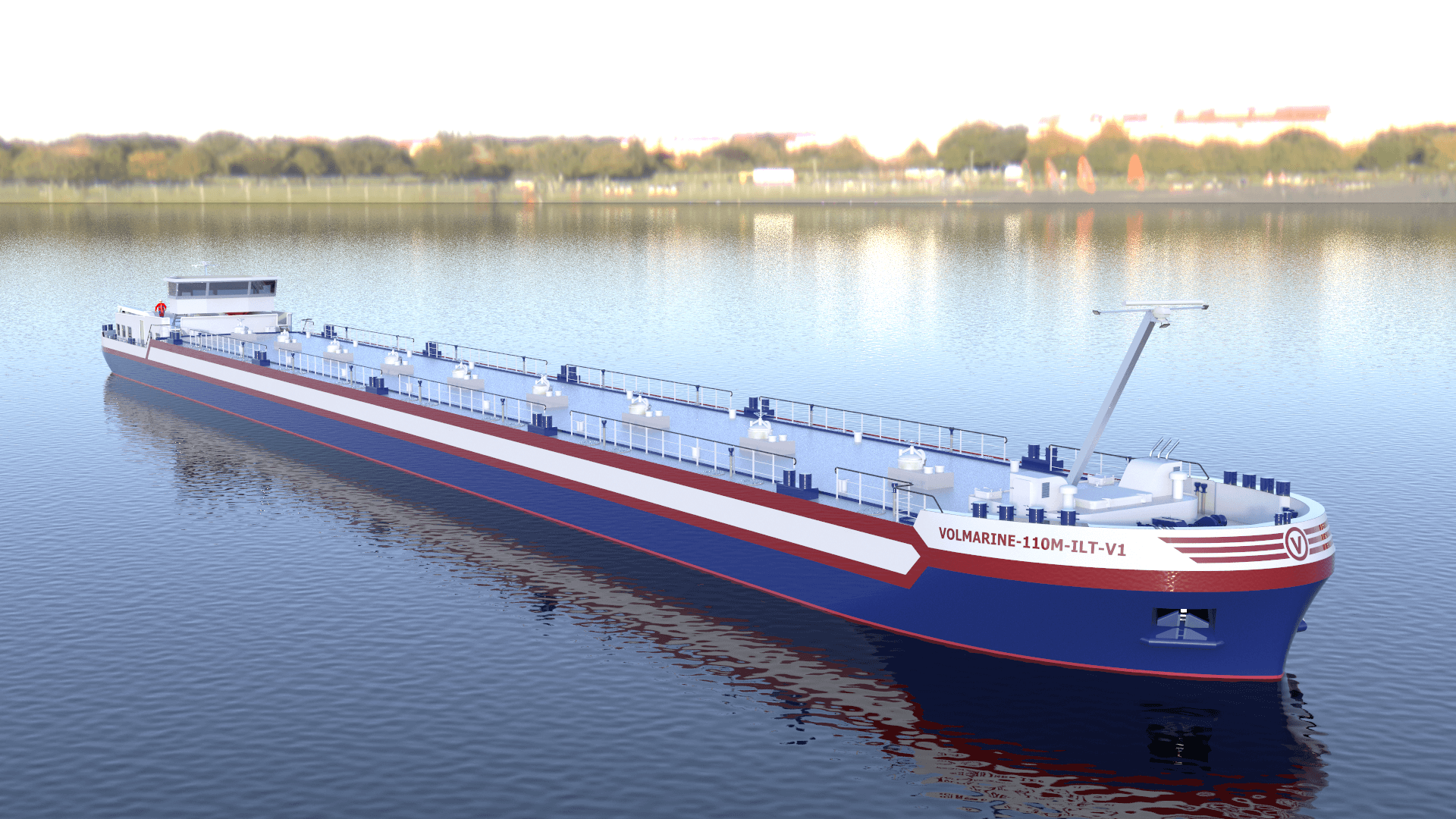

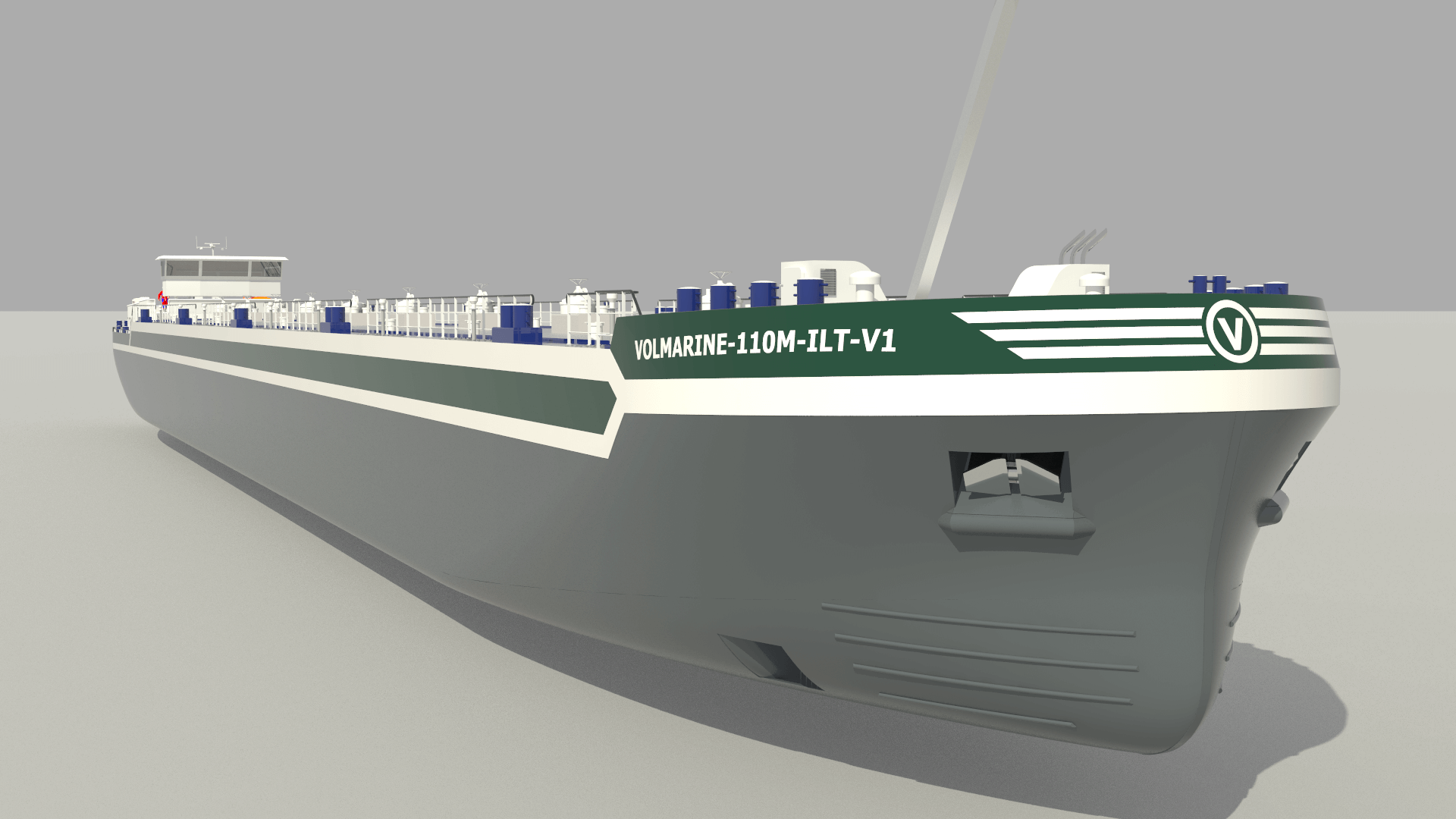

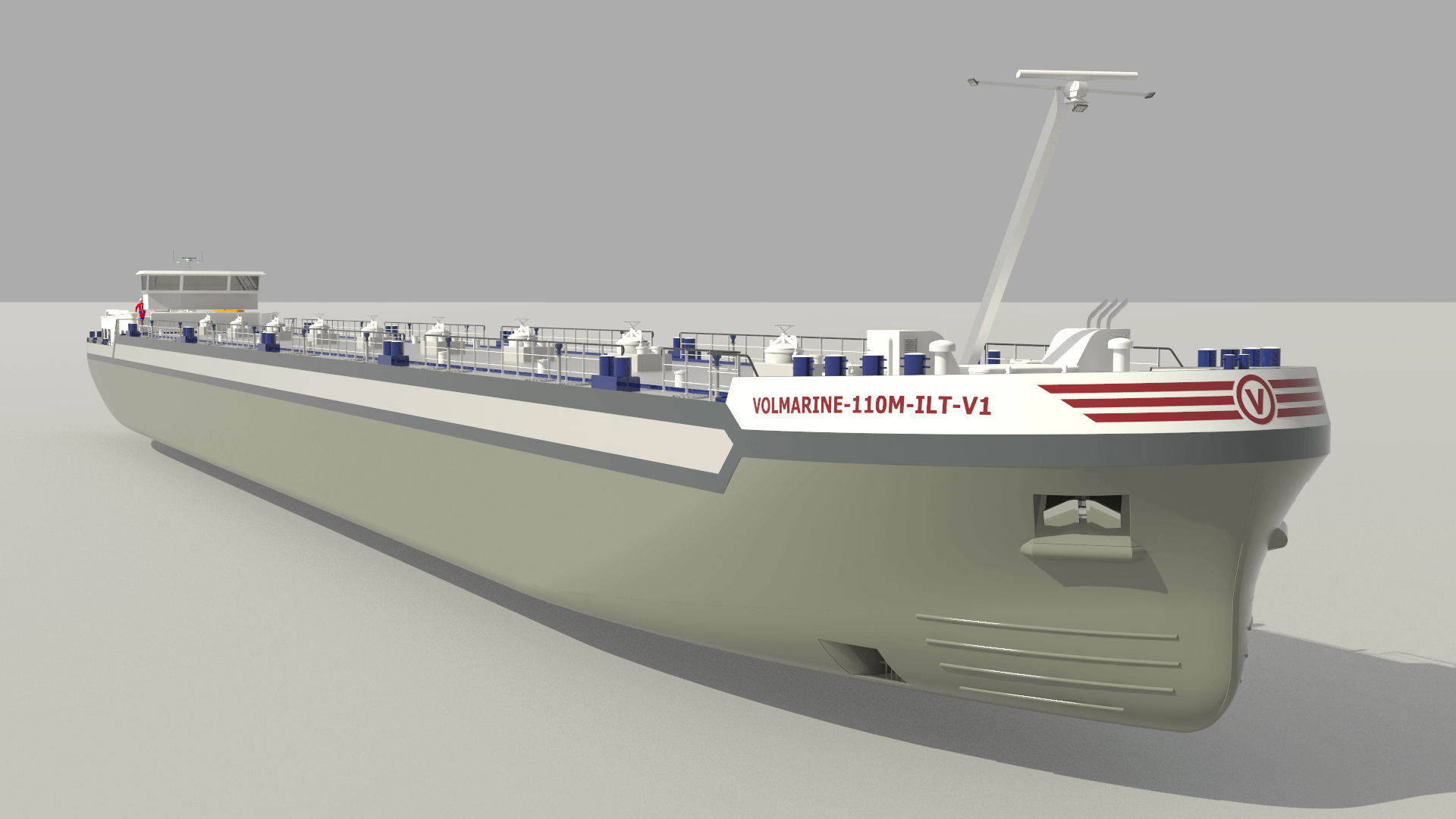

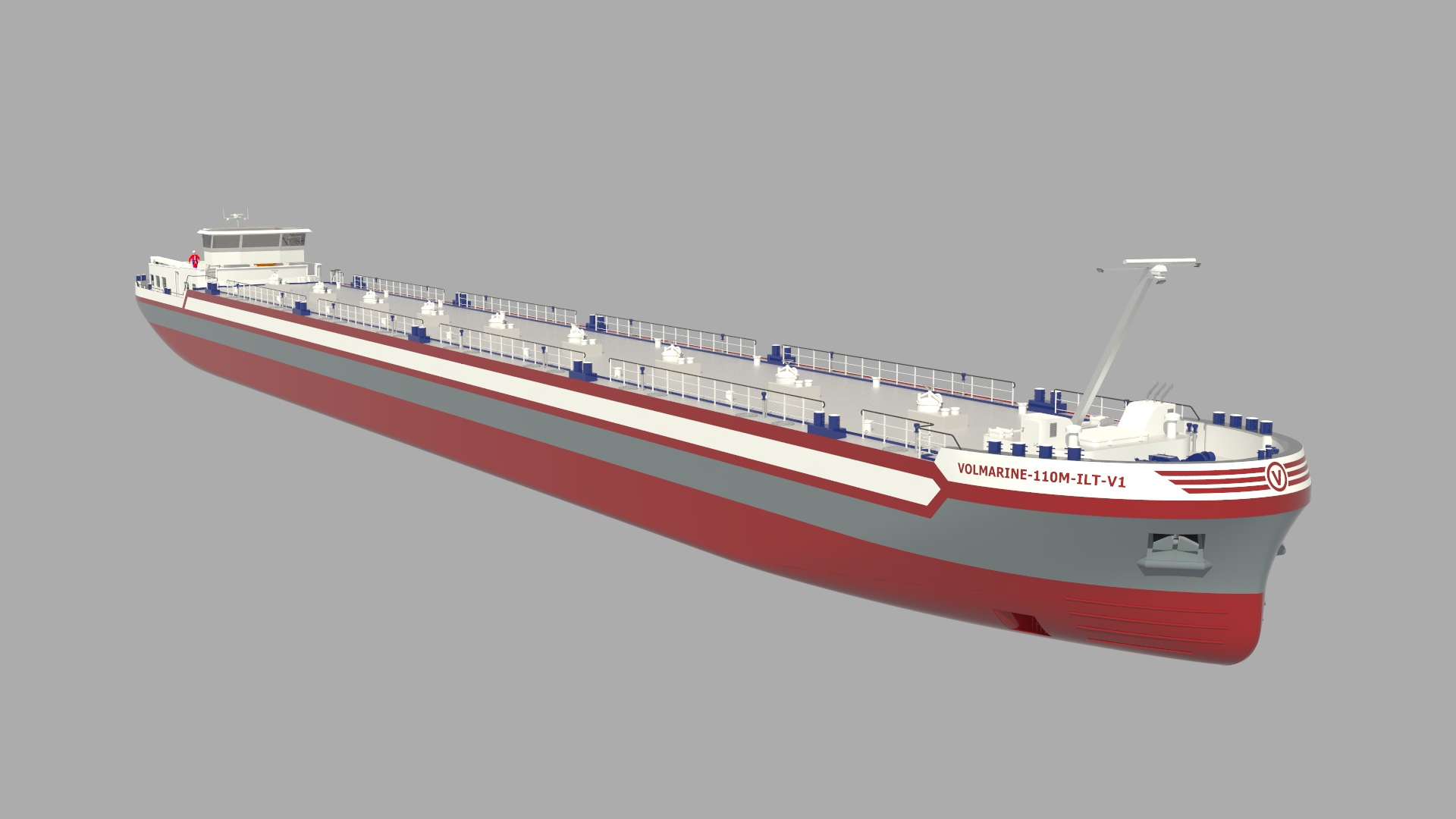

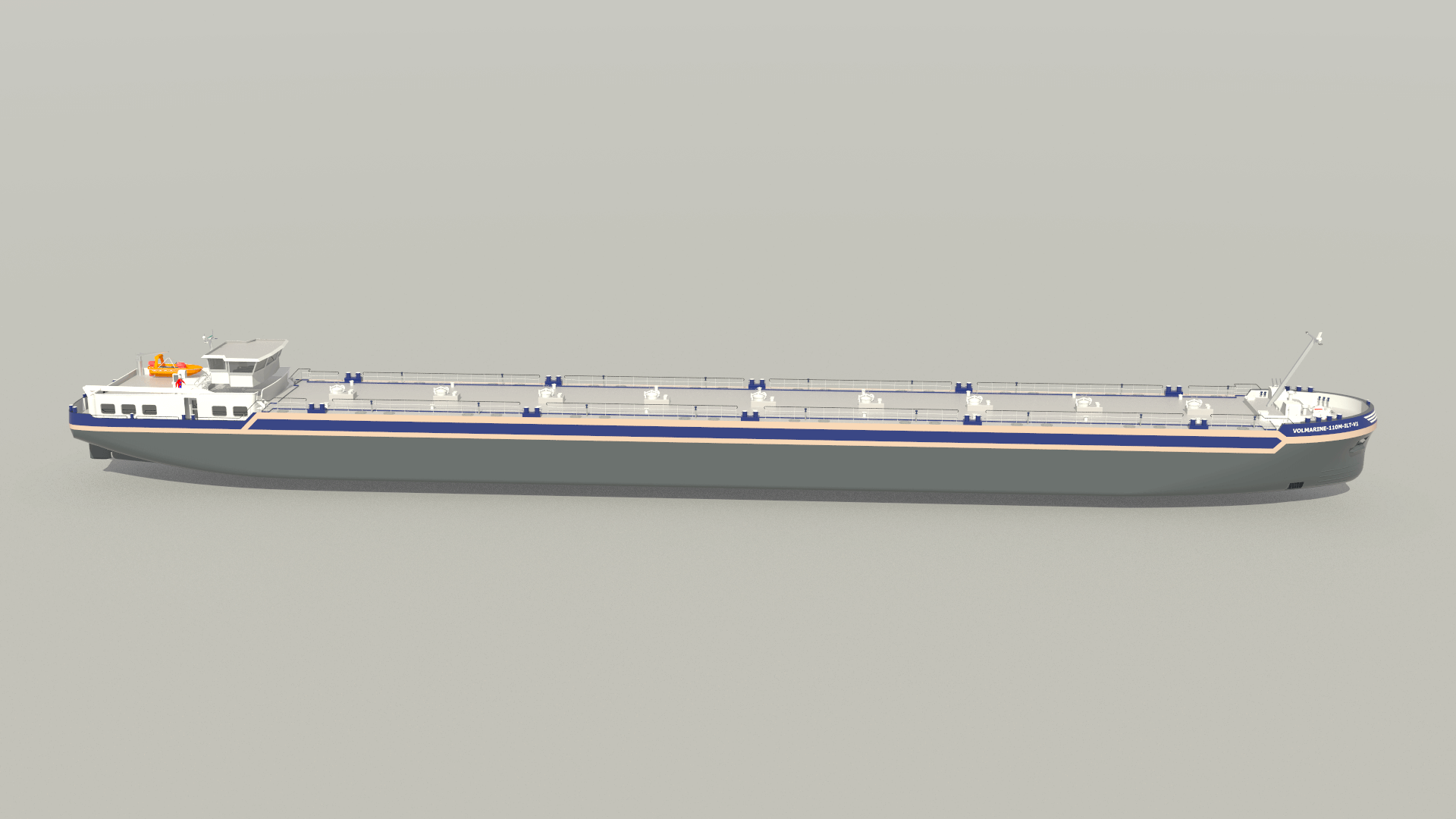

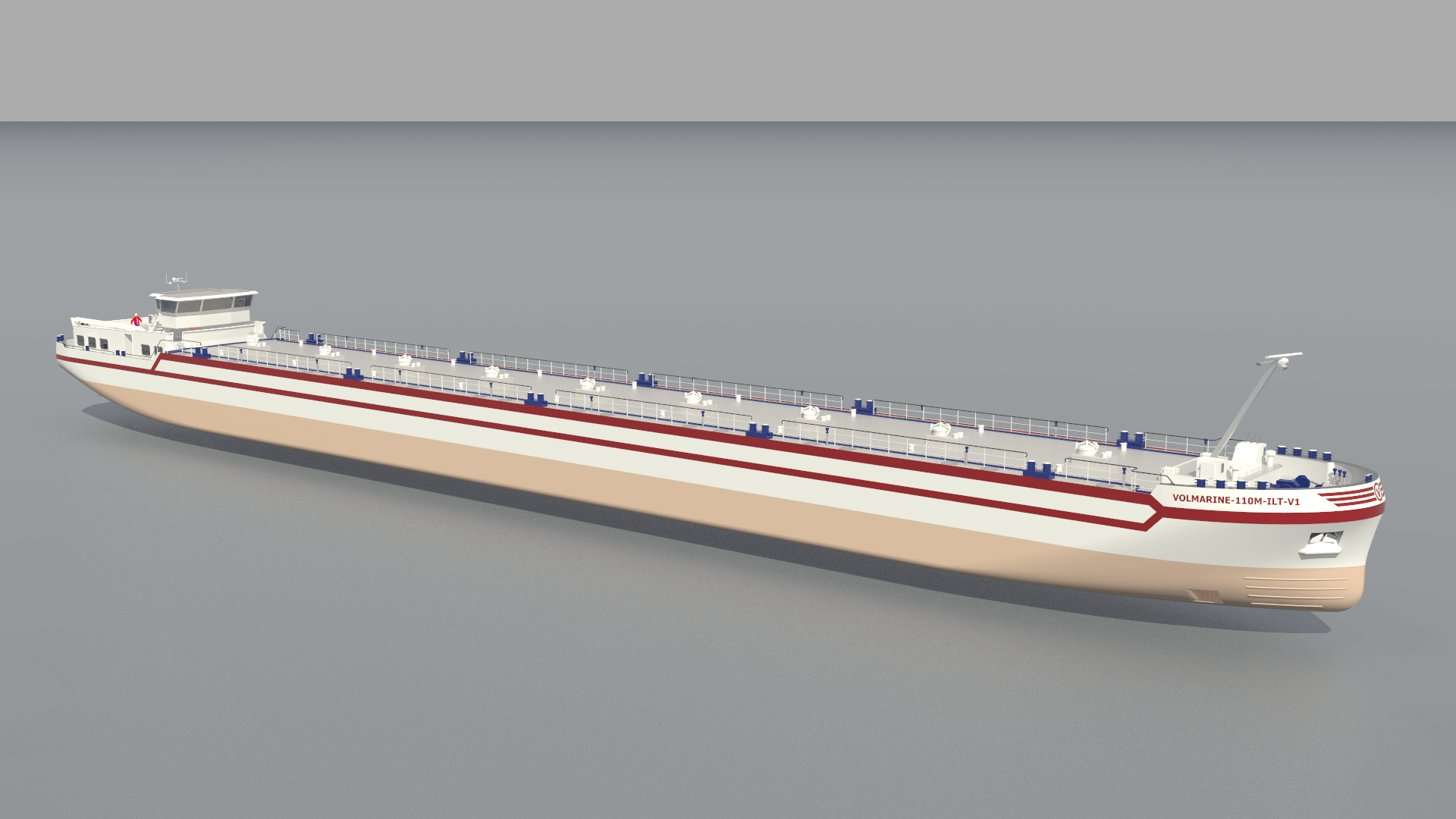

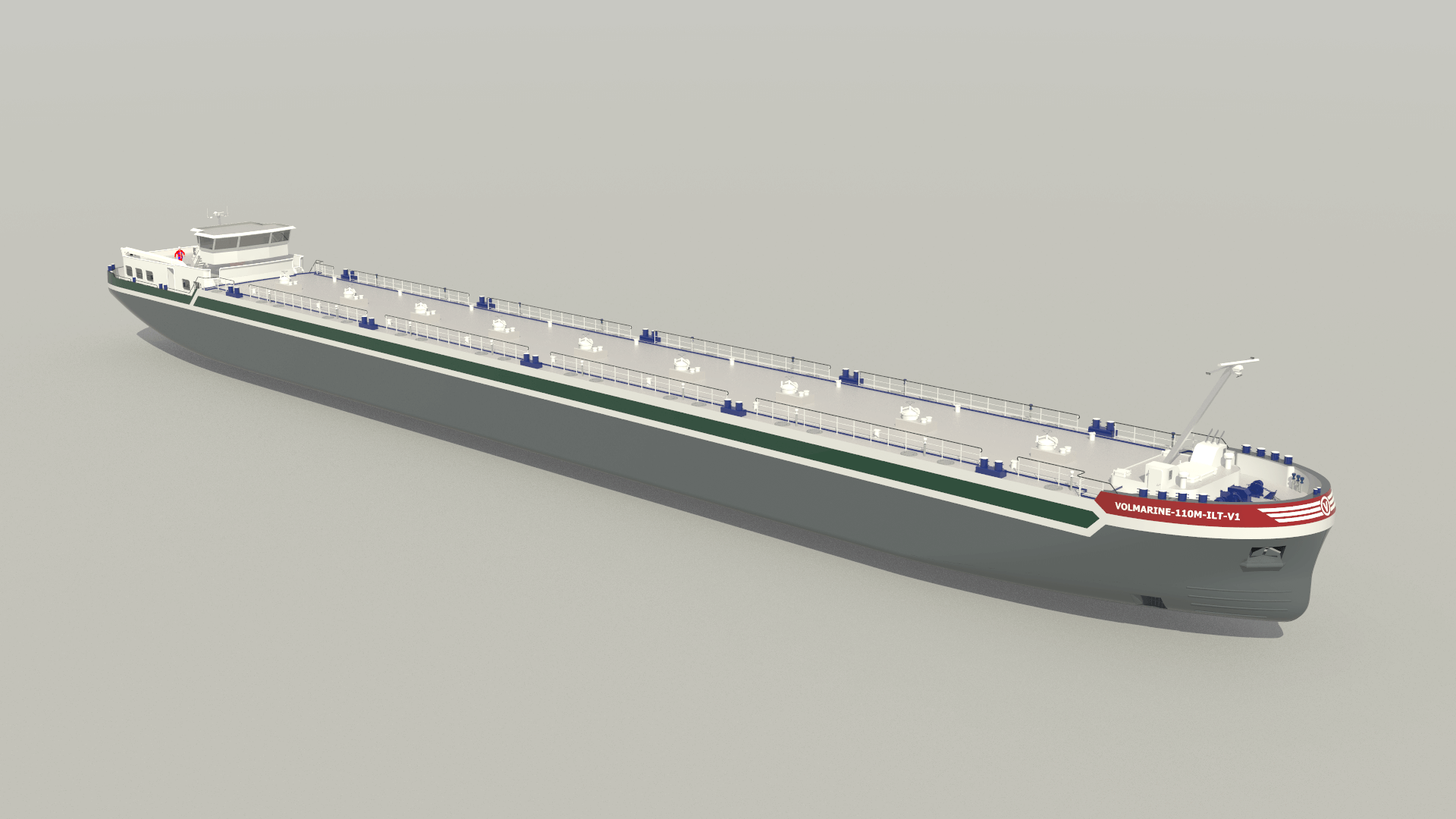

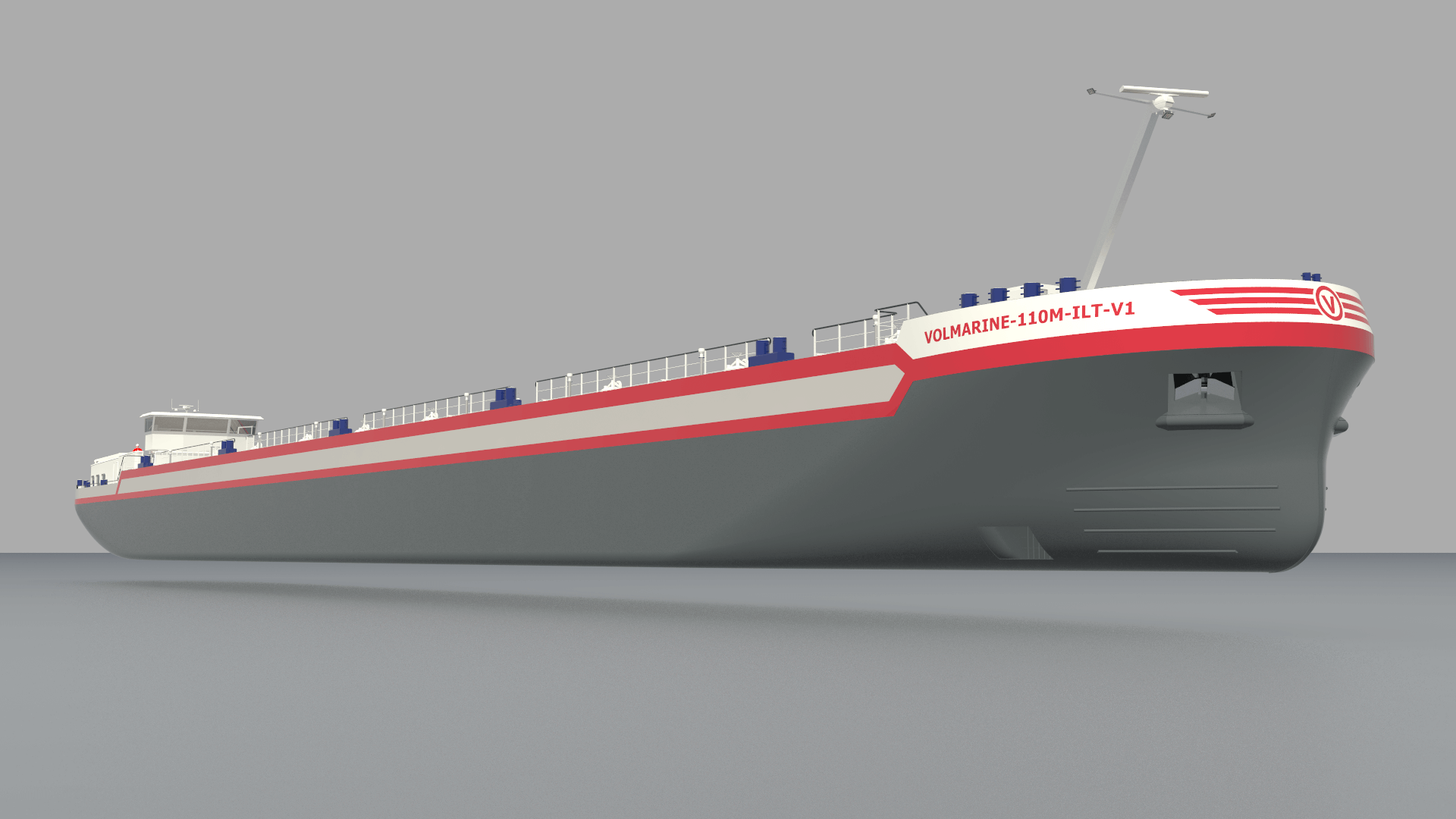

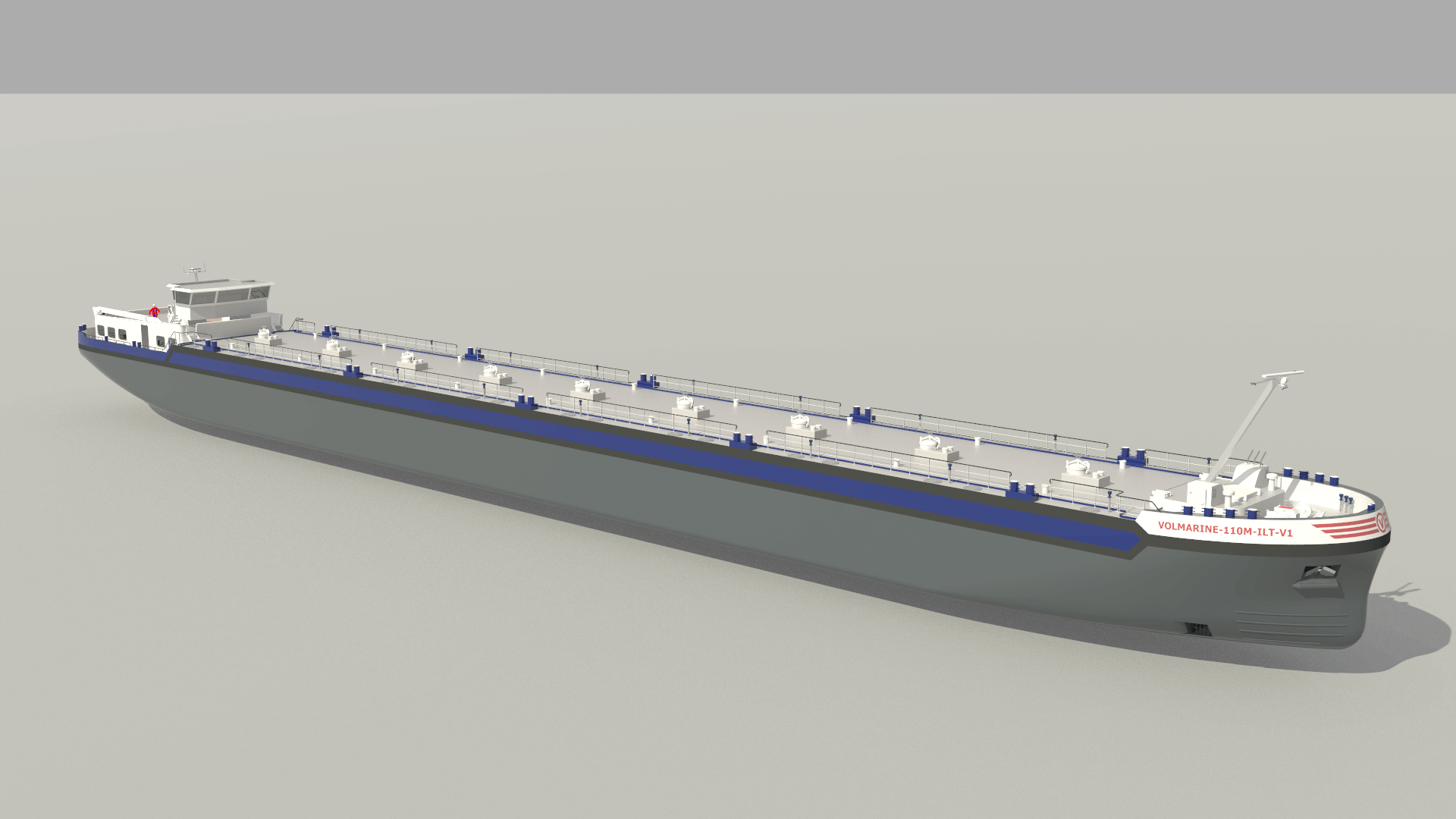

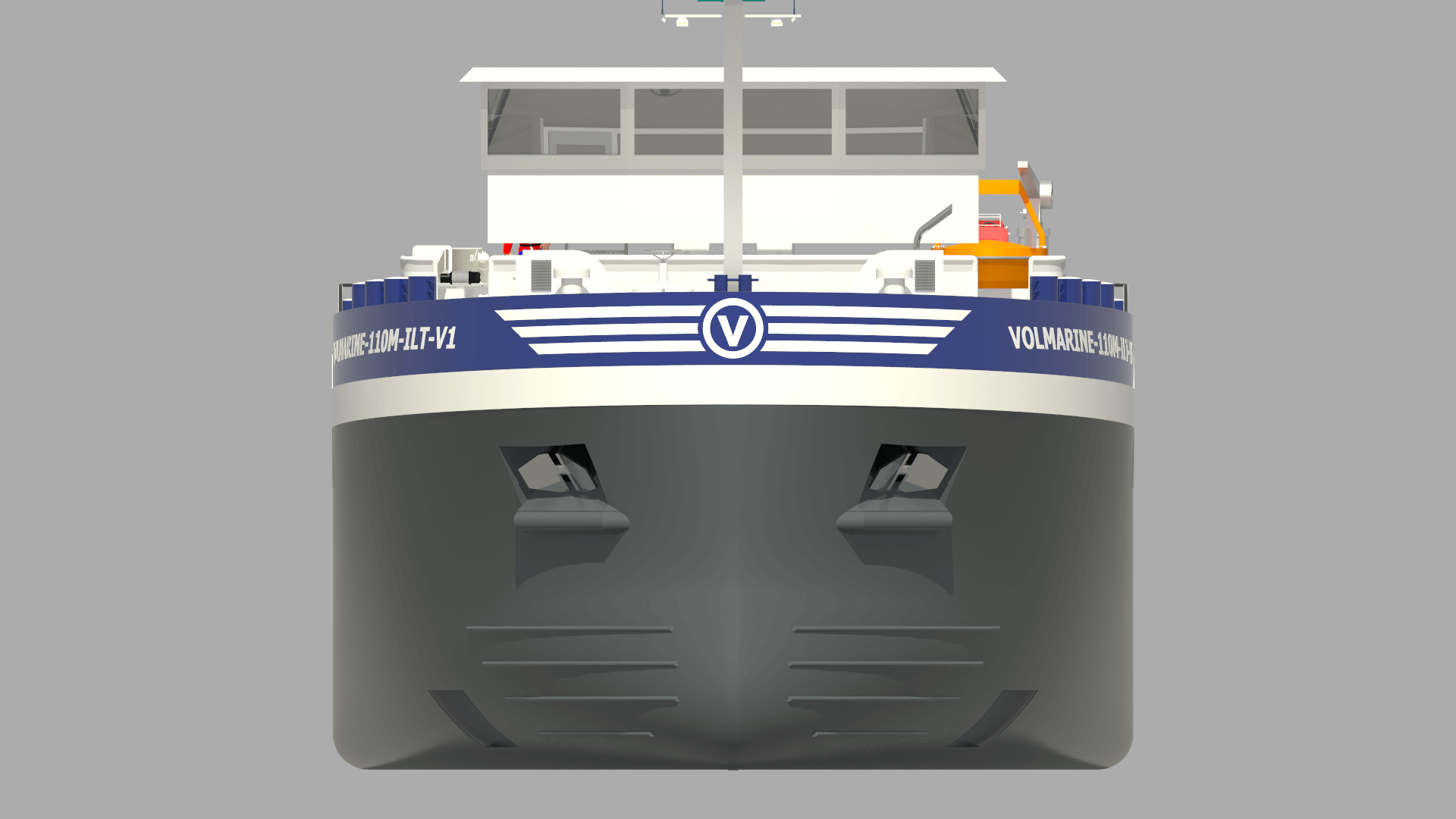

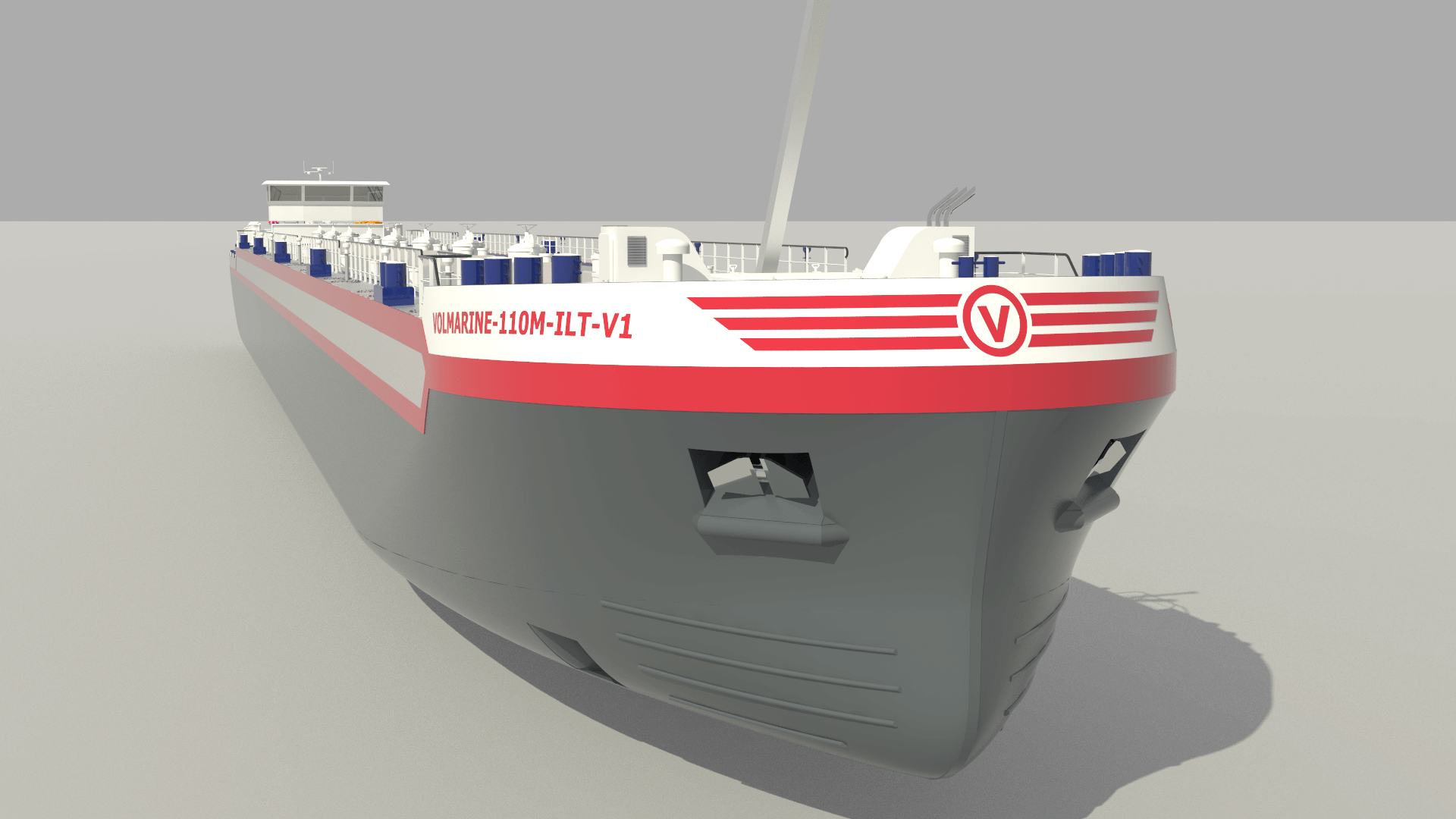

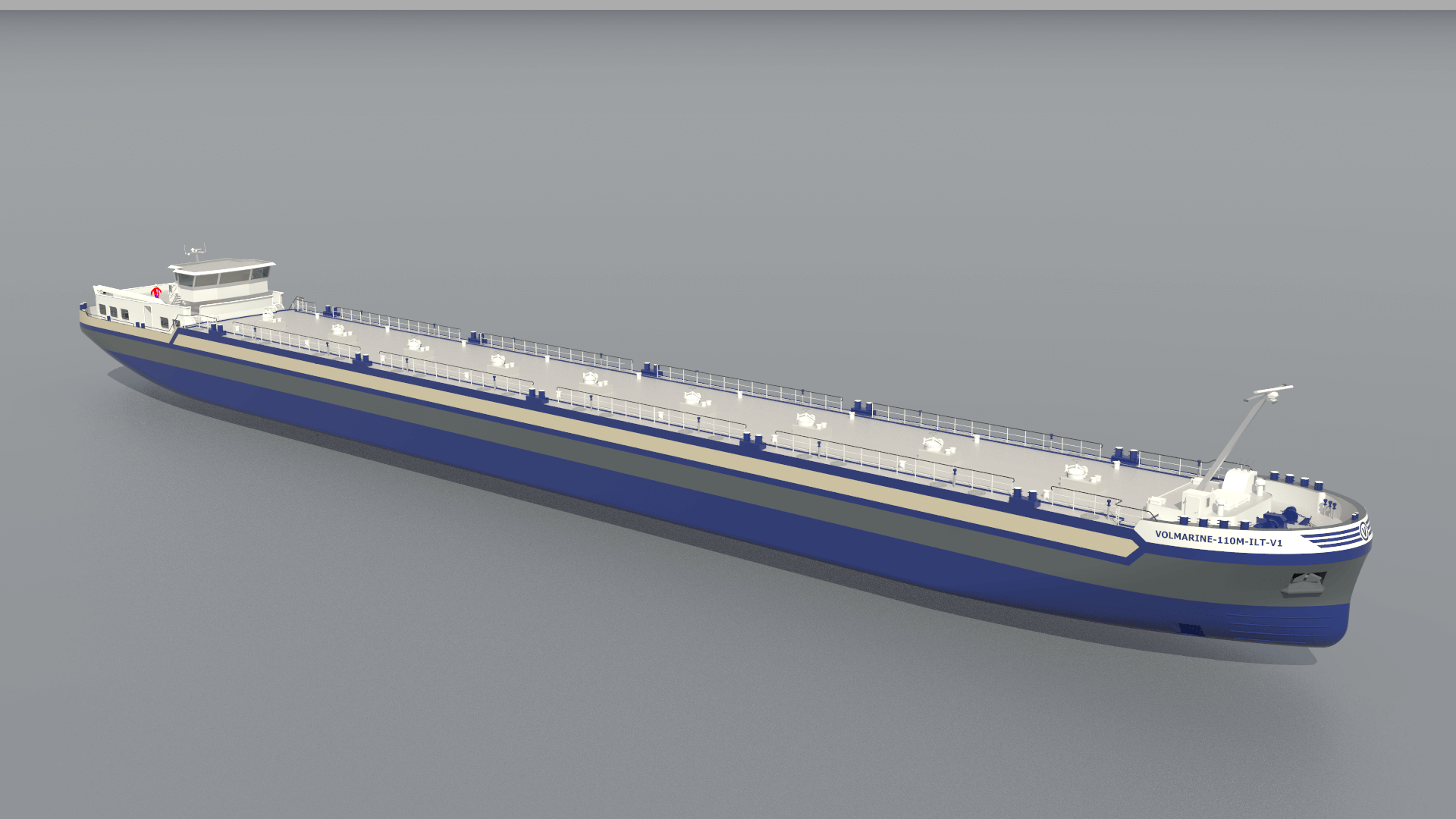

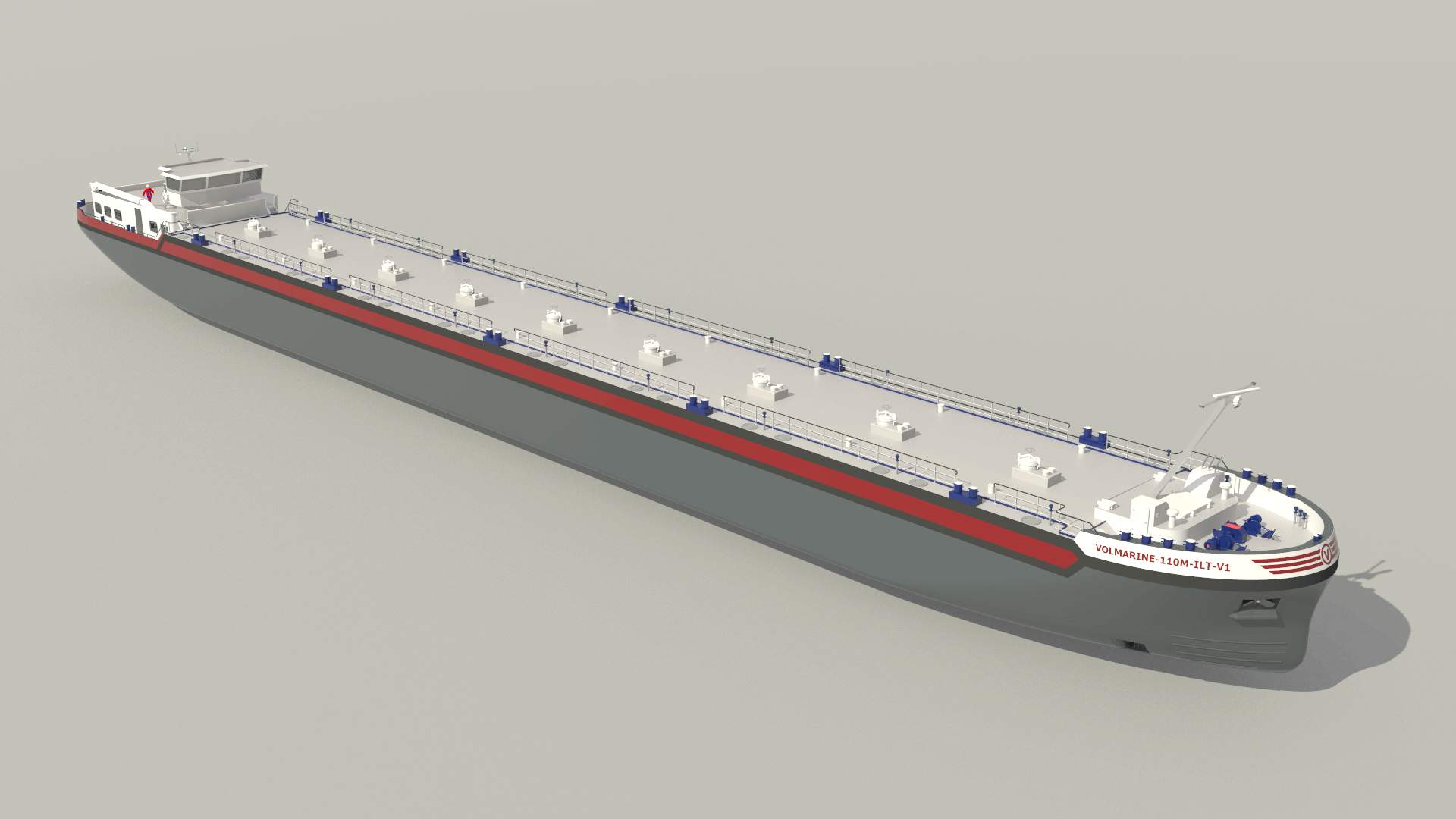

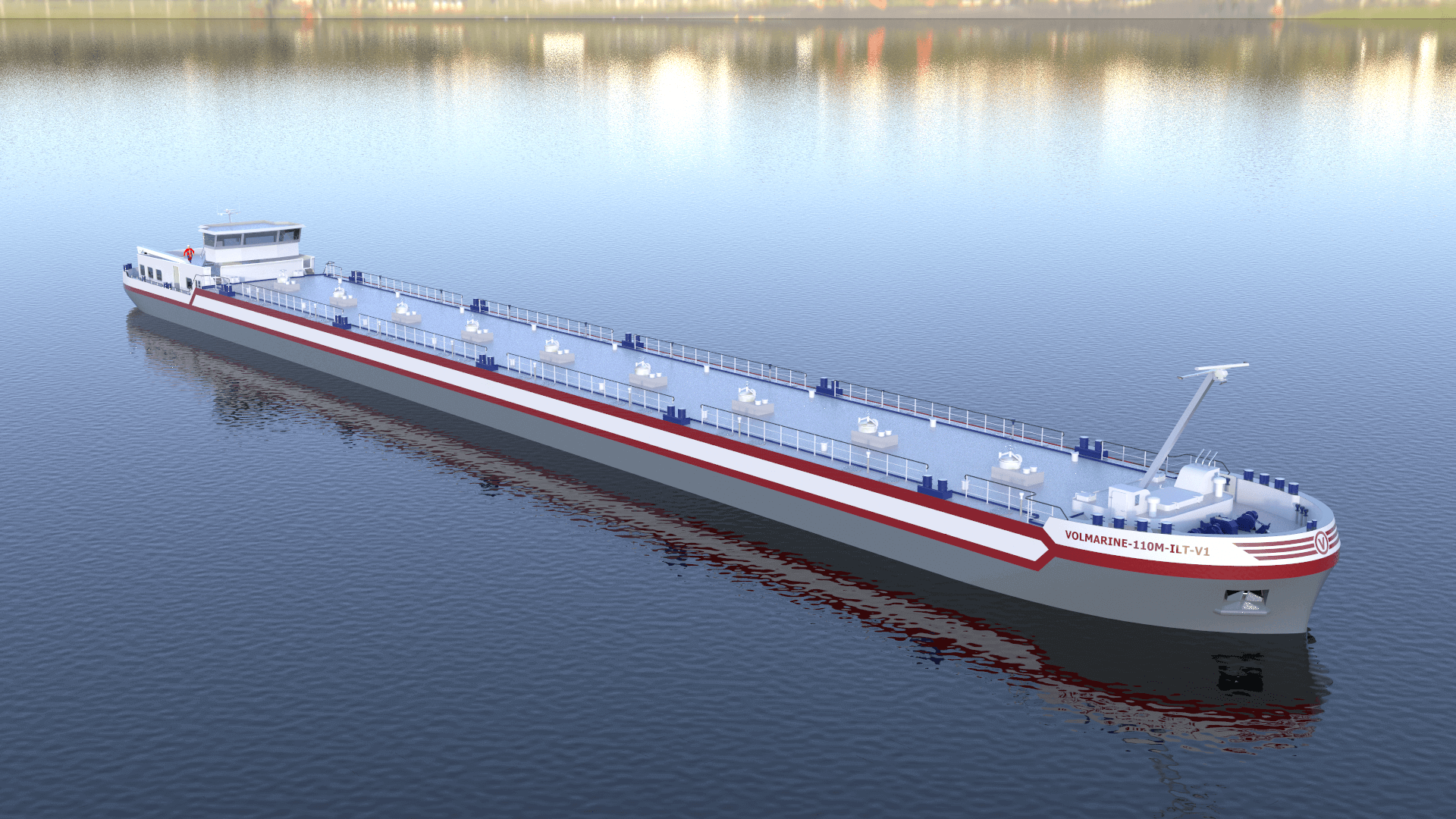

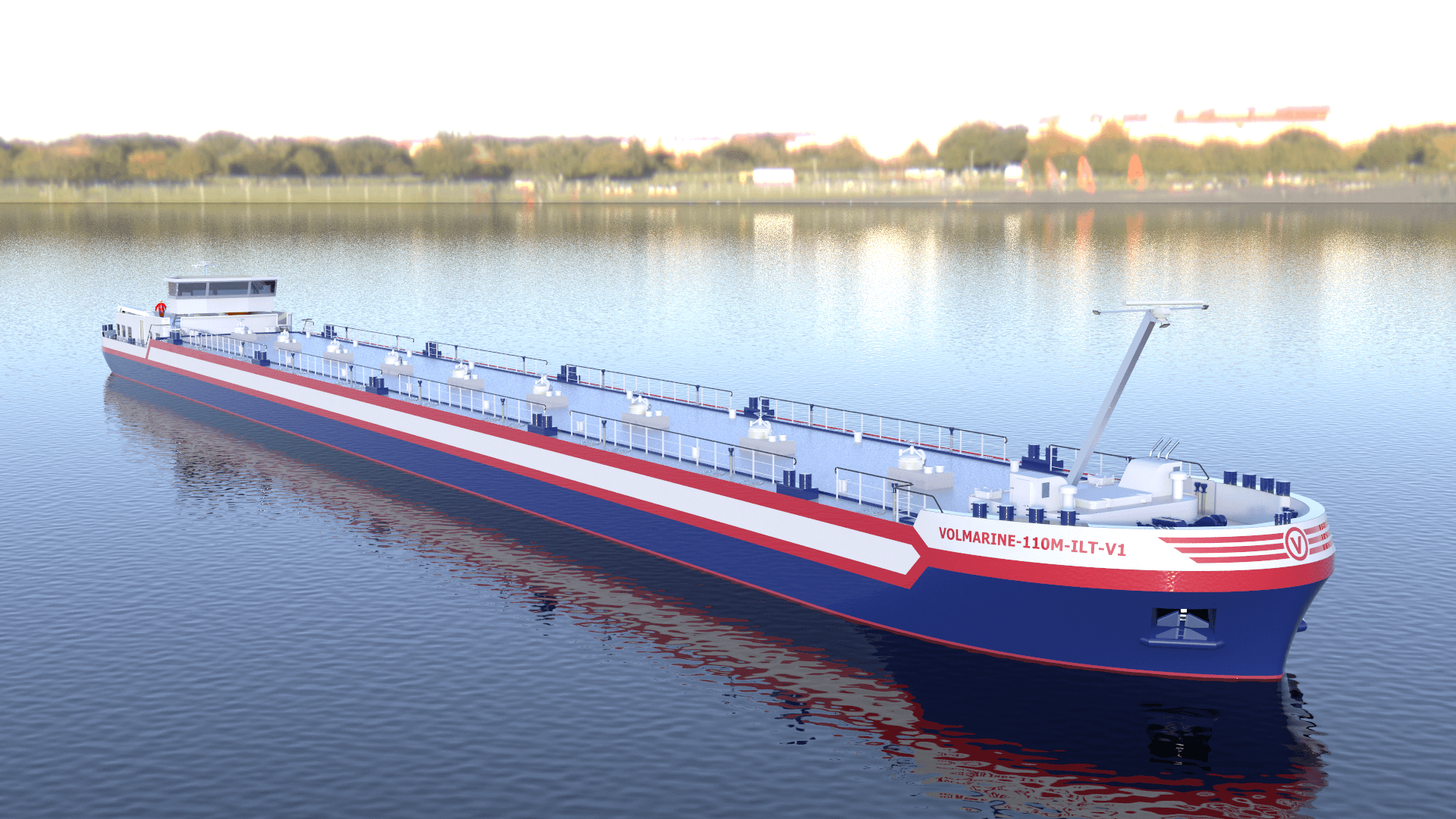

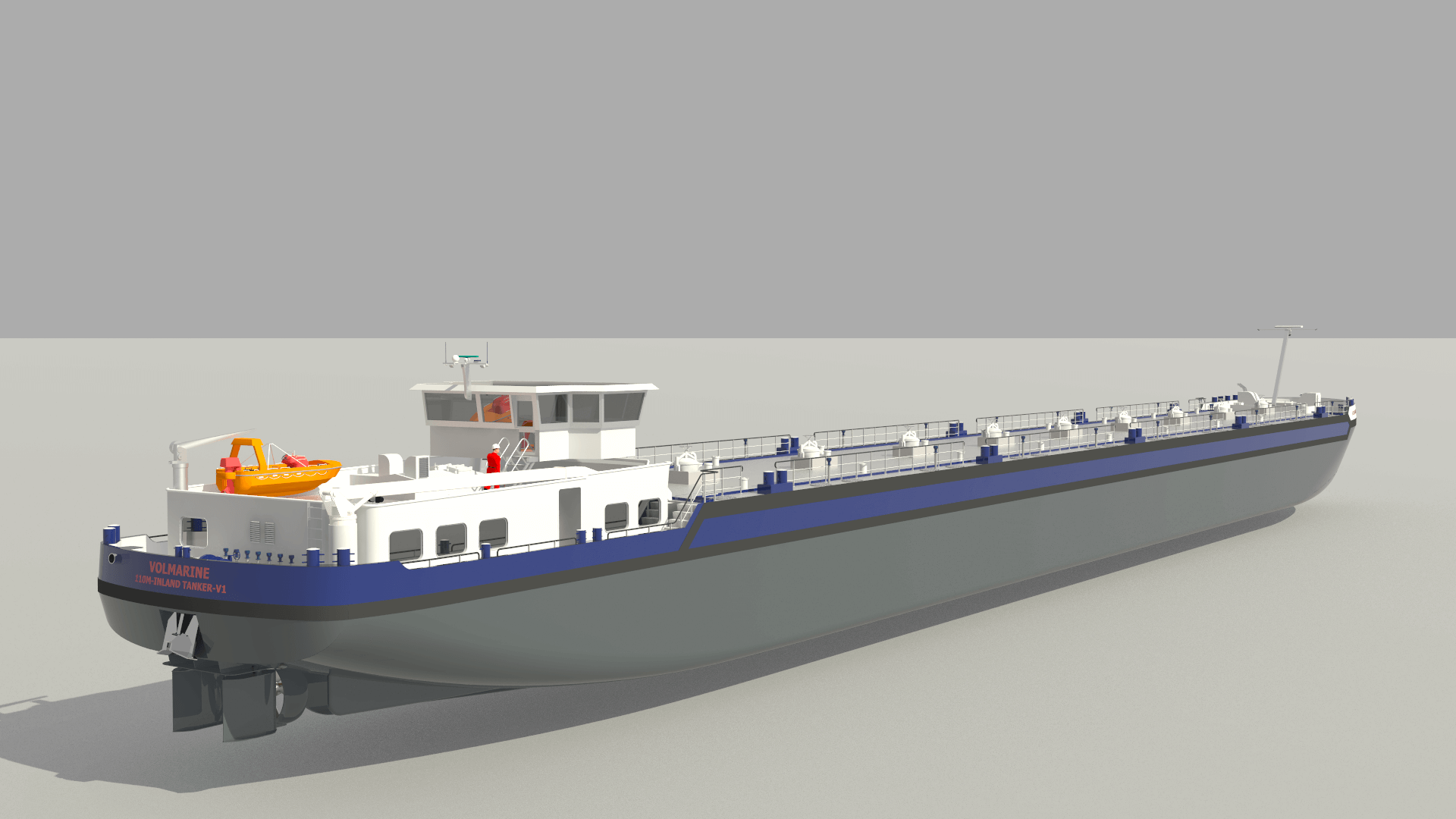

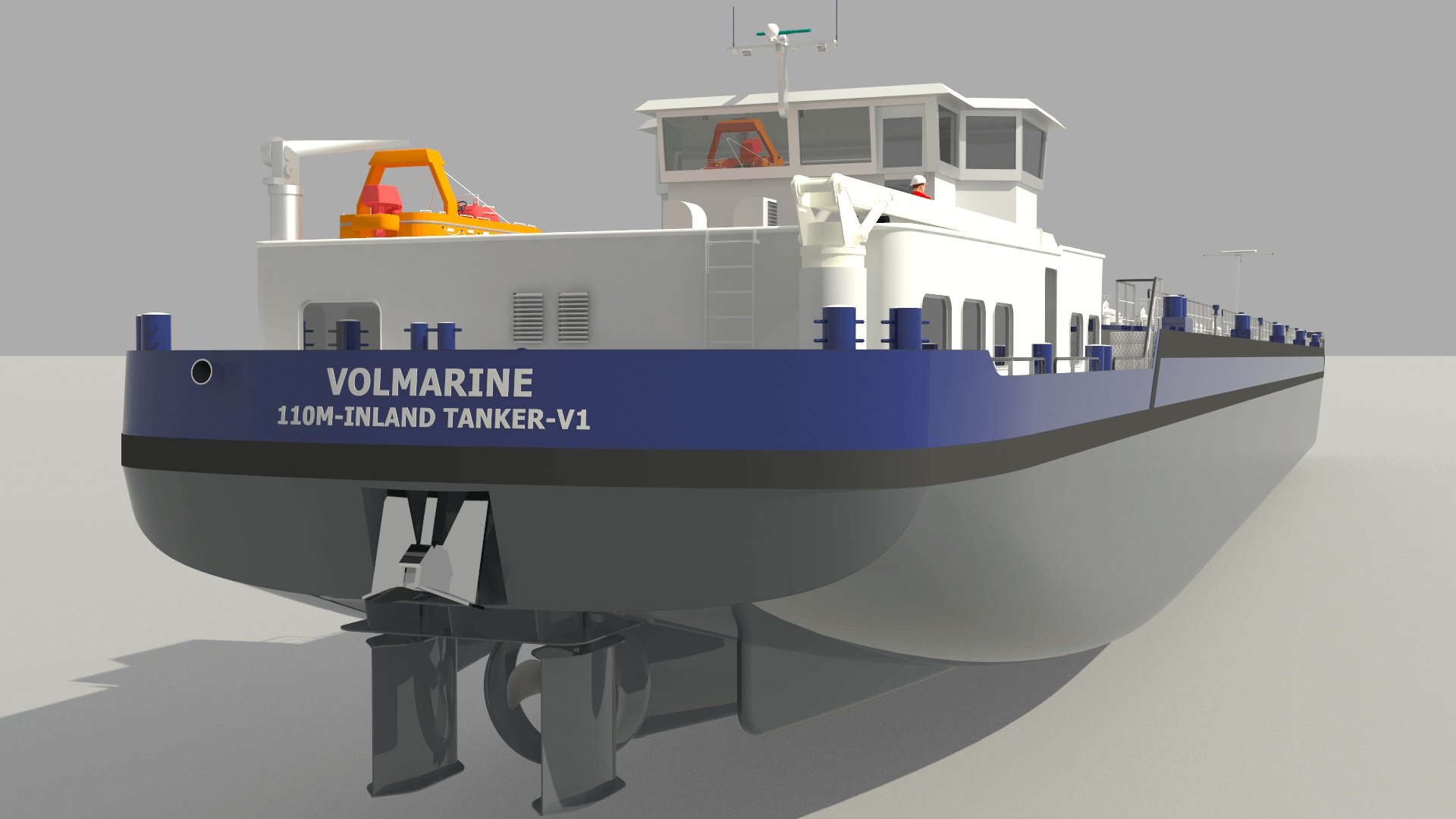

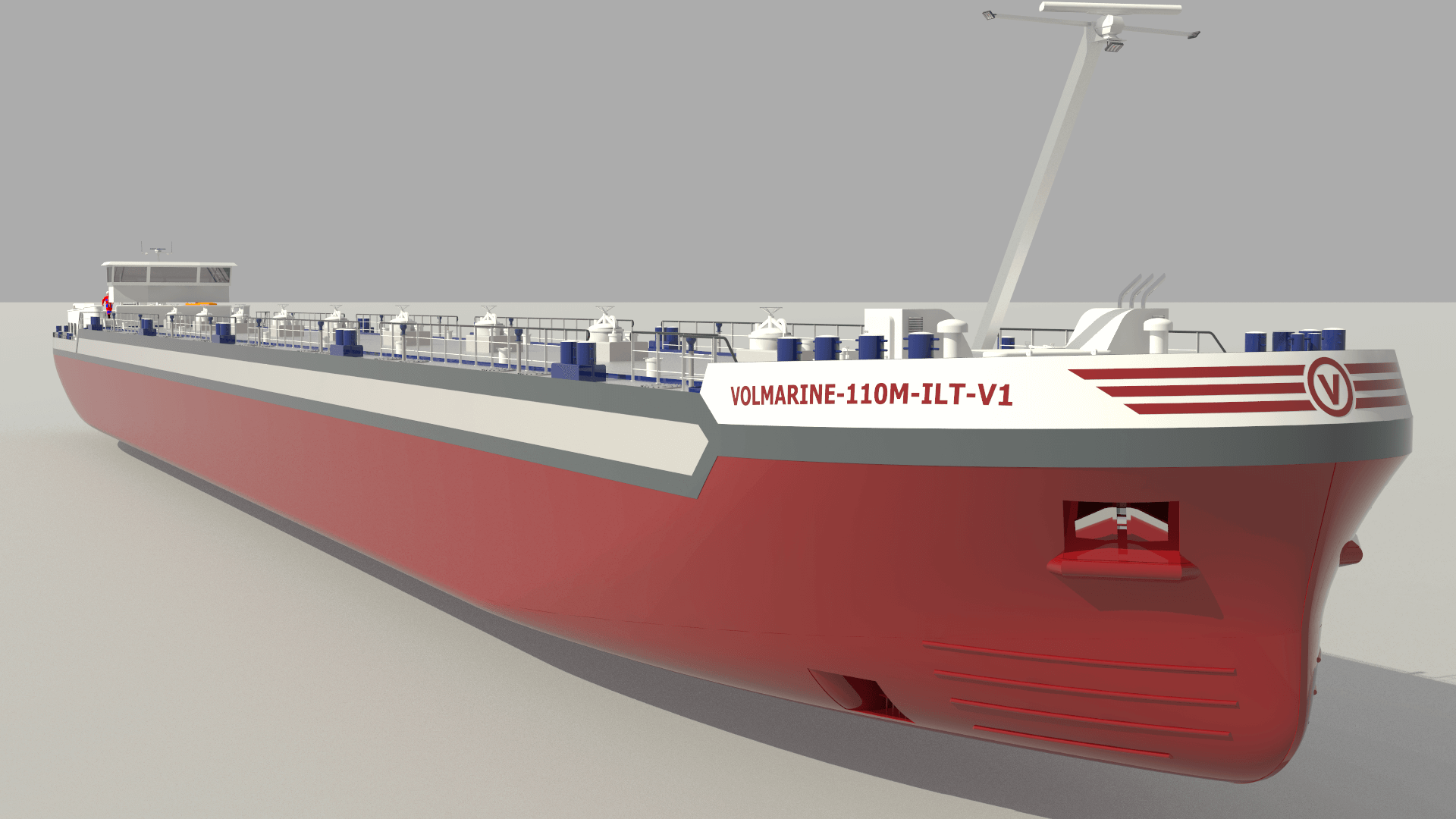

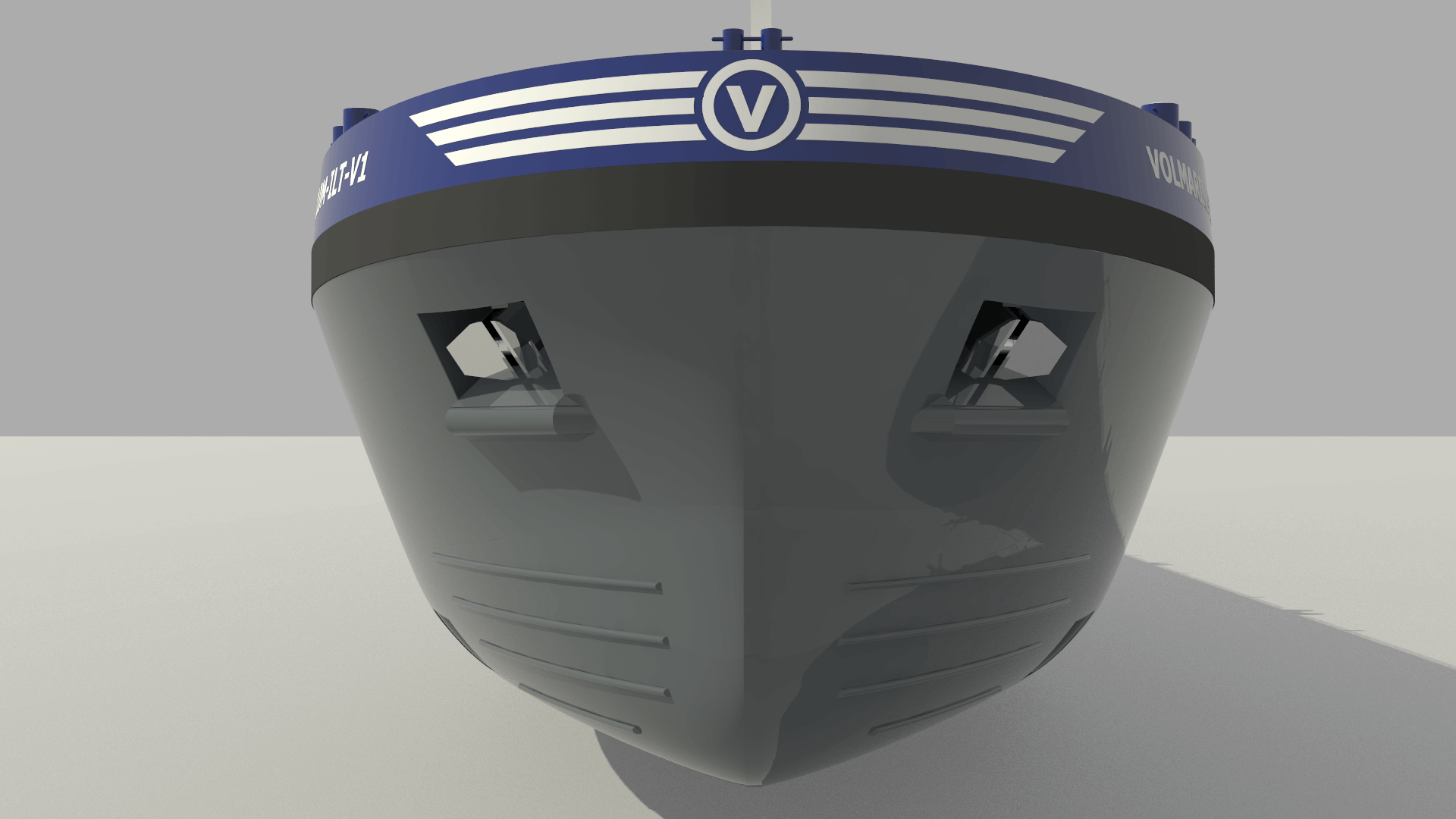

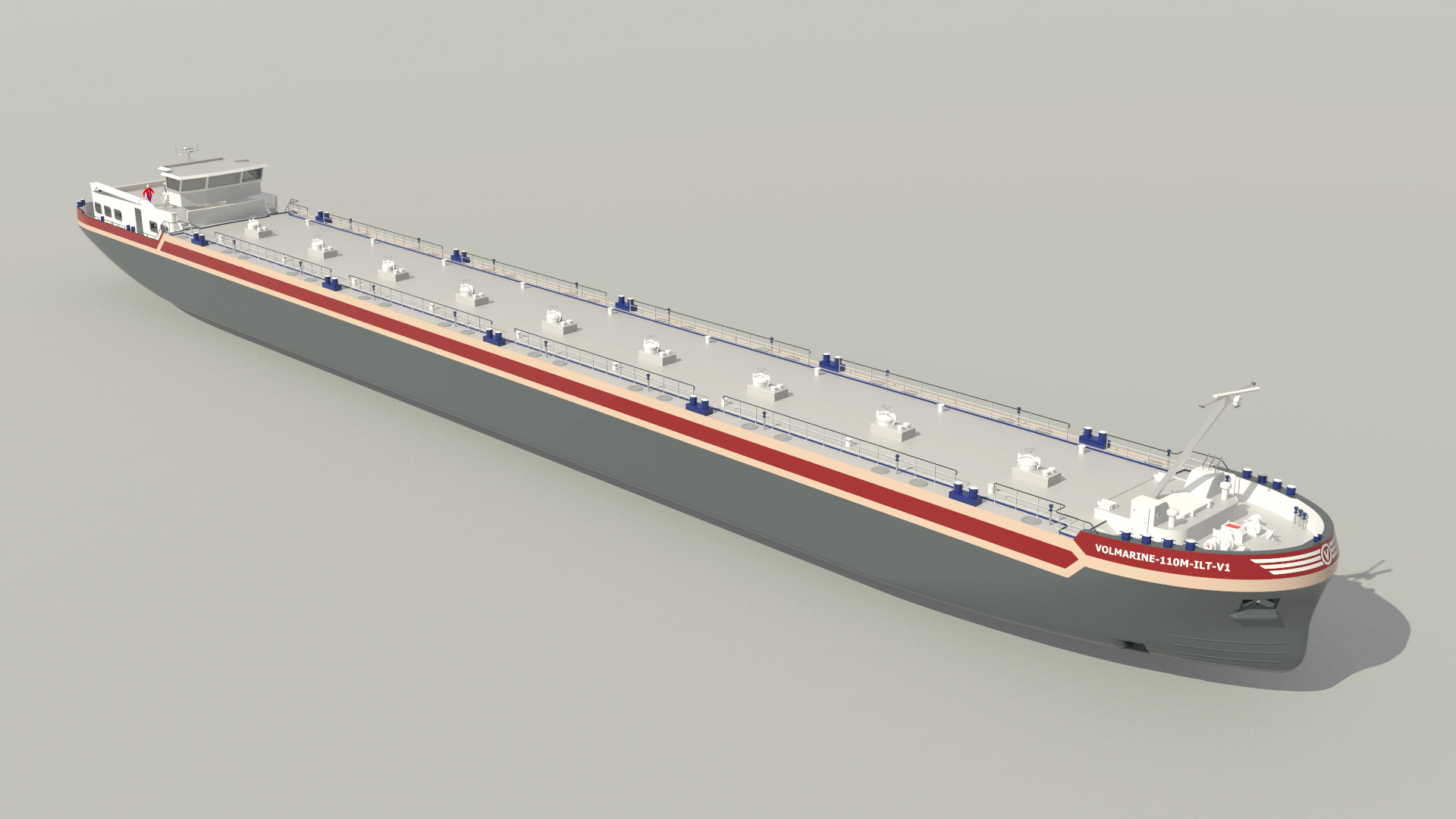

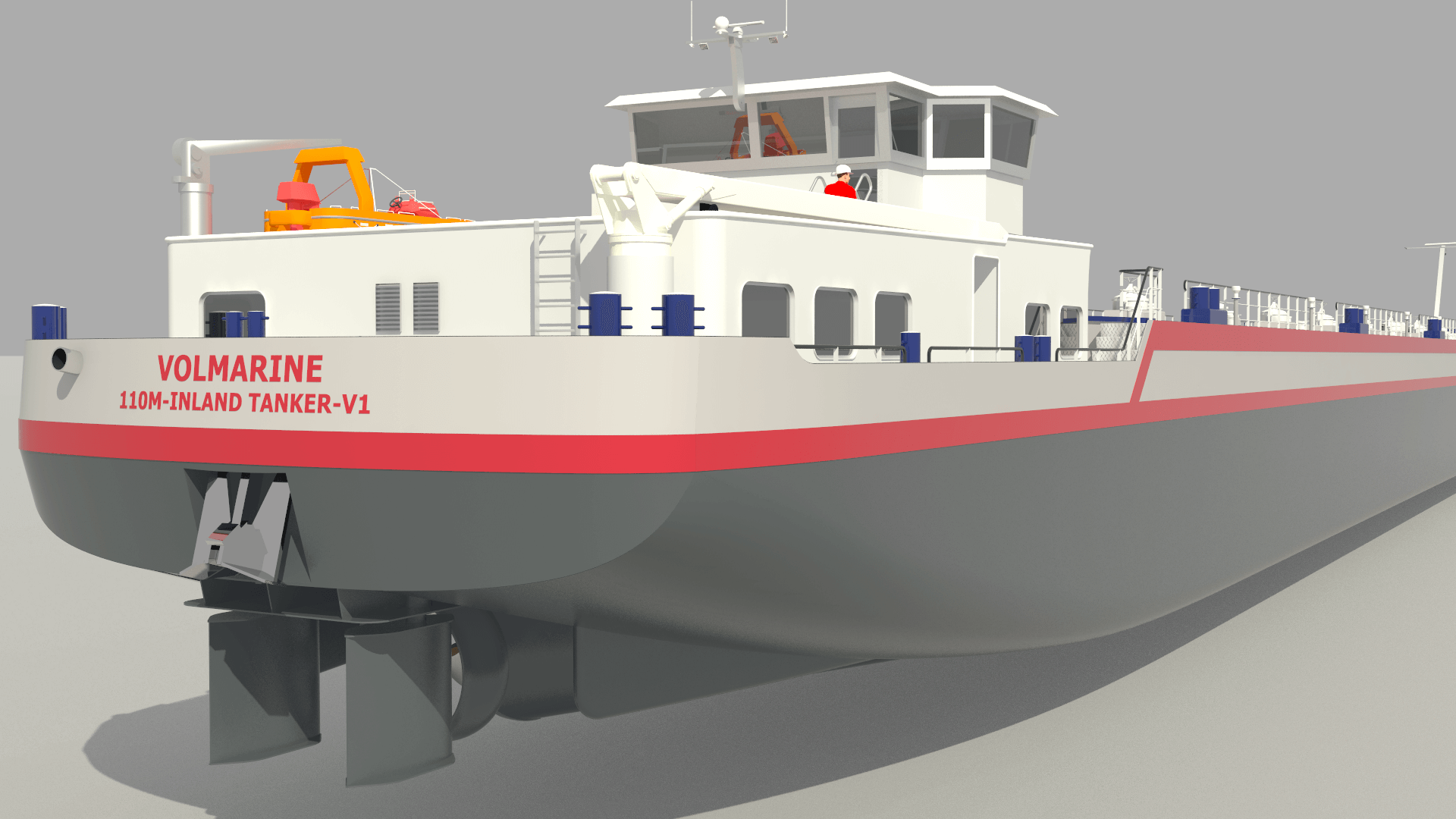

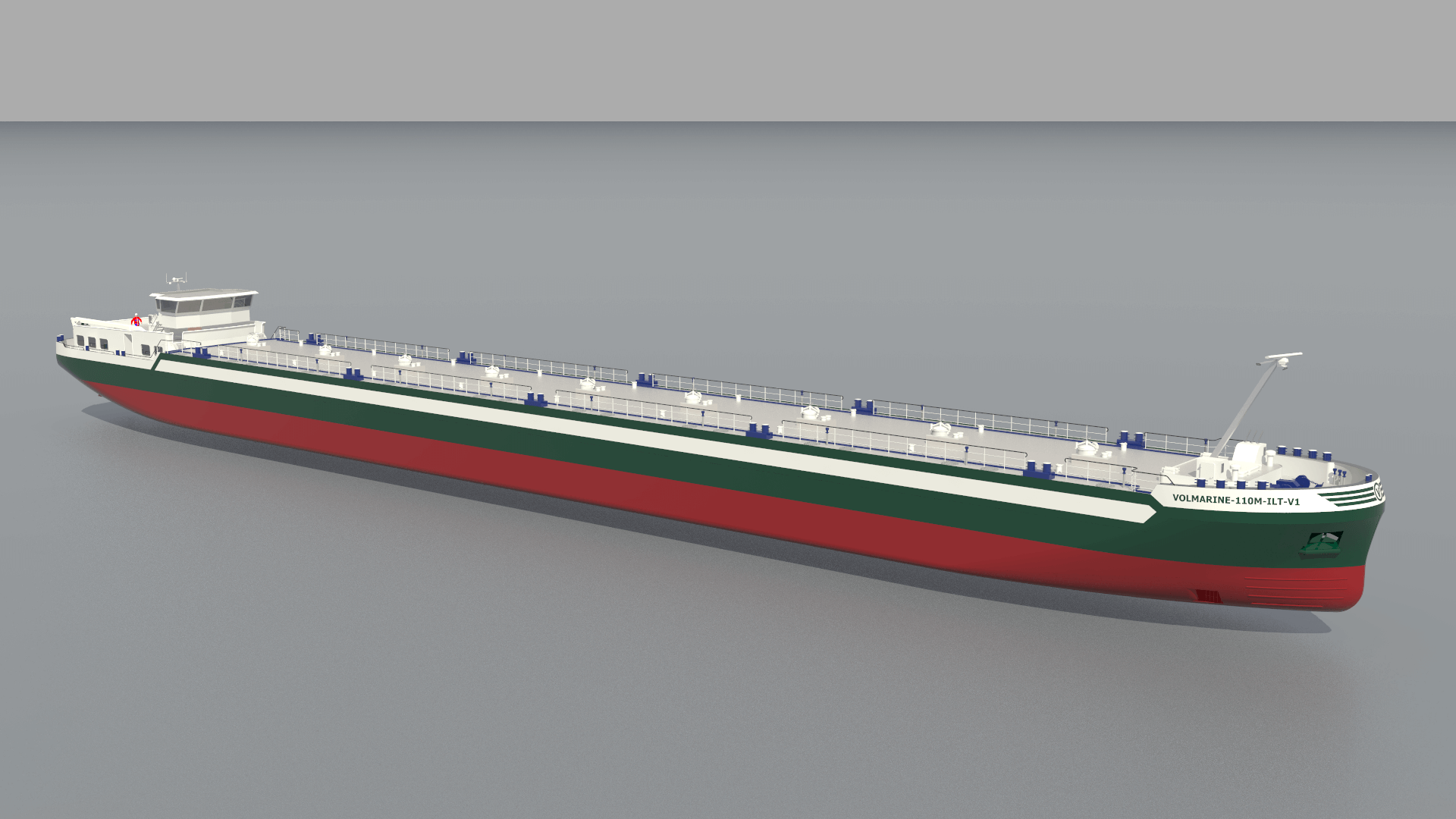

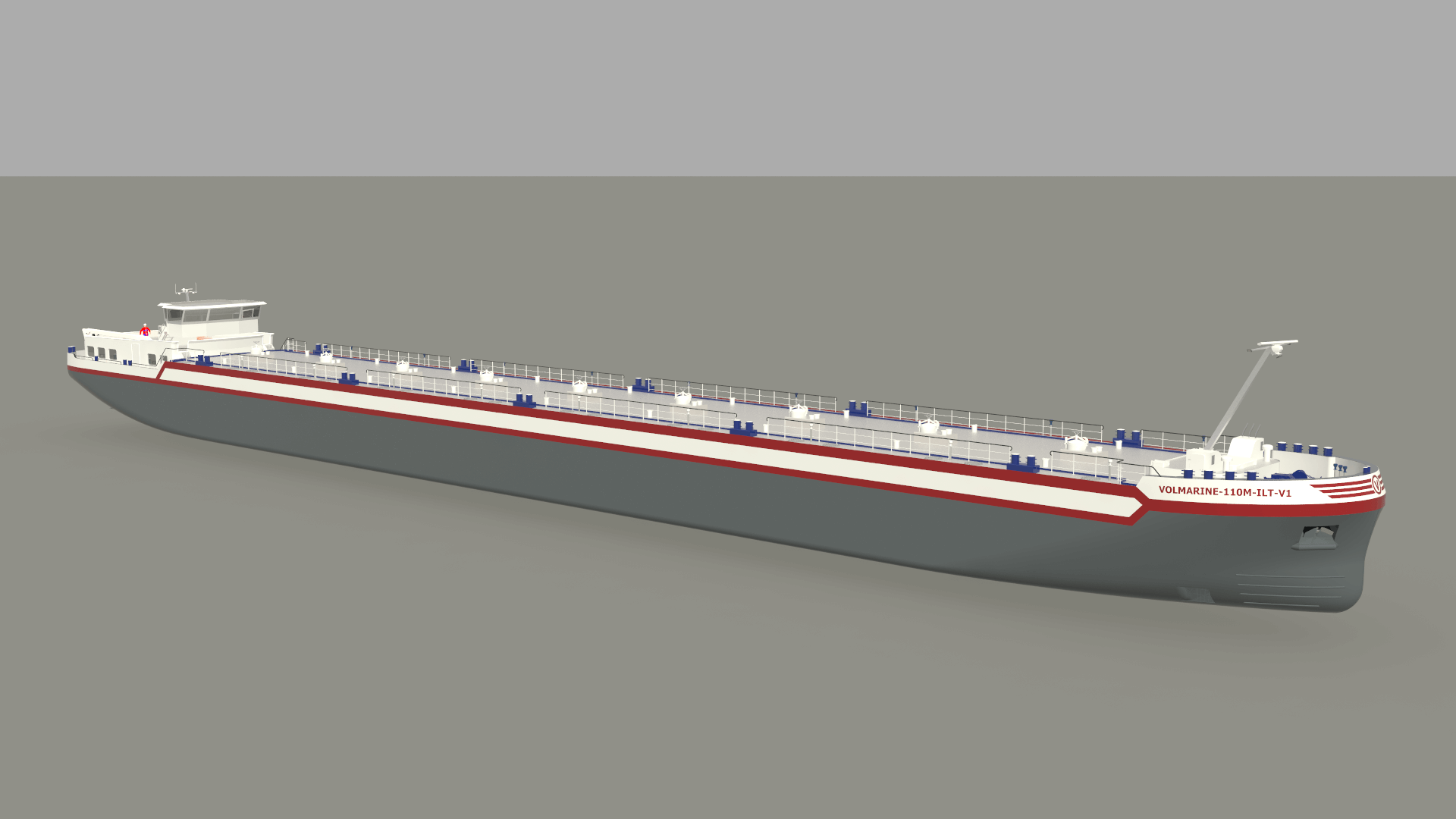

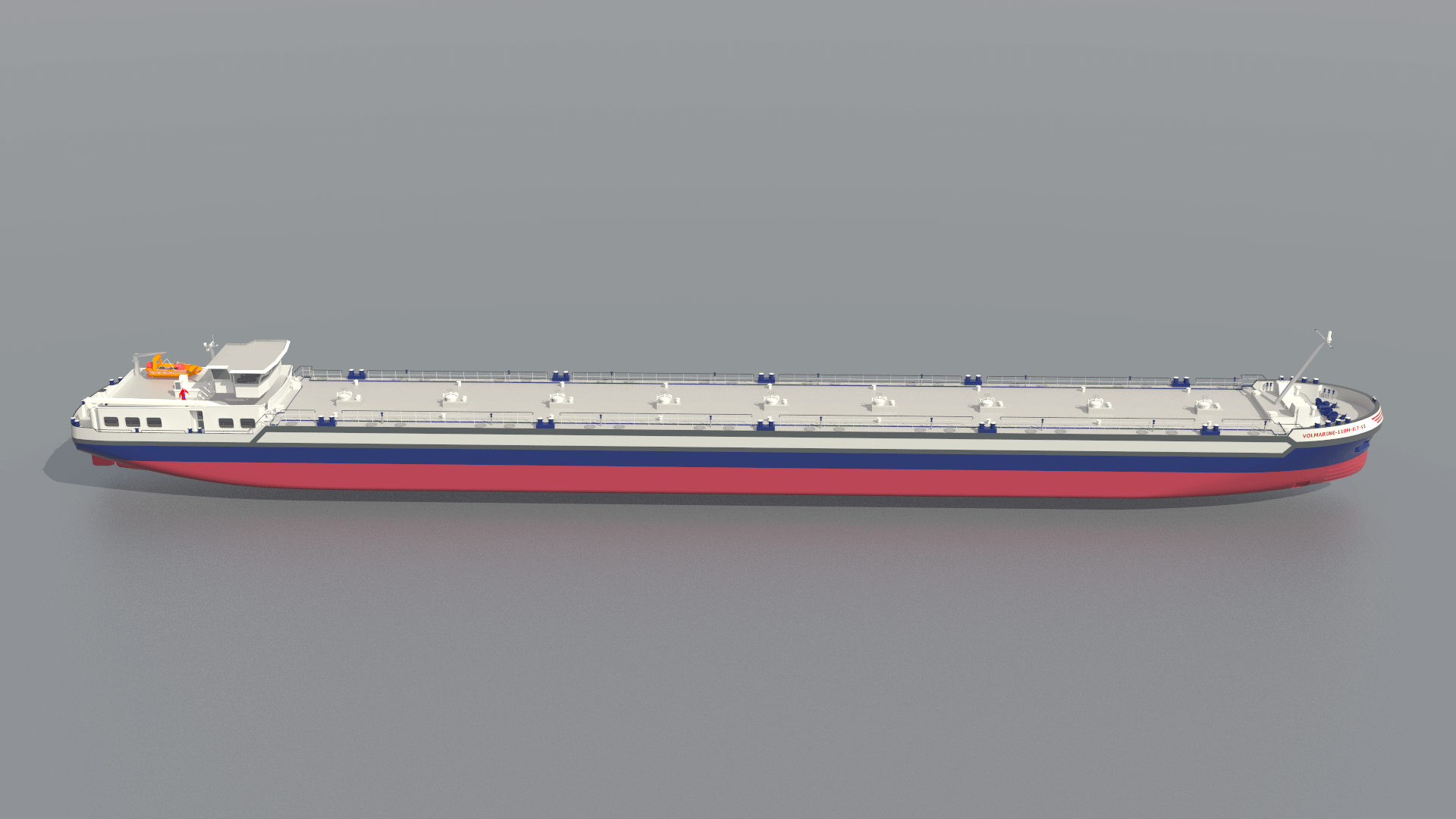

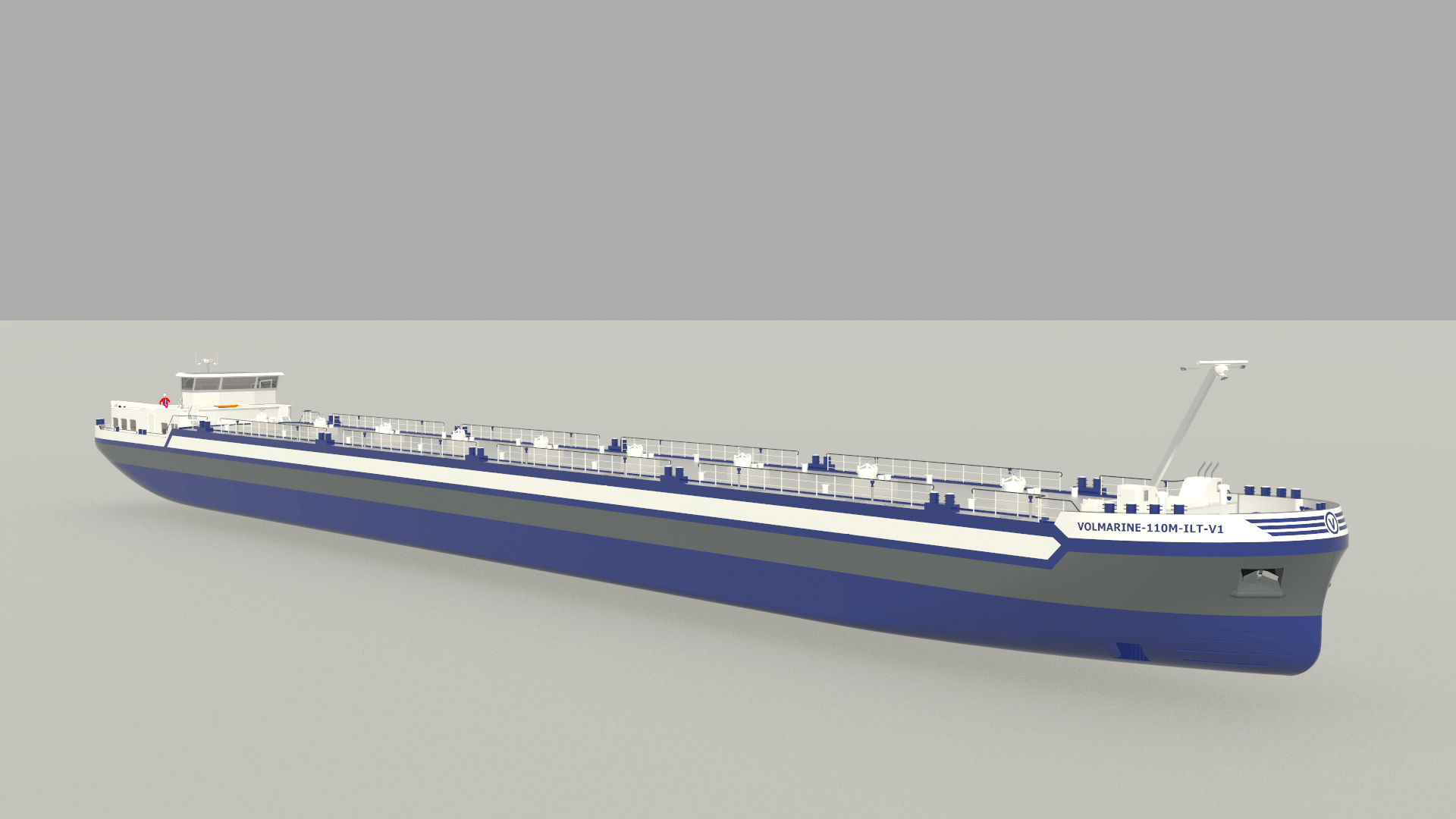

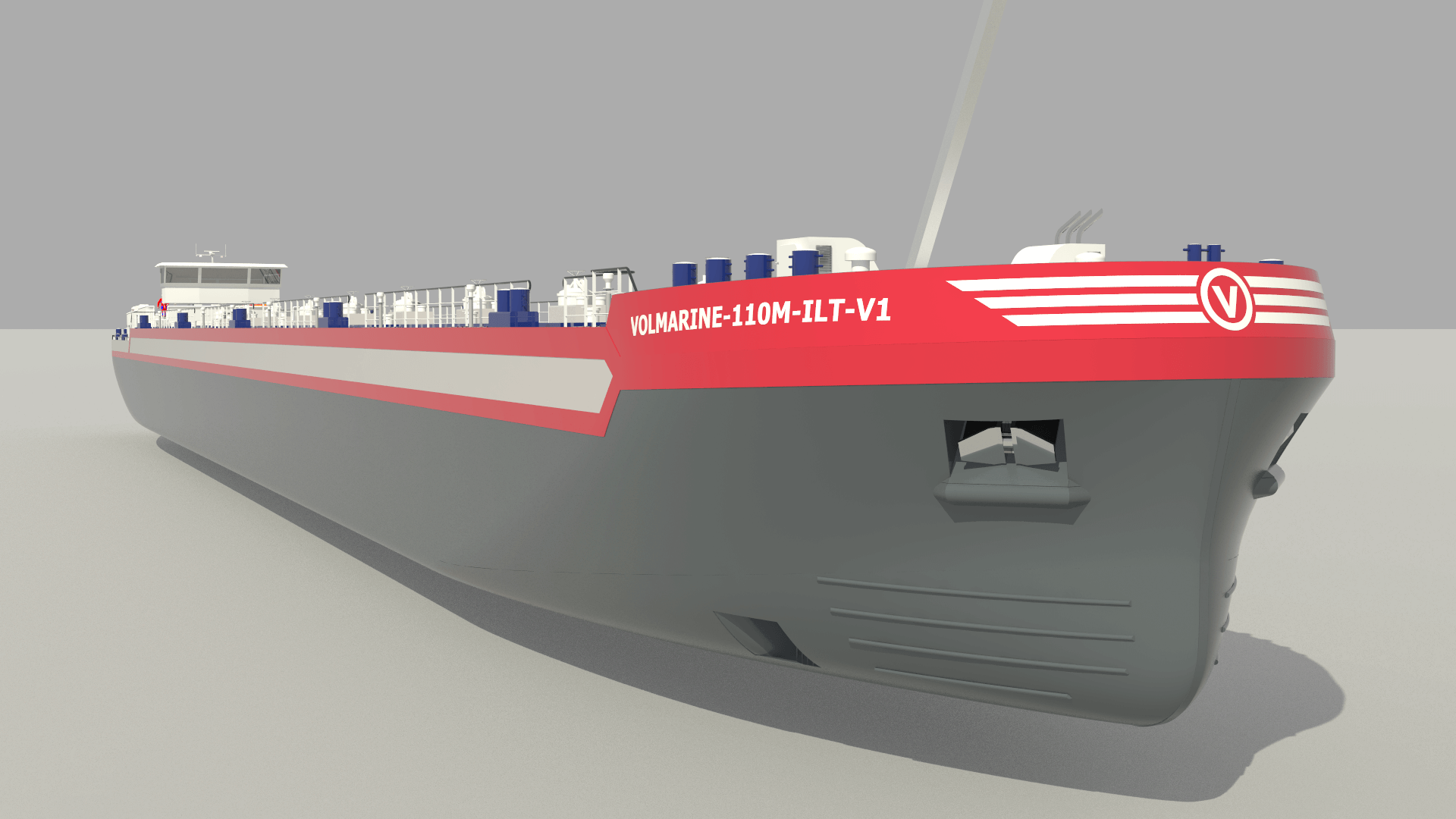

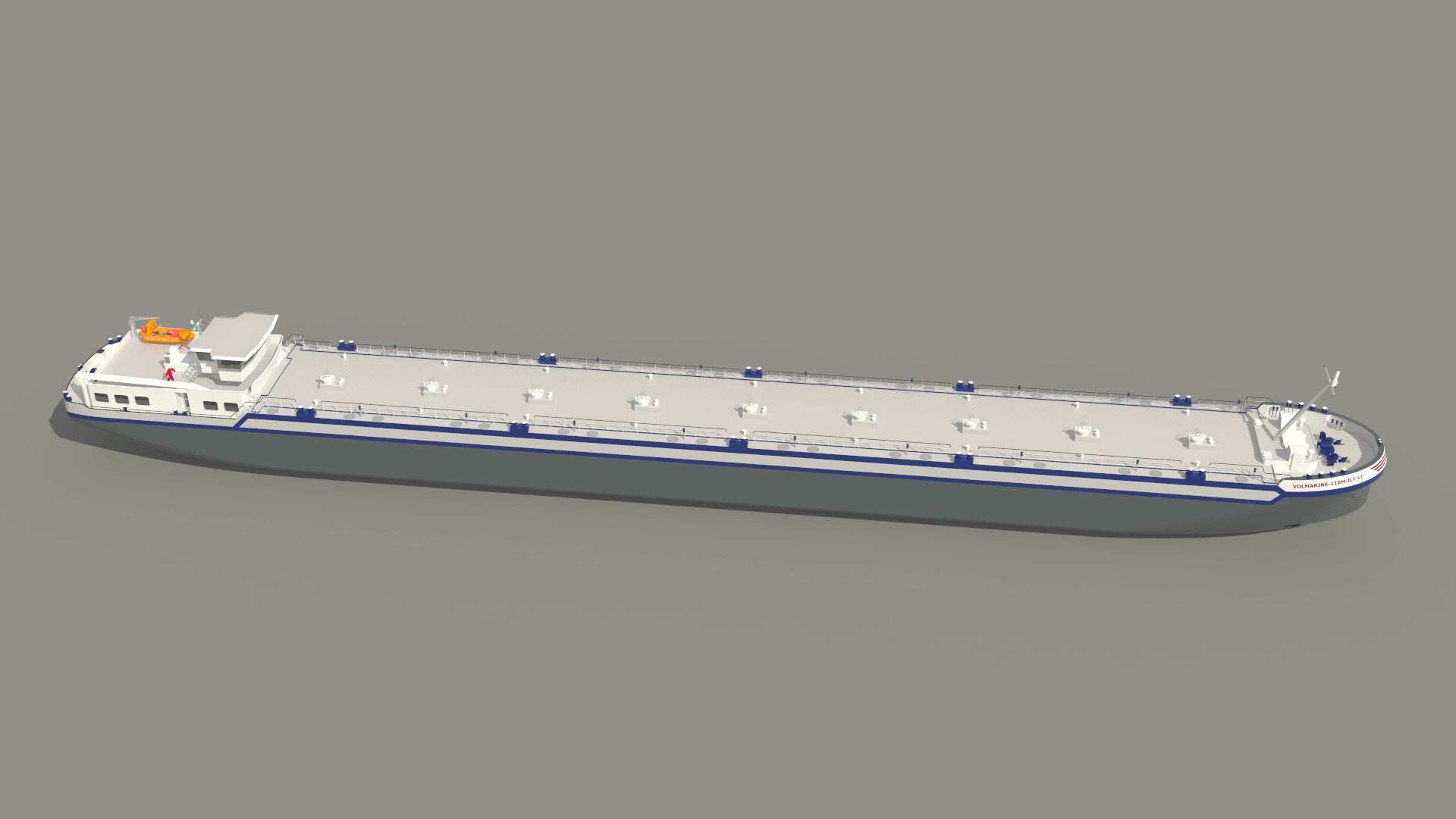

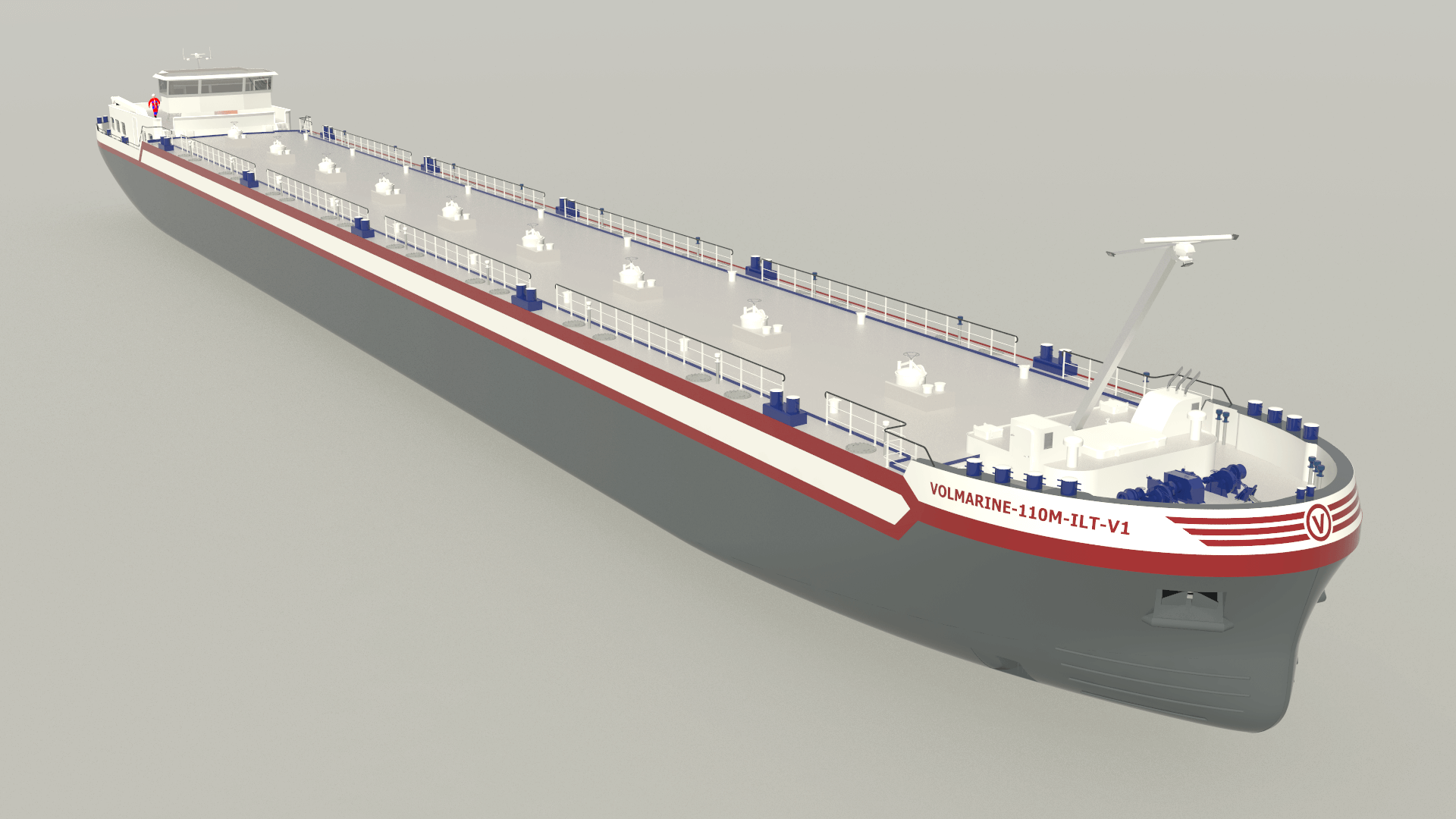

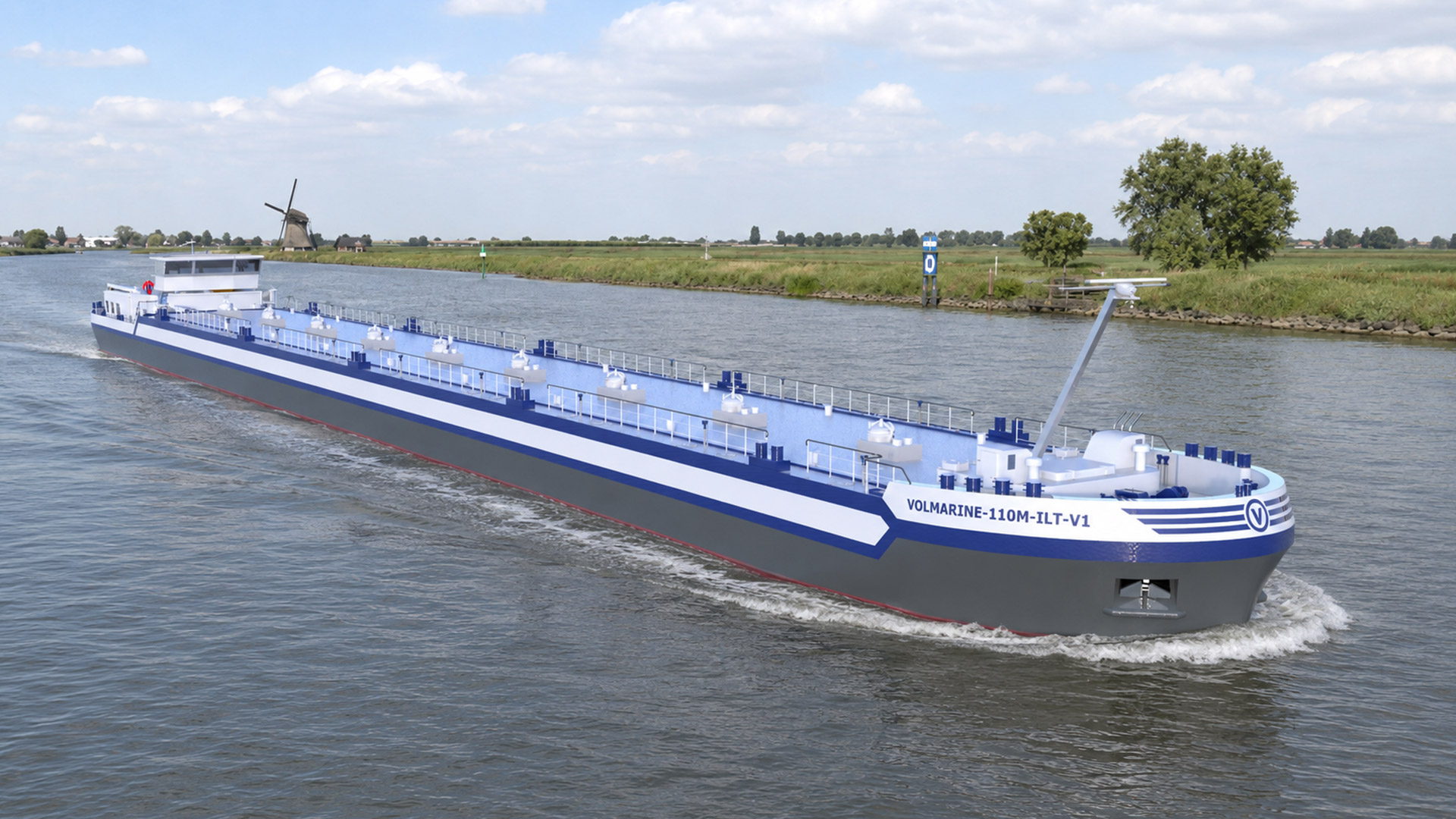

VOLMARINE-110M INLAND TANKER TYPE C - V1

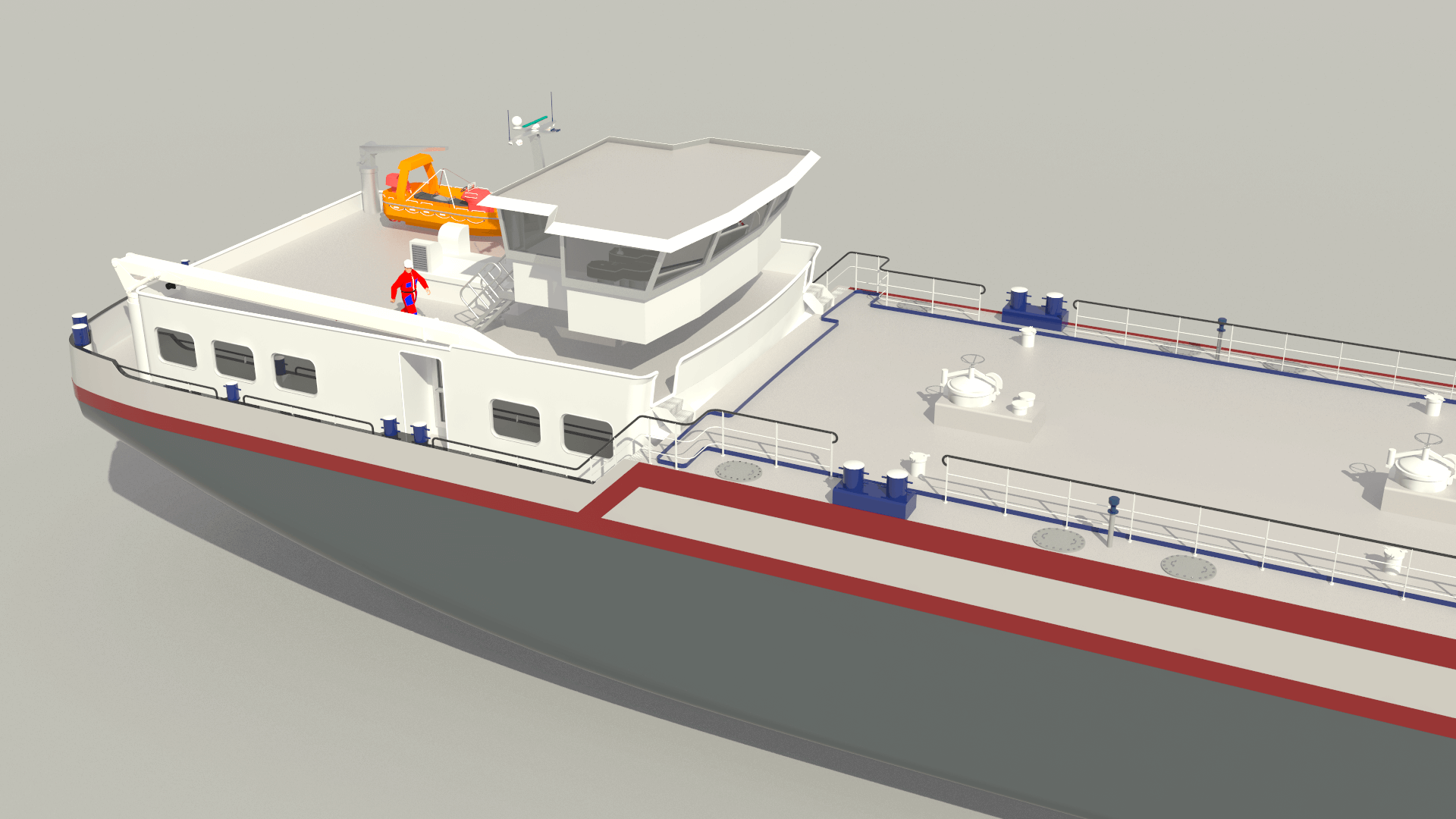

The ship is suitable designed as inland navigation tanker ship - river tanker ship. The inland tanker is designed for transportation of the petroleum products and other chemical liquids, at the inland navigation - river navigation regions. Super structure is designed for 5 crew with a comfortable interior arrangement. Design scope includes concept design, contract design, class approval documents and production engineering for all hull, stability, machinery and piping issues.
MAIN PARTICULARS
| LOA (Length Over All) m | : | 110,00 |
| B (Breadth Moulded) m | : | 10,40 |
| D (Depth Moulded) m | : | 5,85 |
| T (Max Draught) m | : | 4,10 |
| Crew Information | : | 5 Crew |
| Building Material | : | A Grade Marine Steel |
| Cargo Tanks @ %100 Load (m3) | : | 3700 |
CLASS INFORMATION
BUREAU VERITAS
I +HULL .MACHINERY
TANKER TYPE C
INLAND NAVIGATION
